Five Roller Mill

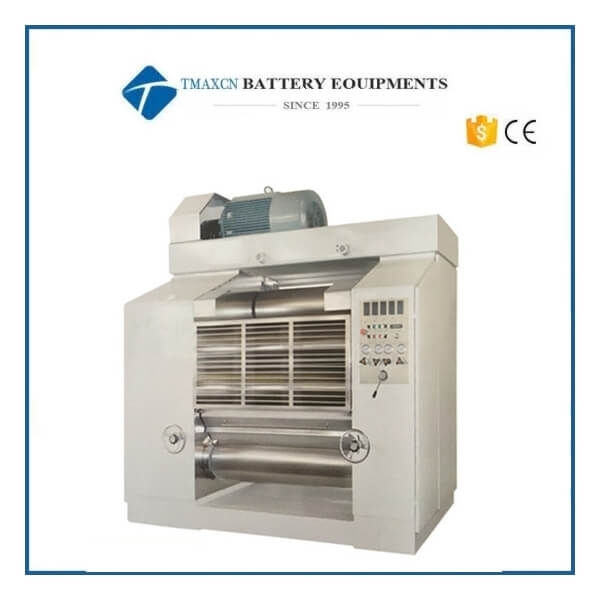

Roller Diameter 400mm, Hydraulic Superfine Five Roller Mill for for Pulp Refining, Dispersion and Grinding

  • Model Number:

    TMAX-FYS
  • Input Power:

    1.5KW
  • Dimension(L*W*H):

    1060*810*1060
  • Net Weight:

    6500KG
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

Roller Diameter 400mm, Hydraulic Superfine Five Roller Mill for for Pulp Refining, Dispersion and Grinding


Overview

Hydraulic five roller mill is new-designed equipment for pulp refining, dispersion and grinding. Material are fed between the first and second roll and discharged from the fifth roll after passing several rolls. Tilting arrangement of the rolls make the machine have more internal space. Hydraulic system of the rolls adopt “floating roller system”which is a quite mature technology of our company. Customized PLC touch screen promotes the automation level of equipment, and also the data, formula can be stored as parameters.

Features

●Advanced hydraulic system ensures the stability of the system.
●Siemens PLC system makes product control more accurate(optional)
●Super cooling system and automatic temperature control(optional)
●Multiple systems of safety monitoring and protection.


Model FYS400
Roller diam(mm) 400
Length of roller working face(mm) 1300
Roller speed(r/min) 400
Power(KW) 55~75
Output(kg/h) 500
Total pressure of hydraulic system T(Mpa) 6.3
Hydraulic power(KW) 2.2
Overall weight(kg) 6500
Boundary dimensionL×W×H(mm) 2800*1400*2500
