Rotary Evaporating Machine

Rotary Evaporating and Distilling System Machine

  • Model Number:

    EQ-RE-100
  • Compliance:

    CE Certified
  • Warranty:

    One Year limited warranty with lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    15 day
  • contact now
Product Details

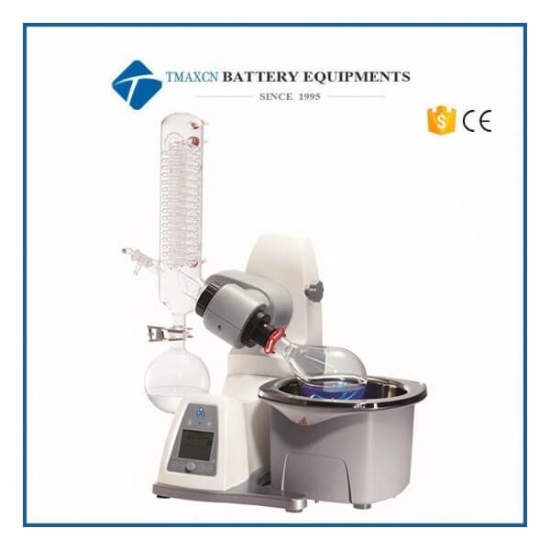

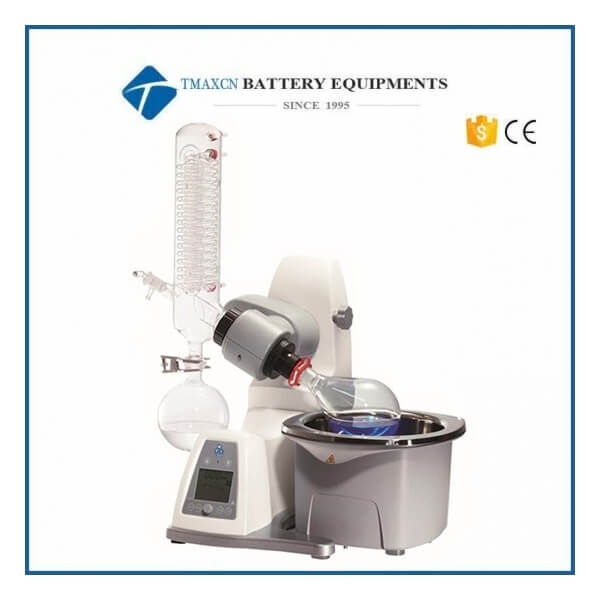

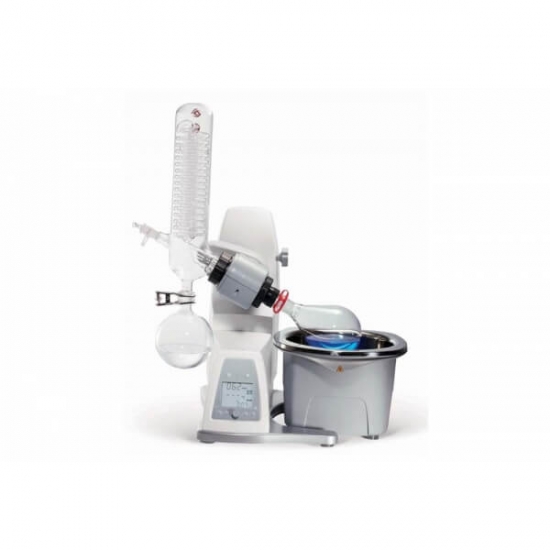

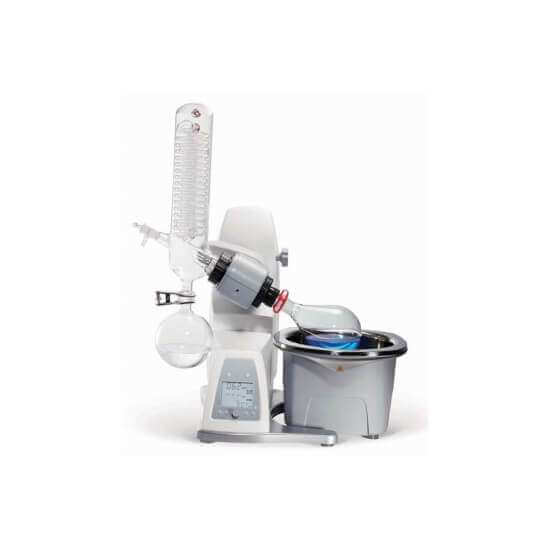

NRTL Certified Rotary Evaporating and Distilling System - EQ-RE-100



EQ-RE-100 is an NRTL certified rotary evaporator for evaporating and distilling. It is an essential tool for the efficient removal of solvents from samples in material and chemical research. It is used for thermal evaporation in a wide range of applications

Features

· Rotating speed and heating temperature Control

· Once out of power, the brushless DC motor can automatically load the evaporating flask to a safety position

· Speed range from 20 to 280 rpm with both of clockwise and counterclockwise directions

· 5 liters heating bath with temperature range from room temperature to 180°C

· Overheating protection at 220°C

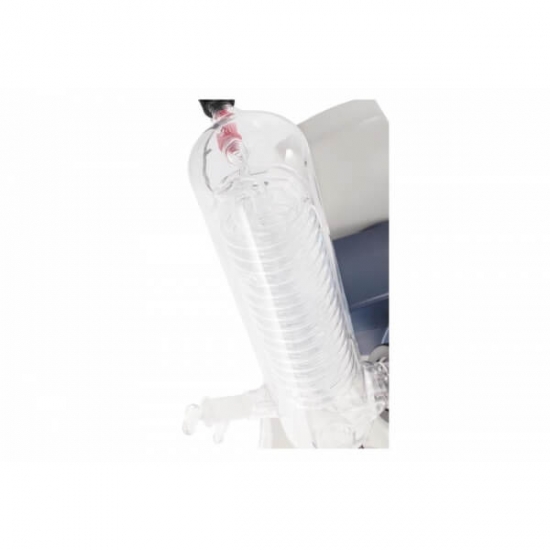

· Vertical or Diagonal condenser with 1500 cm^2 cooling surface

Input Power

· AC 100 - 240V, 50 / 60 Hz

· Maximum power: 1400 W

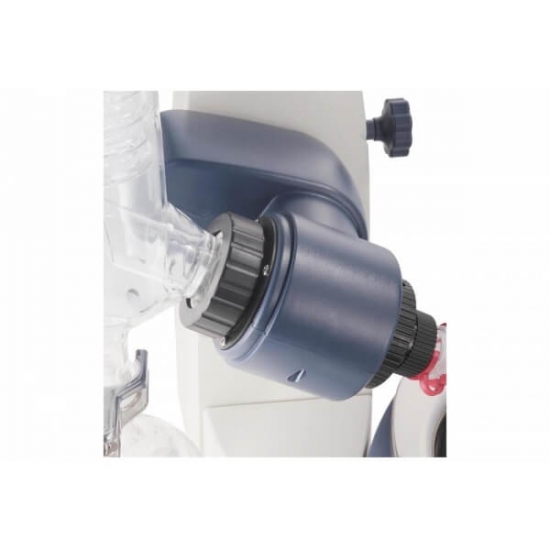

Motor

· Brushless DC motor for rotating and lifting

· Speed Range: 20 - 280 rpm

· Directions: clockwise or counter clockwise adjustable

· Stroke (for lifting): 150 mm

Heating

· Volume of the heating bath: 5 Liters

· Temperature range: RT - 180°C

· Temperature accuracy: 1°C

· Ambient environment temperature: 5 - 40°C

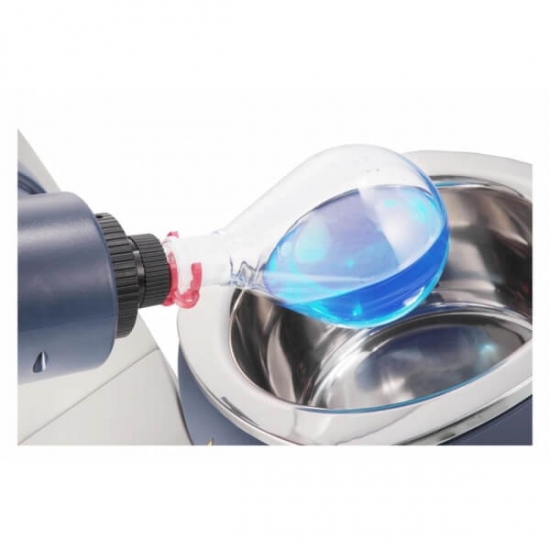

Glassware

· Evaporating flask

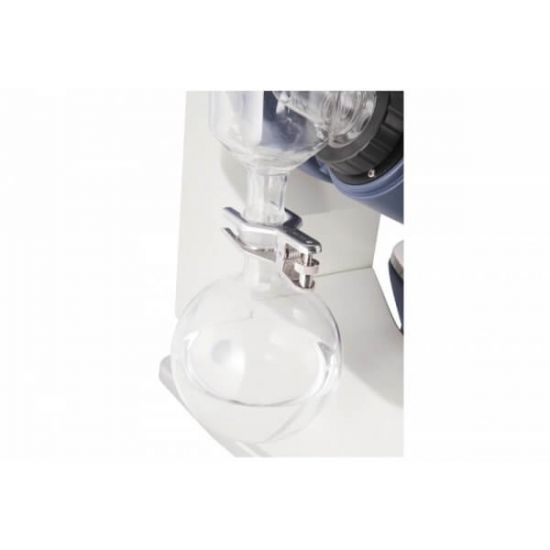

· Standard evaporating receiving flask

· Optional distilling spider with 5 flasks

Timer

· 1 - 999 minutes

Water Chiller (Optional)



Forced Air Cold Recirculating Water Chiller with 9 Liters Tank, 10L / min Flow - EQ-KJ3000

Dimension

· 465 mm L x 457 mm W x 583 mm H

Net Weight

· 15 kg

Warranty

· One year limited warranty with lifetime support

Rotary Evaporating and Distilling System
