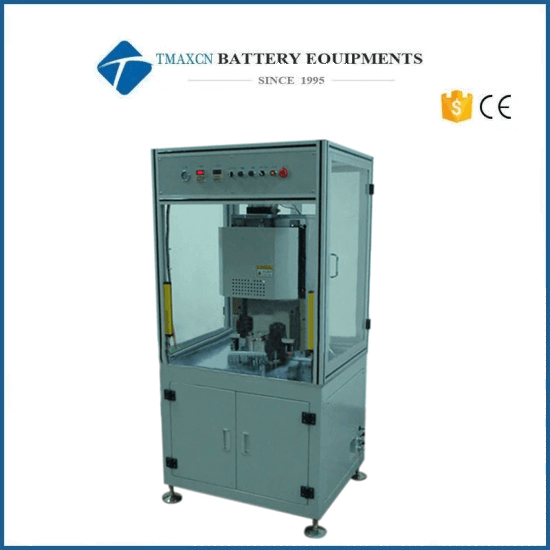

Sealing/Crimping Machine for Supercapacitor Cell Fabrication

Product Description:

It is suitable for automatic spinning, sealing and crimping forming of super capacitor shell, so that the positive cover, sealing rubber ring and insulating ring are clamped in. At the same time, the sealing rubber ring produces compression, which ensures the air tightness of super capacitor.

Main Features:

*The product is clamped and fixed by jacket type, which is stable without shaking, with high concentricity and even spinning sealing;

*High precision linear guideway group is adopted for guiding feed, with high sealing precision and stable dimension;

*The feeding speed of sealing first changes from fast feeding to slow rolling;

*The sealing height of super capacitor can be adjusted to suit different specifications;

*Sealing pressure and holding time can be adjusted;

*Product counting function, convenient to see the processing quantity.

*Sealing, product rotation speed can be adjusted.

*It adopts light curtain electronic protection, which is safe and reliable;

*Geometric design, exquisite and beautiful appearance, easy to operate;

Working Process Description:

Manually put the product into the jacket, press the foot switch, the lower cylinder will tighten the annular jacket, fix the capacitor concentrically, and then the motor will start to drive the sealing spindle frame to rotate, the sealing wheel will rotate, and the upper cylinder will drive the downward pressure of the rotary sealing product, so that the product can be stably sealed under the condition of the jacket center positioning and clamping, and the product can be taken out after completion.
