battery stacker

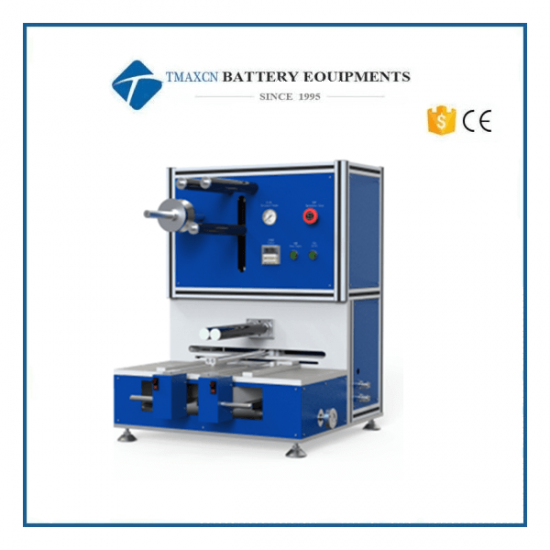

Semi-Auto Battery Electrode Stacker Stacking Machine for Pouch Cell Electrodes

  • Model Number:

    TMAX-TCH-DPA
  • Compliance:

    CE Certified
  • Warranty:

    Two Year Limited Warranty With Lifetime Support
  • Payment:

    L/C D/A D/P T/T Western Union
  • contact now
Product Details



Semi-Auto Electrode Stacking Machine for Pouch Cell Electrodes

It is suitable for the stacking process of battery cells. The positive and negative electrodes and the separator are Z-shaped stacked. It is a device that can be used in the process of lithium-ion battery stacking. The equipment adopts automatic tension control system of separator. The air cylinder drives the separator to move left and right to realize Z-fashion stacking. The cantilever design is easy to operate. Compared with the manual stacking machine, the equipment has the advantages of high stacking efficiency, good stacking uniformity and wide range of applicable battery size. It is an ideal choice for R&D sample production and small batch trial production equipment.


Main features

* the adjustment, operation and maintenance of the machine are simple and easy;

*Suitable for large size range of electrodes;

*Semi automatic stacking and weighing tension control system

*Automatic count and return to zero function

*Automatic maintenance of last used parameter state function after power failure and not in use

*The whole machine is suitable for a wide range of battery sizes

*Foot switch is used to control cylinder action

*The adjustment, operation and maintenance of the machine are simple and easy

*High efficiency, with digital display timer

*Table type, can be placed on the ordinary desktop, the appearance is exquisite and beautiful;


Features

*The adjustment, operation and maintenance of the machine are simple and easy;

*It can be used in a wide range of laminations;

*Semi automatic lamination and balance tension control system

*Automatic counting and zeroing function

*Automatically maintain the last parameter state function after power failure and non use

*The whole machine is suitable for a wide range of battery sizes

*Use foot switch to control cylinder action

*The adjustment, operation and maintenance of the machine are simple and easy

*High efficiency with digital timer

*Table type, can be placed on the ordinary desktop, exquisite and beautiful appearance;



Specifications

Stacking size (including tab length)

Min. L44mm*W44mm

Max. L200mm*W150mm

Max.thickness: 12mm

The applicable electrode size can be customized/enlarged

Coil diameter of separator

Max.220mm

Installation dimensions

L512mm*W820mm*H580mm

Weight

50Kg

Power Supply

220VAC/110VAC,50Hz/60Hz

Power

200W

Air source

0.4~0.6MPa compressed air

Stacking accuracy

≤±0.5mm

Slidable fixture

Two slidable fixtures ensure a compact, tight electrode stacking

Electrode tongs

One electrode tongs are included for easy electrode pick-up

Compliance

CE Certified

Warranty

Two Years limited warranty with lifetime support



pouch cell stacking machine

pouch cell stacking machine

pouch cell stacking machine

 pouch cell stacking machine

pouch cell machine

 prismatic cell making machine



PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.

Semi-auto Pouch Cell Lithium ion Battery Stacking Machine for Electrode/Separator Lamination
