Electrolyte Filling

Single Head Electrolyte Filling Machine

  • Model Number:

    TMAX-JLB-10
  • Input Power:

    400W
  • Dimension(L*W*H):

    250*150*160mm
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty and lifetime support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

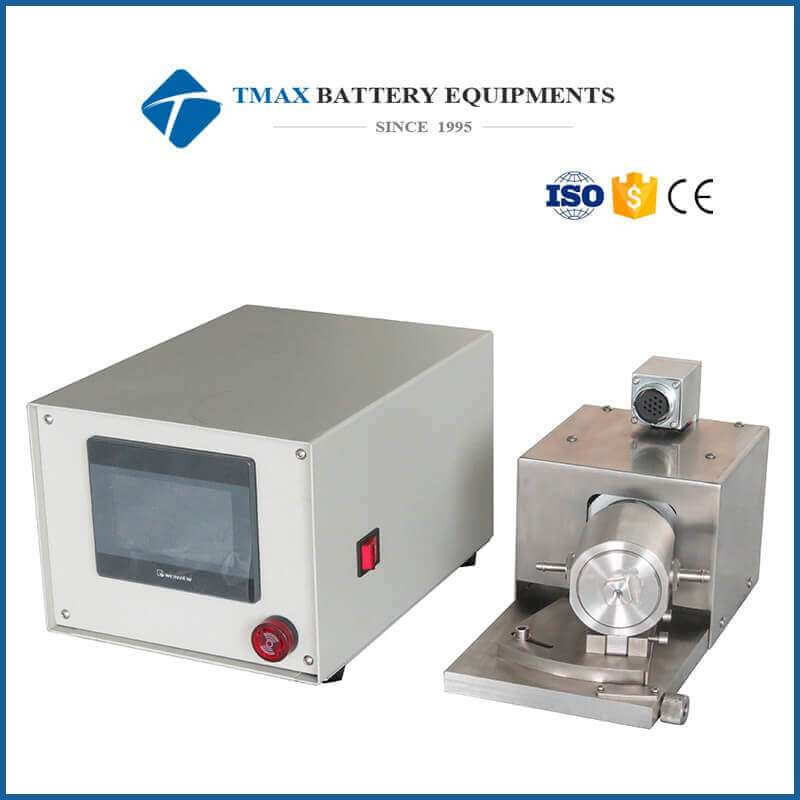

Single Head Electrolyte Filling Machine


TMAX-JLB - 10 Filling pump system includes an electronic control box, a stepper motor, and A high-precision rotating fluid reciprocating pump made by special ceramic. It is used for multiple high precision spraying/lithium battery liquid injection system


SPECIFICATIONS:

Model

Single Head Electrolyte Filling Machine  TMAX-JLB-10

Warranty

Two years limited warranty and lifetime support

Type

Rotating reciprocating positive displacement special ceramic injection pump

Speed

1-800 rpm, According to system configuration and fluid characteristics

For battery industry, 60-200rpm is best

Stroke number

1-9999times, According to system configuration and fluid characteristics

Filling range

0-2.4ml adjustable

Filling accuracy

Within 2‰

Source voltage

AC110V/220V, 50/60HZ Single phase

Power

400W

Dimension (L*W*H)

Controller box : 340*300*145mm

Filling device : 250*160*160mm
