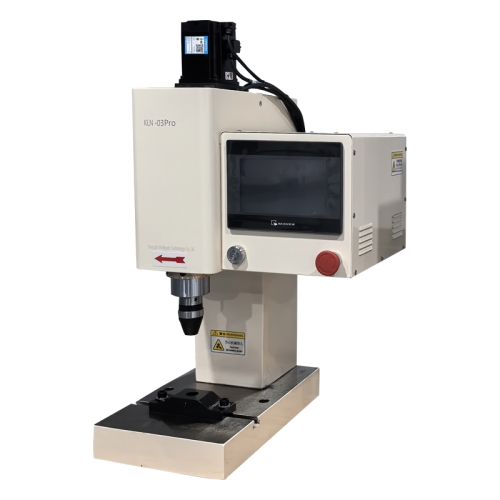

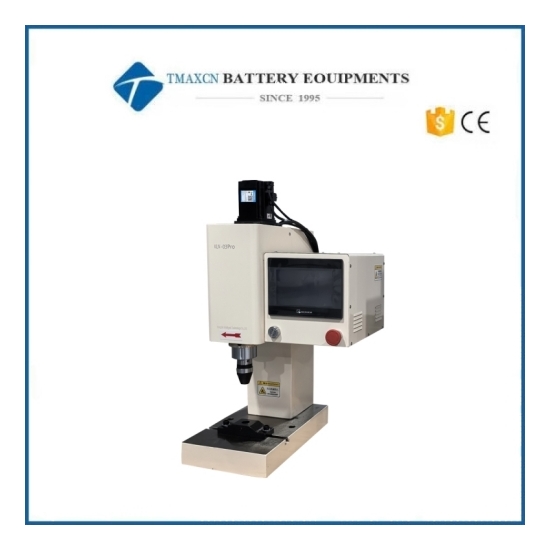

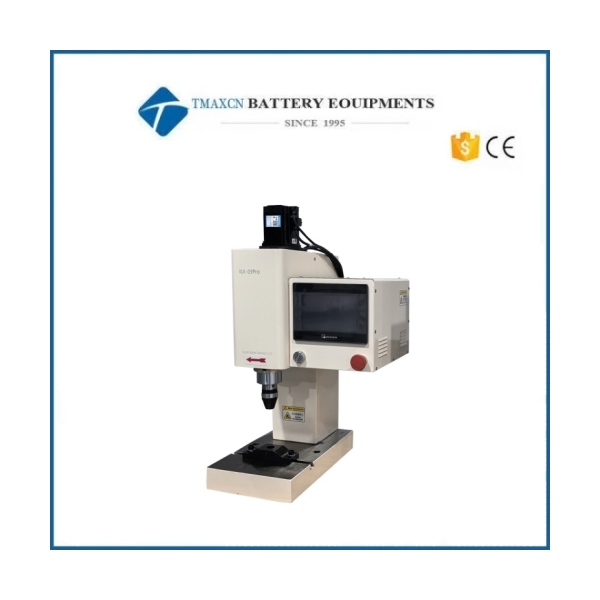

Small High Precision Servo Orbital Riveter Machine For Soft Steel Riveting
Model Number:
TMAX-03ProCompliance:
CE CertifiedWarranty:
1 Year limited warranty with lifetime supportMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 18659217588
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Air Press Orbital Riveting Machine With Foot Pedal For Hardware Parts RivetingNext:
Automatic Electric Pneumatic Bag Flat Riveting Machine
Small High Precision Servo Orbital Riveter Machine For Soft Steel Riveting
Feature
Inovance high-performance servo motor + Inovance or Mitsubishi PLC
TBI high-precision lead screw or optional THK high-precision ground lead screw from Japan
Weilun 7-inch high-definition touch screen
Schneider contactors, push-button switches
Mingwei power supply, Omron photoelectric switch
High-precision and high-flexibility riveting chucks
The self-developed intelligent control system has a repeatability accuracy of up to 0.01mm
Technical parameter
Riveting ability |
Solid φ1-3mm(soft steel) Hollow φ2-5mm(soft steel) |
The length of the rivets |
5-100mm |
Deep throat |
125mm |
Stroke |
Max 80mm |
Power |
0.4KW AC220V/50Hz 0.75KW AC220V/50Hz |
Working pressure |
1800N(180Kgf) |
Dimension |
380*460*750mm |
Working area |
230*250mm |
Net weight |
86kg |
