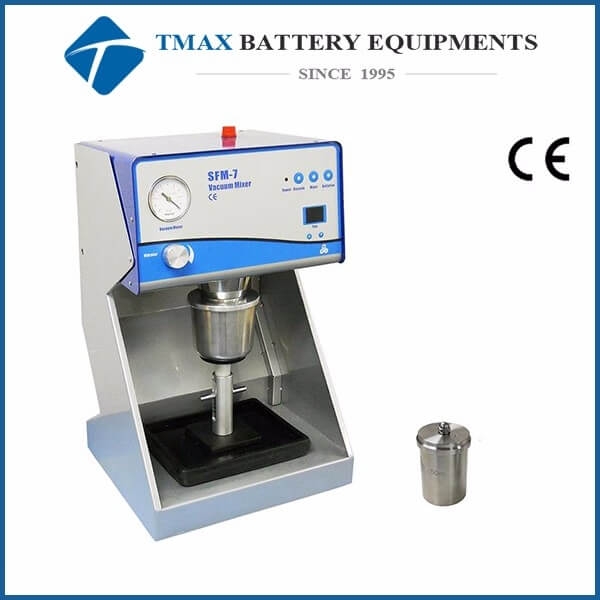

Small Slurry Vacuum Mixer with Two Containers (50 & 200ml)

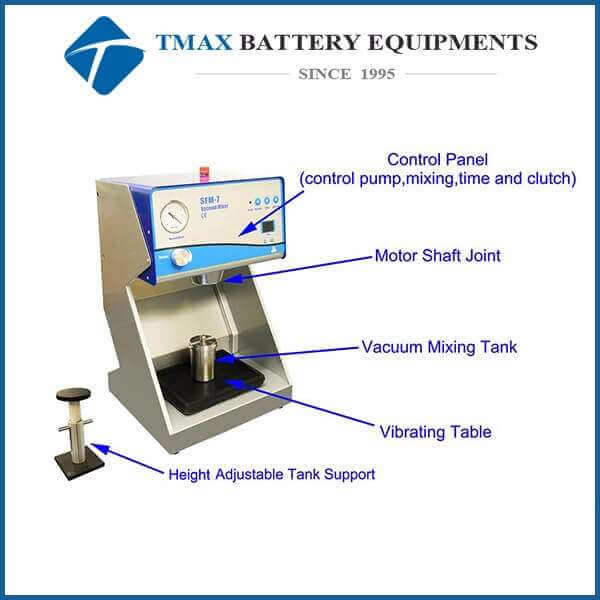

 MSK-SFM-7 is designed to produce coating slurry by mixing small batch of chemical and compound (500 ml Max) under vacuum to remove gas bubble and protect sample from oxidation. It has build-in pump which can vacuum the mixing container to 0.08Mpa(600 torr) and the stepless mixing speed variates from 0 to 320rpm. The vibration plate is located at the bottom to remove gas bubble before vacuum mixing and disperse the slurry after mixing to ensure better uniformity. It is excellent for preparing battery electrode paste and various ceramic materials in research lab.



Main Parameter:

Voltage Input	Single Phase 110VAC or 220VAC ( please choose from product  option bar ) 220V AC Power plug is not included.  Please click here to order the plug)
Power	150W
Rotary Speed	320 rpm

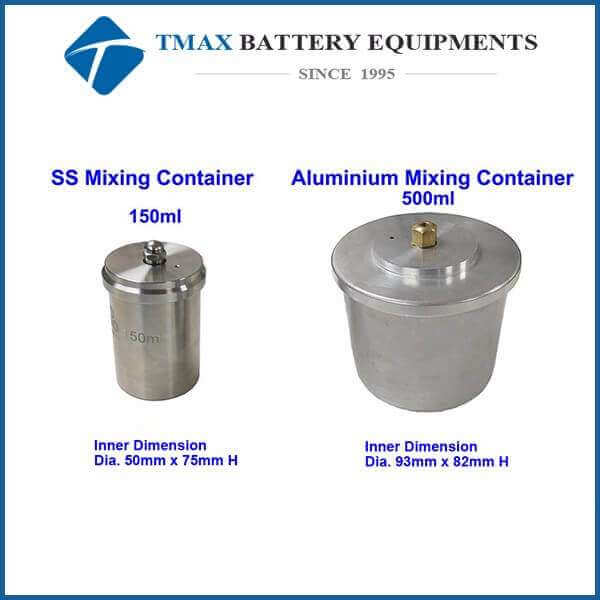

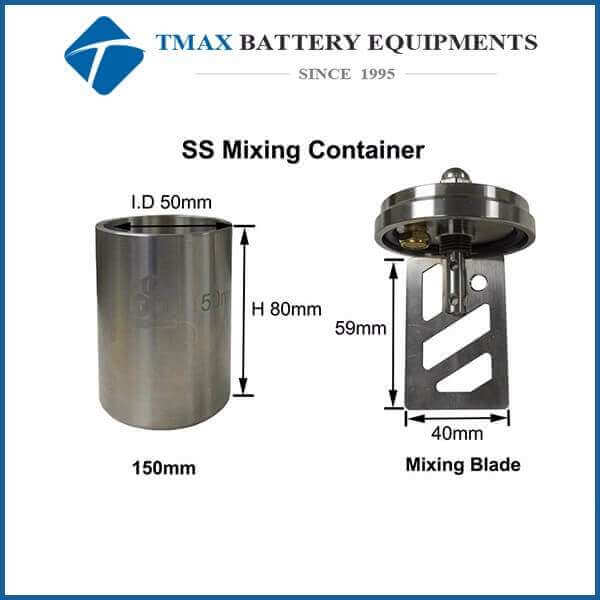

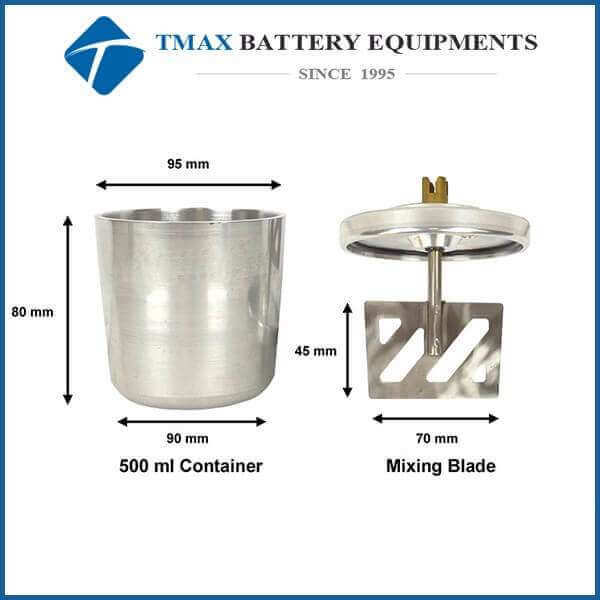

Mixing Container	One 50ml stainless steel and one 200ml aluminum container are included.  (It can be customized)
Vacuum pump	Built in
Vacuum Level	-0.08~0.09 Mpa
Vibration Plate	Vibrating at 1000 Hz
Dimensions	13''L x 12''W x 21''H
Shipping Dimensions	16''L x 15''W x 24''H
Net Weight	70 lbs
Compliance	CE certified
