Vacuum Mixer

Small Vacuum Mixer Machine for Battery R&D

  • Model Number:

    TMAX-ZKJB
  • Compliance:

    CE Certified
  • Warranty:

    One year limited with lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

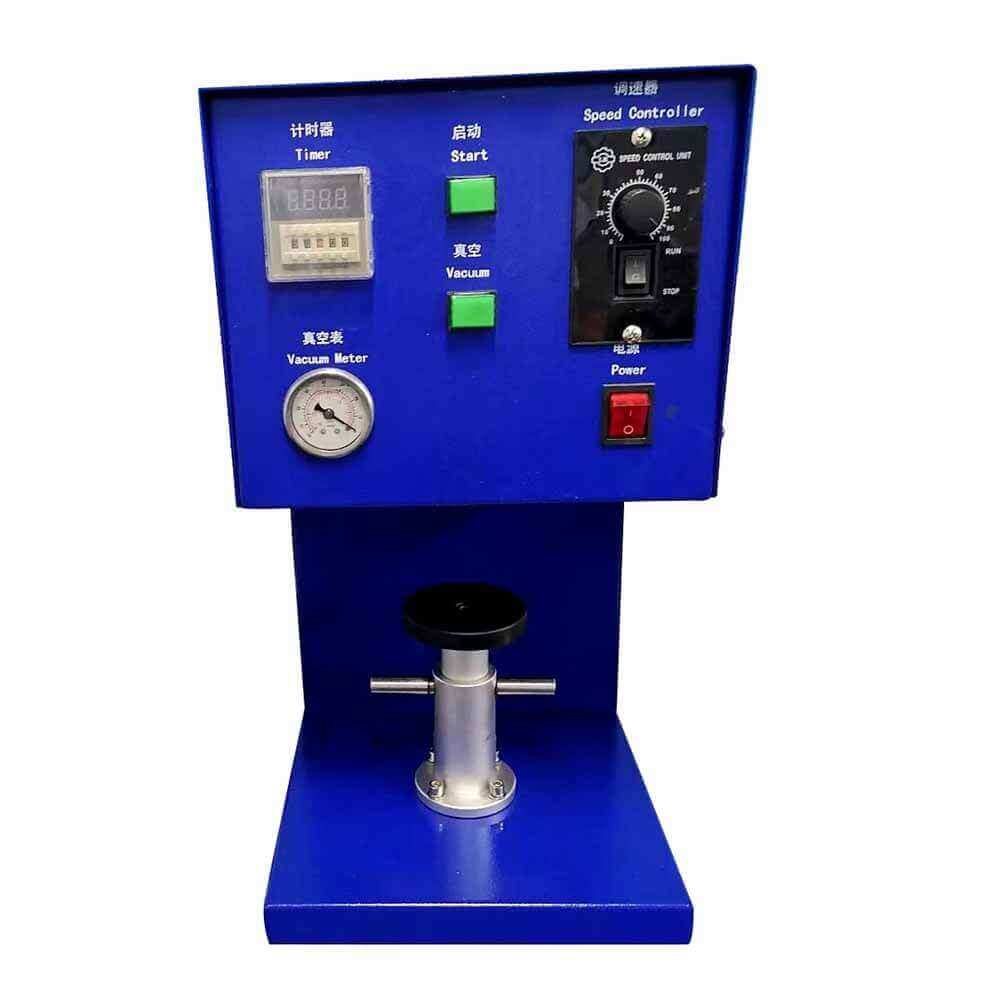

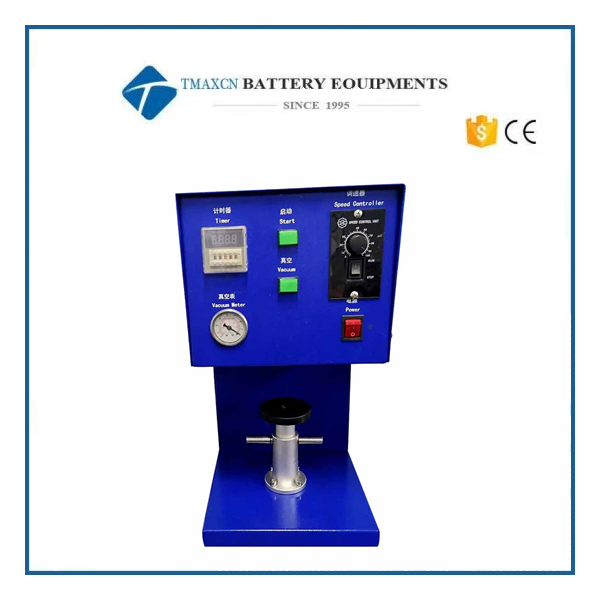

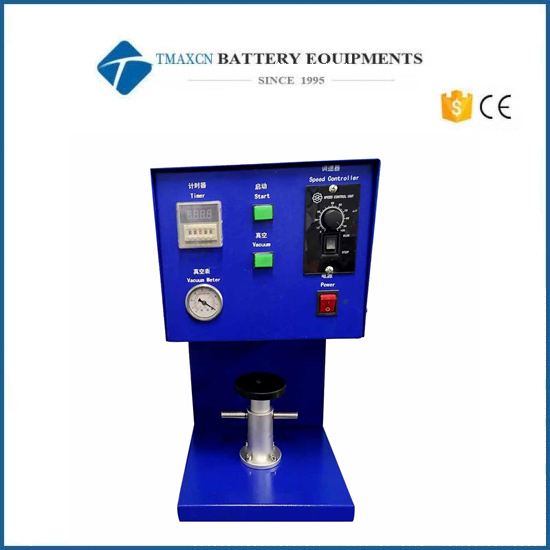

Small Vacuum Mixer Machine for Battery R&D


TMAX-ZKJB is designed to produce coating slurry by mixing the small batch of chemical and compound (500 ml Max., up to 30000mPa.s) under vacuum to remove gas bubble and protect the sample from oxidation. It has a built-in pump which can vacuum the mixing container to -0.08Mpa and the step- less mixing speed @ 320rpm. The vibration plate is located at the bottom to remove gas bubble before vacuum mixing and disperse the slurry after mixing. It is excellent for preparing battery electrode paste and various ceramic materials in a material research lab.

SPECIFICATIONS

Voltage Input

110V or 220V AC Power plug

Power

150W

Rotary Speed

320 rpm

Mixing Container

1. Optional 150ml to 500ml stainless steel containers.
2. Metal filter prevents solid particles from being sucked into the vacuum pump.

Vacuum pump & Vacuum Level

Built-in single stage vacuum pump
Vacuum Level: -0.09~0.095 Mpa

Mixing Time

0~9999 Minutes Adjustable

Dimensions

330 mm x 310 mm × 510 mm

Compliance

CE Certified

Warranty

Two years limited warranty with lifetime technical support

Net Weight

20kg

                    vacuum mixer

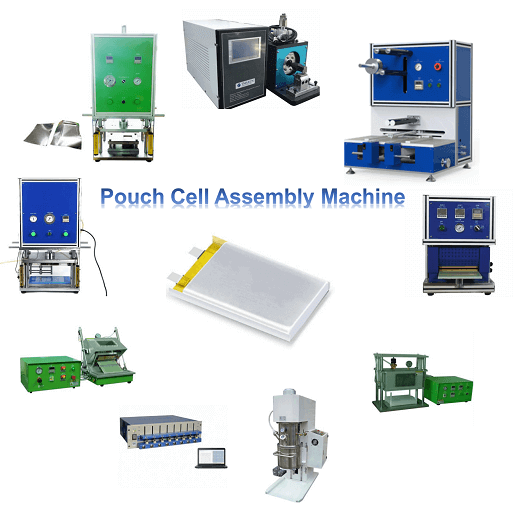

 Pouch Cell Assembly

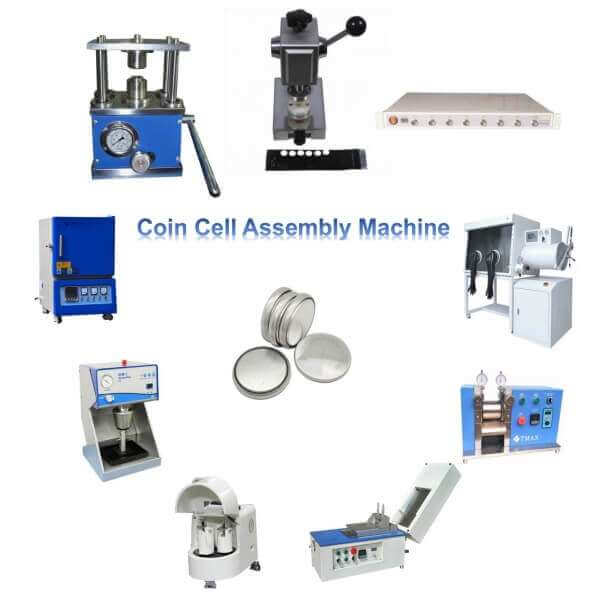

Coin Cell Preparation
