Mechanical Jig Fixture

Solid State Cell or Flow Cell Mechanical Jig Fixture

  • Model Number:

    TMAX-EQ-JIG-1
  • Compliance:

    CE Certified
  • Warranty:

    1 year
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details


Solid State Cell or Flow Cell Mechanical Jig Fixture


EQ-JIG-1 is a mechanical jig  designed for tightening split solid state battery or flow cell for research.


Product parameters

Structure & Material

· The Jis is made of Stainless steel, dimension below ( split cell is not included )

· central space is 90mm L x 70 mm x 150 mm H

· Customized size is available upon request with min. 4 sets order

·   flow cell fixture


Max. Working Pressure

· 100 Mpa

· Please use the torque wrench to tighten screw and control max. pressure

·

Application Note

· You can place any MTI split cell for SSB ( < 65x80 mm area x 90 mm H ) into the center of jig, and tighten screw by Manual torque wrench 

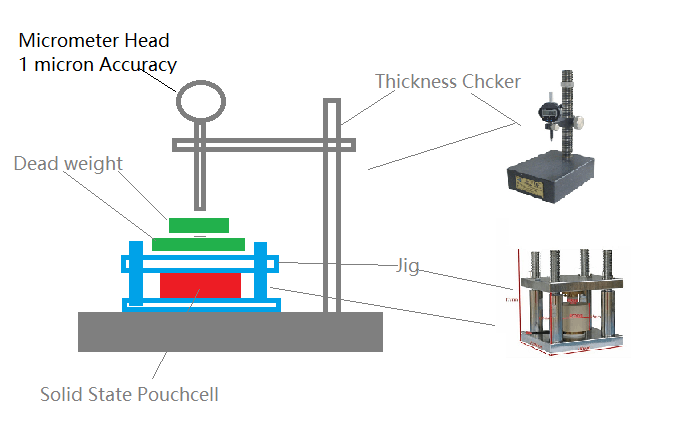

· You may use the fixture to measure solid state battery 's thermal expansion during charging and discharging combining a precision thickness checker (  click PIC 1 )

· You may use the device to measure SSB max. expansion pressure by adding dead weight pieces ( as PIC 2 ), e.g adding dead weight until SSB no expansion

· If you have enough budget , may consider using a gas compressive press instead the manual jig. ( PIC 3)

·




flow cell fixture

flow cell fixture
