Stainless Steel Centrifugal Spray Dryer Suitable for the Drying of Heat Sensitive Substances

Product Description:

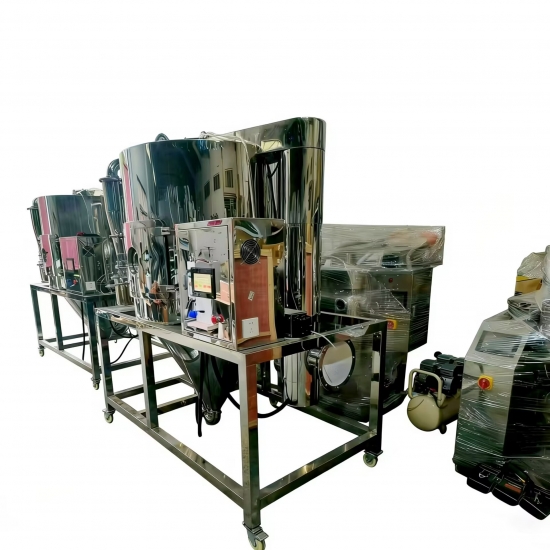

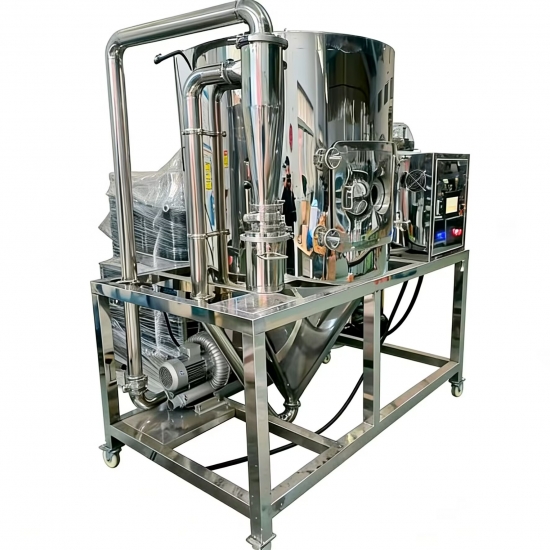

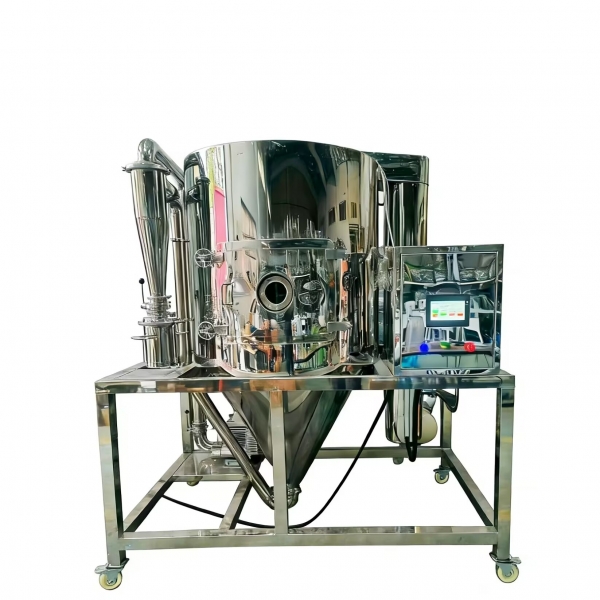

OLT-SD05L stainless steel spray dryer (centrifugal spray dryer / high-speed centrifugal spray dryer) is mainly used in universities, research institutes and food and pharmaceutical industry laboratories to produce micro-particle powder, for all solutions such as emulsions, suspensions It has broad-spectrum applicability and is suitable for the drying of heat sensitive substances such as biological products, biological pesticides, enzyme preparations, etc., because the materials sprayed are only subjected to high temperature when sprayed into mist-sized particles, so they are only heated instantly. It can keep these active materials to maintain their active ingredients intact after drying.

Technical Parameter:

Product Advantage:

● Original imported centrifugal nozzle, high efficiency (optional two-fluid nozzle, can also be customized into two-in-one centrifugal and two-fluid)

● The feed amount can be adjusted by the feed peristaltic pump, and the minimum sample volume can reach 50ml.

● Dry powder after drying, the particle size is relatively uniform, and more than 95% of the dry powder is in the same particle size range.

●The drying speed is rapid, and 95-98% of water can be evaporated in an instant. It takes more than ten seconds to complete the drying time.

●Co-current spray drying is adopted. During the drying process, the temperature of the droplets is not high and the product quality is good.

●Depending on the physical properties of the material, it can be dried with hot air or with cold air.

● Since the drying process is completed in an instant, the particles of the product can basically maintain the spherical shape of the droplets, and the product has good dispersibility, fluidity and solubility.

● Simplified production process and convenient operation and control. Spray drying is usually used for solvents with a moisture content of 40-60%. Special materials can be dried into a powdered product at the same time even with a moisture content of up to 90%.

● In order to prevent the material from being polluted and prolong the life of the equipment, all parts in contact with the material are made of stainless steel of 1Cr18Ni9Ti.

●The whole body is made of mirror-type stainless steel to prevent deformation and corrosion of the sticky wall.

● With sample observation window, it is safe and intuitive.

Product Application:

1,Food, pharmaceuticals, milk powder, egg yolk, soy sauce, coffee, starch, protein, hormones, serum, antibiotics, enzymes, spices, extracts, organic chemistry.

2, Wax, dyes, detergents, surfactants, pesticides, preservatives, synthetic resins, pigments and other fields of inorganic chemistry.

3, Ferrite, ceramics, powder for copying, magnetic materials, metal powders, photosensitive materials, various industrial chemicals, sample waste liquids, and other fuel cell development fields for automobiles and ships.
