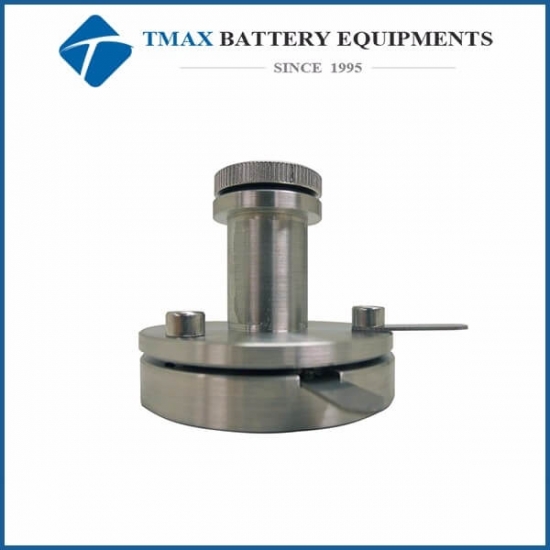

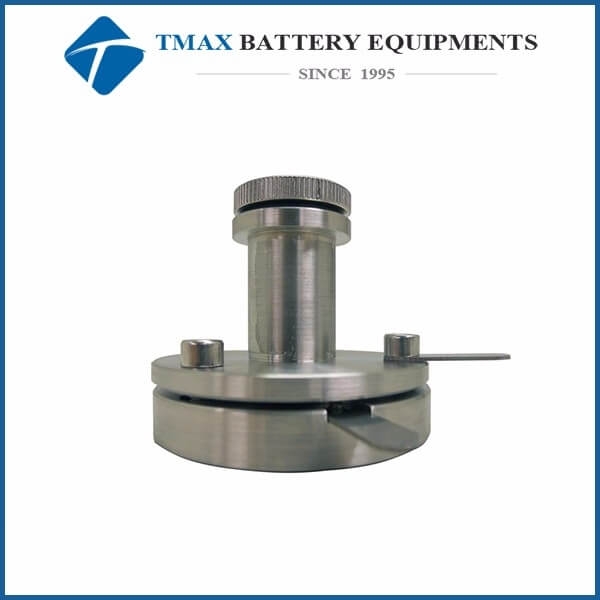

Split Test Cell

Stainless Steel Two-Electrode Split Test Cell for Coin Cell R&D

  • Model Number:

  • Net Weight:

  • MOQ:

  • Delivery Time:

    3-7 day
  • contact now
Product Details

Stainless Steel Two-Electrode Split Test Cell for Coin Cell Battery

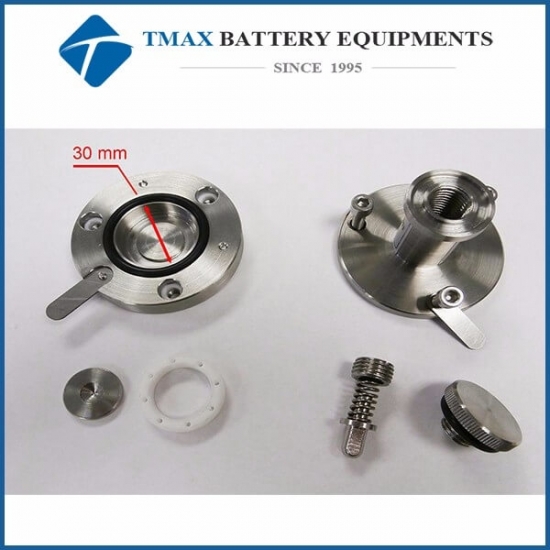

Split Test Cell is designed for R&D of rechargeable battery material. It can accept optional 10,12, 15, 19, 20, 24 mm diameter electrode and separator (please kindly choose the size from above check box) and test electrode easy and quick.

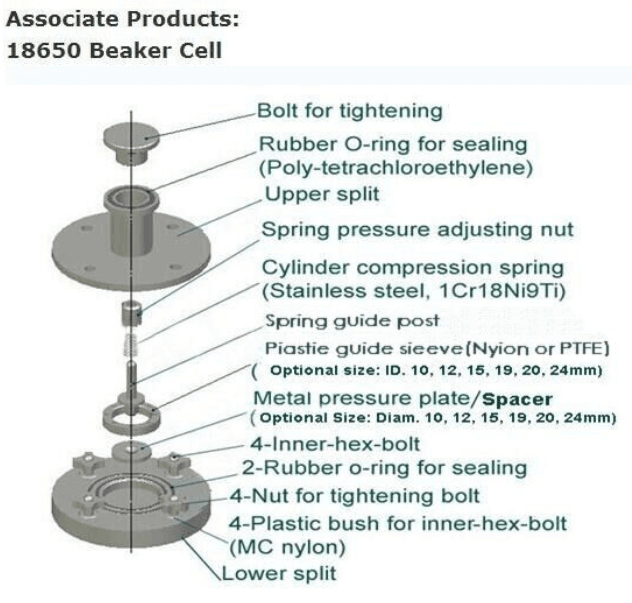

·        Full stainless steel structure

·        Optional 10, 12, 15, 19, 20, 24 mm diameter insert

·        A 6mm height spacer inside to press down the electrode for preventing the electrode from curling

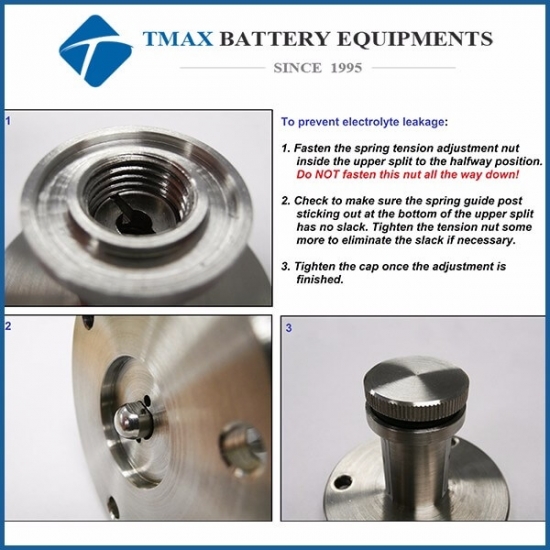

·        Sealed by electrolyte corrosive-proof PTFE O-rings

·        Electrolyte corrosive-proof PTFE Guide Sleeve up to 250 ºC

·        Easy to separate cell after test

·        Small enough to be put in and take out from glove box

·        Max. Cell thickness (cathode+separator+anode): 6mm

Same functionality to "Swagelok Coin Cell" but more size option and proper dimension for glove box.


                  Split Test Cell

                  Split Test Cell


                  Battery Test Device




1.  We supply machines with battery technology support.

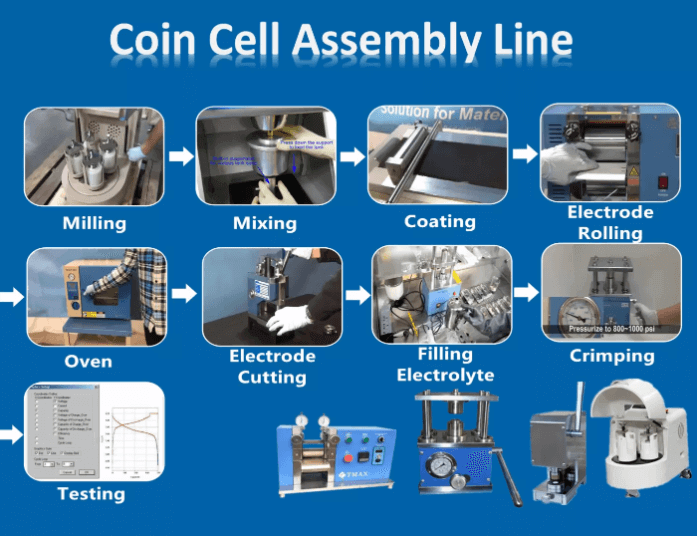

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.

Battery Test Device

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
