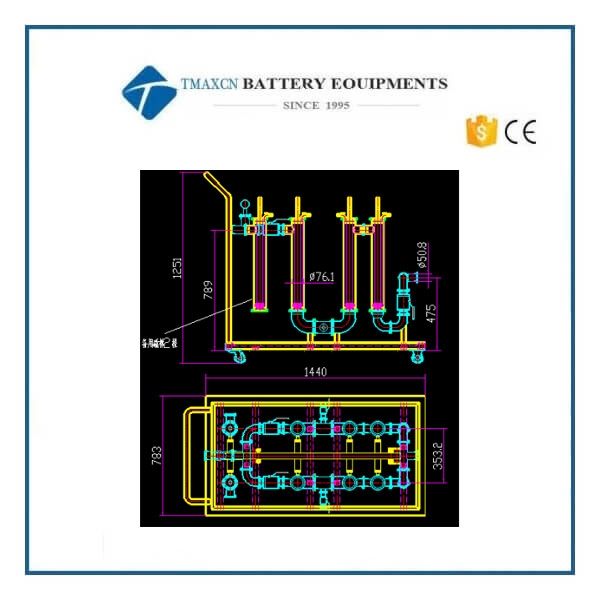

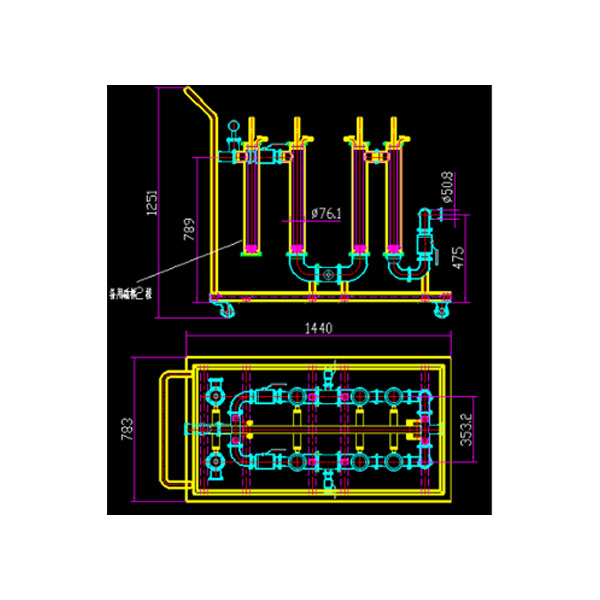

Static Iron Remover&Filter

Static Iron Remover

l Model: HG-J-SC3

l Quantity: 2 sets

l Flow Rate: 40–50 L/min

l Each Set Includes:

¢ 2" diaphragm pump

¢ Two 1.5-meter 2" quick-connect UPE hoses

¢ 120–150 mesh stainless steel filter (optional single-stage or multi-stage series connection)

¢ Oil-free pressure sensor with data output

¢ Panel-recessed mobile trolley design

¢ 12000 Gauss magnetic rods (optional single or multiple rods in series)

¢ Process: Filtration by iron removal (available in single- or dual-pipeline configuration)

¢ Integrated control system

Static Iron Removal Filter

l Model: HG-J-SC3G2

l Quantity: 2 sets

l Flow Rate: 15–20 L/min

l Each Set Includes:

¢ 1" diaphragm pump

¢ Two 1.5-meter 1" quick-connect UPE hoses

¢ Oil-free pressure sensor with data output

¢ Panel-recessed mobile trolley design

¢ 120–150 mesh stainless steel filter (optional single-stage or multi-stage series connection)

¢ 12000 Gauss magnetic rods (optional single or multiple rods in series)

¢ Process: Filtration by iron removal

¢ Integrated control system
