Stitching Machine

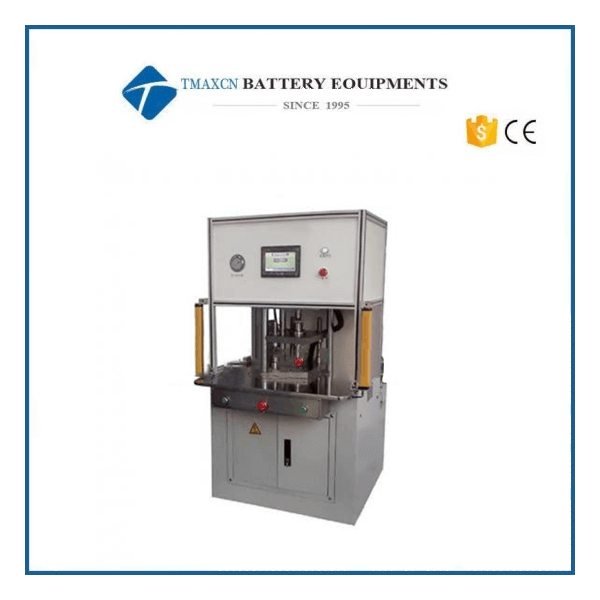

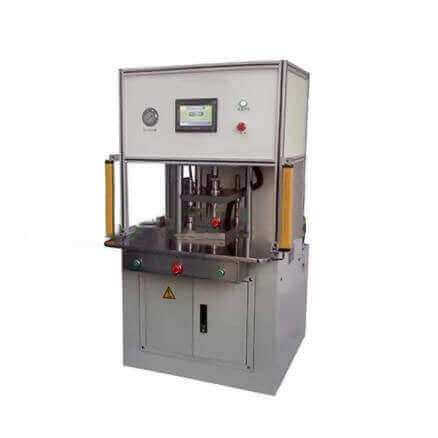

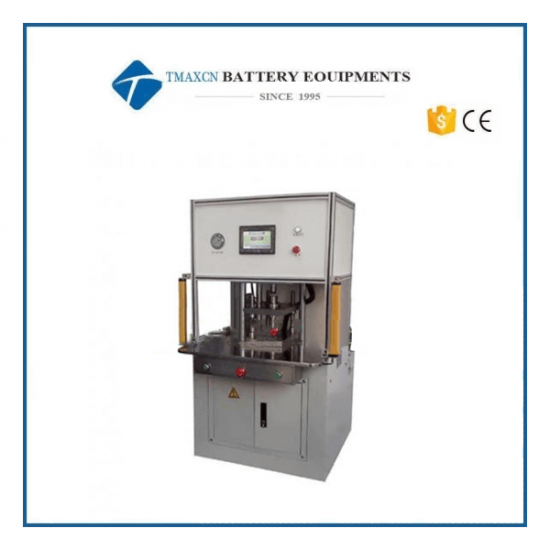

Stitching Machine for the Riveting Operation of Cell and end Cover of Capacitor

  • Model Number:

    TMAX-MJ35
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details


Stitching Machine for the Riveting Operation of Cell and end Cover of Capacitor


Functional overview

The device is suitable for the riveting operation of cell and end cover of capacitor.


Functional characteristics

1.With manual and automatic operation modes.

2.The size and height of cell can be adjusted ranaomly by jigs, with convenient, safe and reliable operation.

3.Adopt disc-type rotation riveting, with accurate workstation feeding.

4.Adopt hydraulic system as the riveting power source, with big force and adjustable pressure.

5.Adopt the imported PLC program control. Touch screen displays operation, with high automation achievable.


Technical parameters

The outer diameter of the capacitor batteries

φ30~35mm,

Pitch:l0mm, Height:40~55mm

Air source

0.5~0.7MPa

Power soure

2kW

Overall dimensions(LxWxH)

1800 x 1600 x 1600mm

Weight

600kg
