Case Shaping Machine

Supercapacitor Case Shaping Machine For Cylindrical Ultracapacitor

  • Model Number:

    TMAX-YZ60-2GZ
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    60 day
  • contact now
Product Details

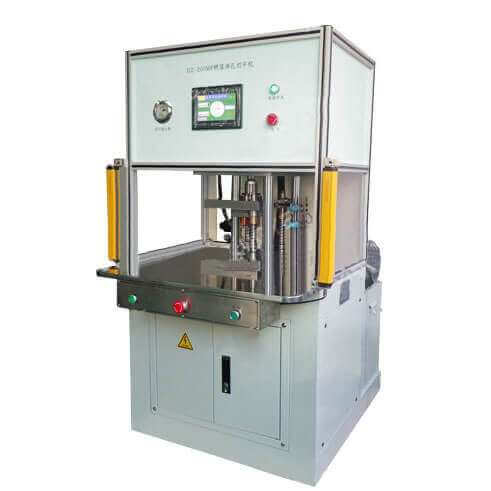

Case Shaping Machine For Cylindrical Supercapacitor



1. Functional overview

Suitable for case shaping of cylindrical supercapacitor.



2. Functional characteristics

1.PLC control, touch screen operation interface, easy to enter each function.

2.Parameters in the process of production can be recorded in data memory.

3.Provide manual and automatic operation modes.



3. Technical parameters

Power source

AC220V/50Hz

Air source

0.4~0.7MPa

Shell specification

φ60mm x (100~150)mm

Pressure holding time

1s~10s

Nominal pressure

30kN

Positioning accuracy(H)

±0.02mm

Shaping height error(H)

±0.05mm

Overall dimensions (LxWxH)

1100x1200x2100mm

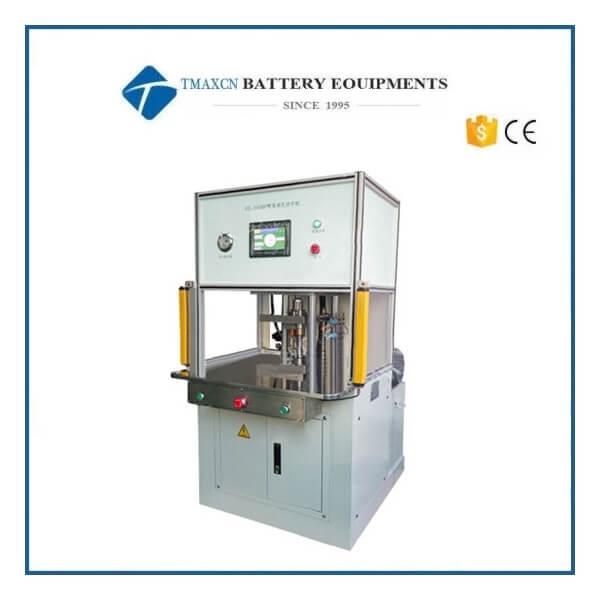

Supercapacitor Case Shaping Machine






1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


laboratory muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
