Supercapacitor Rotary Sealing Machine

Supercapacitor Rotary Sealing Machine

Application

The Supercapacitor Rotary Sealing Machine is engineered for the automatic rotary sealing and edge-curling of cylindrical battery cases and supercapacitor housings.

Key Features

- **Secure Clamping with Sleeve Fixation**:

Utilizes a clamp-sleeve mechanism to firmly hold products in place, reducing vibration and ensuring high concentricity, which guarantees consistent and uniform rotary sealing results.

- **High-Precision Spindle Guidance**:

Incorporates a precision spindle system that delivers accurate and stable sealing dimensions, maintaining strict tolerances during operation.

- **Advanced Automated Control**:

Equipped with PLC control and an HMI interface, enabling smooth and efficient automation of the sealing process.

- **Enhanced Safety Measures**:

Fitted with a safety light curtain and protective enclosure to ensure safe operation and prevent potential hazards.

- **Compact and User-Friendly Design**:

Boasts a space-saving, visually appealing structure that facilitates easy operation and seamless integration into existing production lines.

Technical Specifications

Parameter	Specification
Applicable Products	Cylindrical batteries, supercapacitors (customizable per request)
Air Supply	0.5–0.7 MPa (adjustable)
Power Supply	220 V / 50 Hz
Power Consumption	1 kW
Dimensions	L 900 × W 900 × H 1700 mm
Weight	Approx. 600 kg

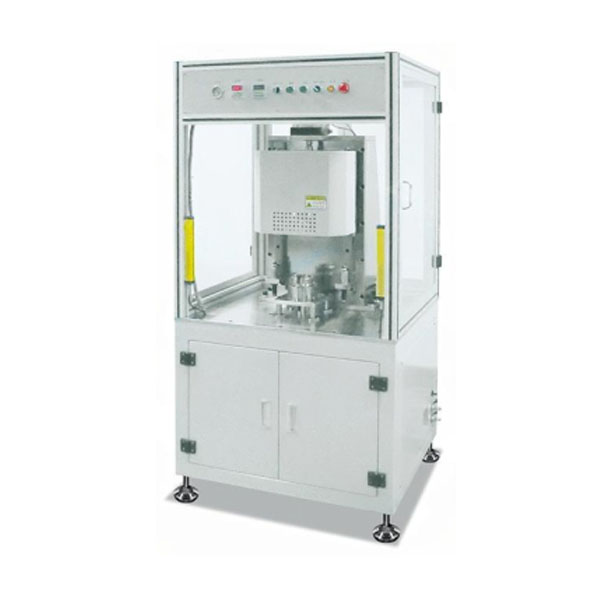

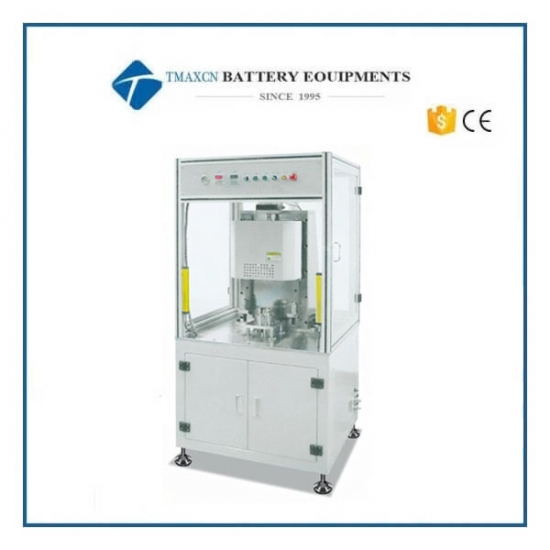

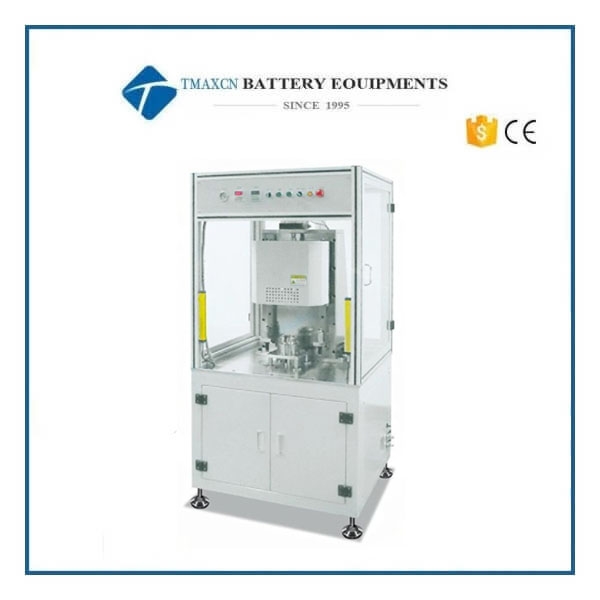

Product Images
