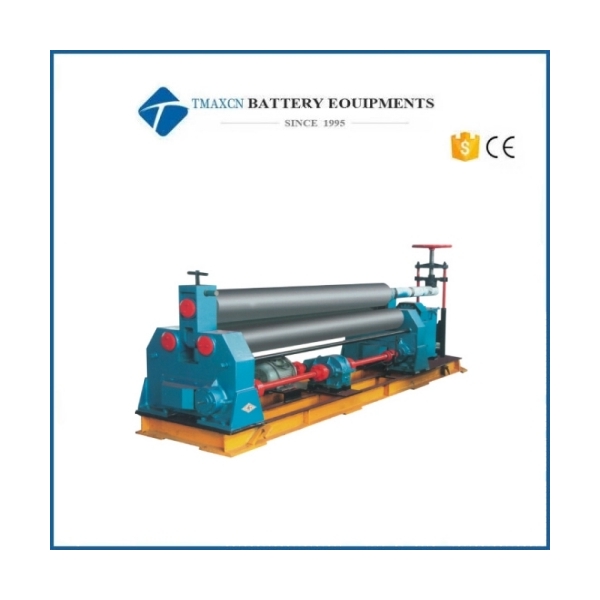

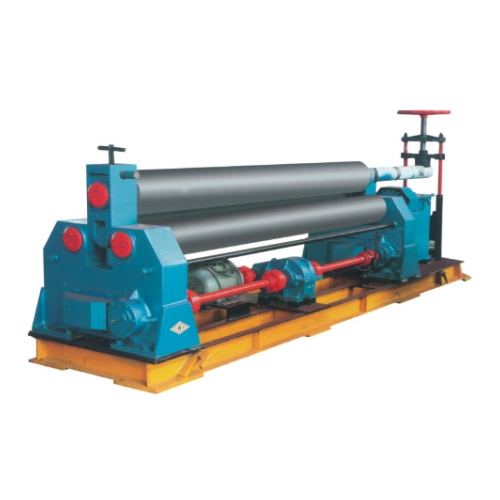

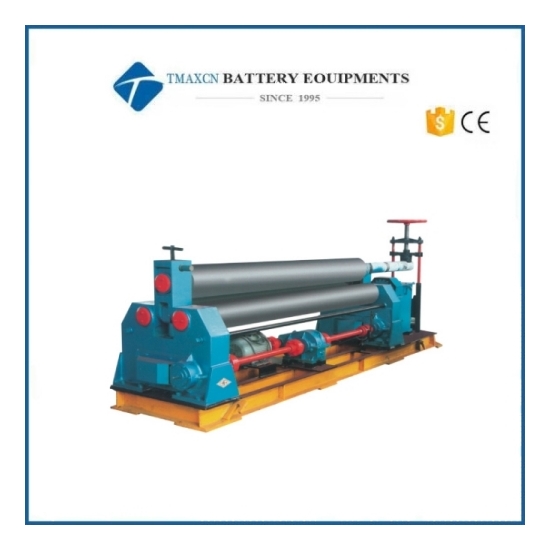

Symmetrical Mechanical Plate Bending Rolling Machine With Three Rollers
Model Number:
TMAX-W11Compliance:
CE CertifiedWarranty:
1 Year limited warranty with lifetime supportMOQ:
1Payment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 18659217588
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Symmetrical Mechanical Plate Bending Rolling Machine With Three Rollers
Features
W11 three-roller rolling machine use mechanical driven mechanism,upper roller,special side wheel can be installed according to customers' specialrequirement,in order toprocess differ-ent kind of material,such as anglesteel rolling,round steel pipe rolling and etc
Technical parameter
Type |
Max. Thickness of plate |
Max. Width of plate |
Plate yield limit |
Rolling speed |
Min dia. In full load |
Dia. Of upper roller |
Dia. of lower roller |
Center distance of lower roller |
Main motor power |
Weight |
Dimension |
Unit |
mm |
mm |
mpa |
M/min |
mm |
mm |
mm |
mm |
KW |
T |
mm |
W11-6x1500 |
6 |
1500 |
265 |
7.16 |
380 |
180 |
160 |
210 |
5.5 |
2.6 |
3310x1210x1330 |
W11-6x2000 |
6 |
2000 |
265 |
7.16 |
380 |
180 |
160 |
220 |
5.5 |
3.1 |
3810x1210x1330 |
W11-6x2500 |
6 |
2500 |
265 |
7.16 |
500 |
190 |
170 |
260 |
7.5 |
4.6 |
4310x1210x1330 |
W11-6x3200 |
6 |
3200 |
265 |
6.45 |
500 |
240 |
200 |
310 |
11 |
7.2 |
5200x1400x1200 |
W11-8x2000 |
8 |
2000 |
265 |
7.16 |
450 |
190 |
170 |
260 |
7.5 |
4.1 |
3810x1210x1330 |
W11-8x2500 |
8 |
2500 |
265 |
6.46 |
500 |
2450 |
200 |
310 |
11 |
5.5 |
4500x1420x1610 |
W11-12x2000 |
12 |
2000 |
265 |
5 |
500 |
240 |
200 |
310 |
11 |
5.5 |
4050x1420x1610 |
W11-12x2500 |
12 |
2500 |
265 |
5 |
750 |
260 |
220 |
330 |
11 |
6.3 |
5000x1500x1300 |
