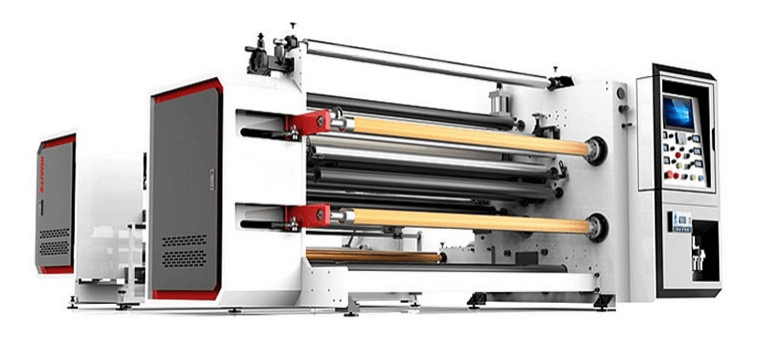

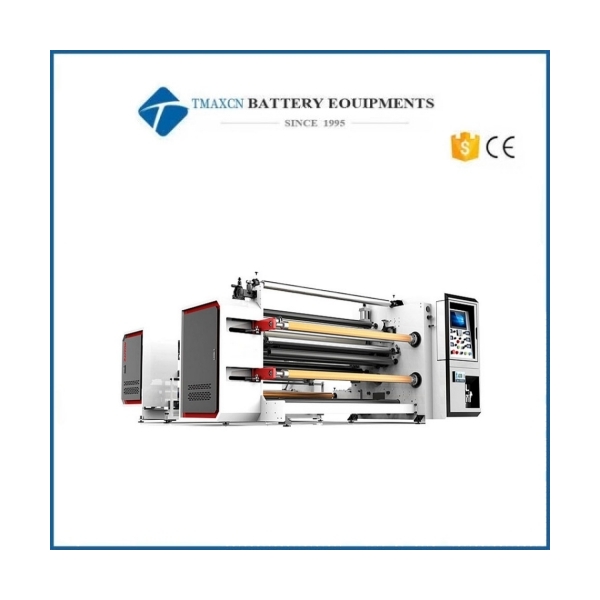

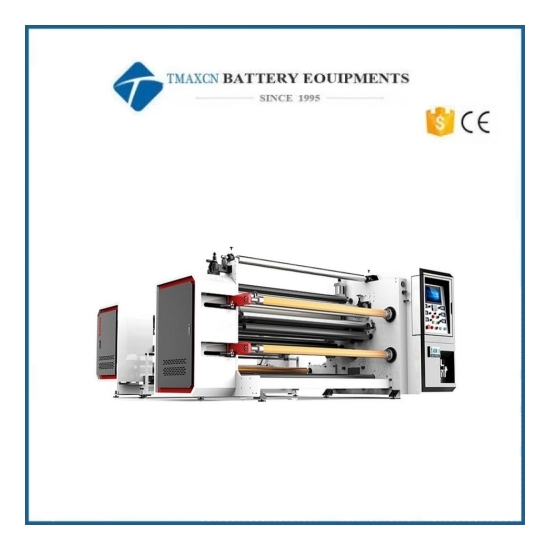

Tape Laminating Slitting Rewinding Machine For OCA Optical Adhesive Cutting
Uses and features
It is mainly used for laminating, slitting and rewinding of optical materials. Such as: brightening, diffusion, white inverse, silver inverse, three layers of PET protective film, hardening PET, OCA optical adhesive, AB adhesive and other materials laminating, slitting. Suitable for tape die-cutting, backlight, photoelectric and other industries.
Technical parameter
Model Number |
TMAX-HZX-GQ1300 / TMAX-HZX-GQ1600 |
Maximum feed width |
1.3M/1.6M |
Maximum feed diameter |
800mm (1000mm can be customized) |
Max. cutting diameter |
500mm (customizable 600mm) |
Minimum roll width |
18mm(straight knife) or 28mm(round knife) |
Machine working speed |
0~120M/ min, can be adjusted according to material cutting requirements |
Reel specifications |
1.5-3 inches (optional slip shaft) |
Dimensions |
2900*2700*1550mm |
Voltage |
380(V) |
Weight |
1600(KG) |
Total power |
6(KW) |
