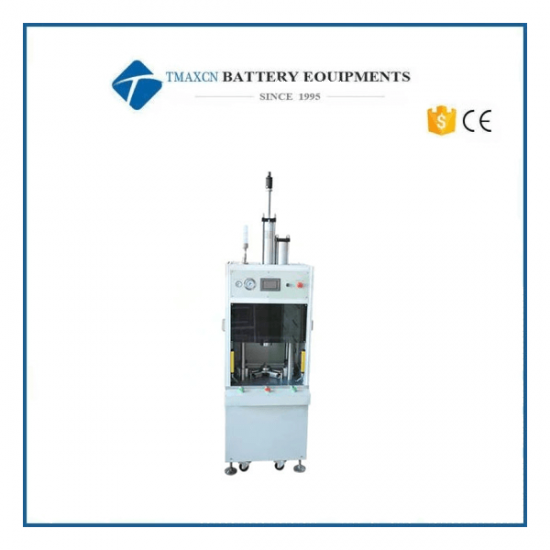

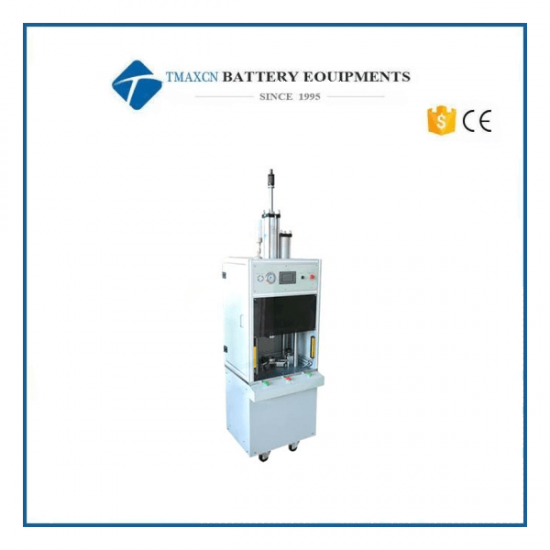

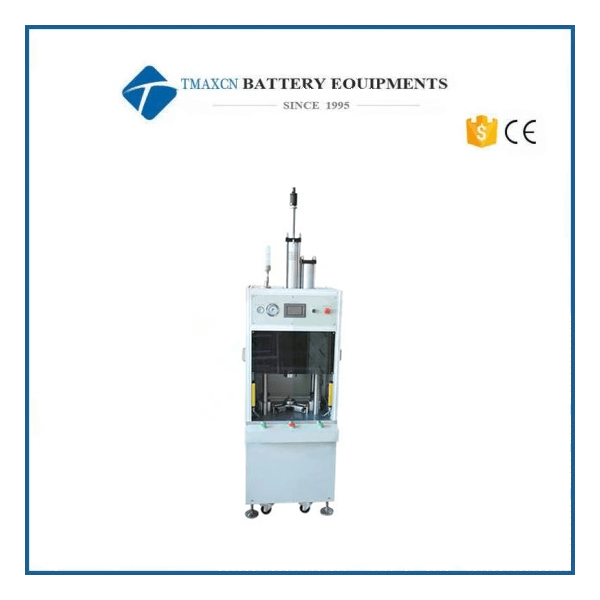

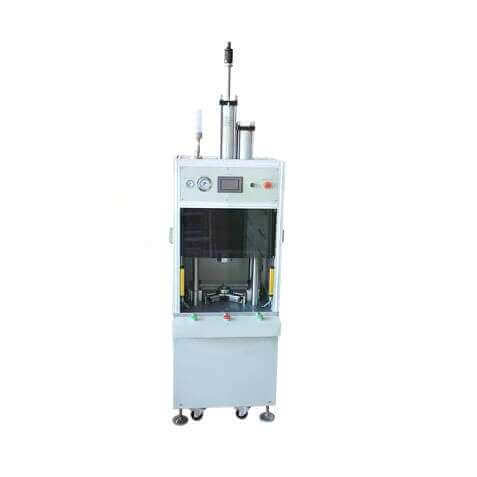

Supercapacitor Final Sealing Machine

Threaded Cylindrical Supercapacitor Final Sealing Machine

  • Model Number:

    TMAX-MFK60
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details


Threaded Cylindrical Supercapacitor Final Sealing Machine

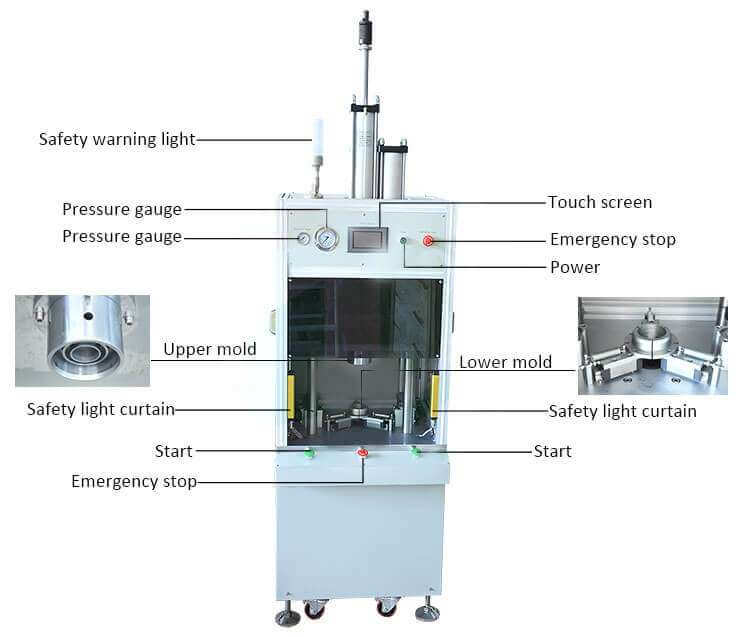

Main features

* Use the mold ring to clamp the sealing, so that the side wall of the O-ring of the shell is carried out unt require the hydraulic system to refuel and cumbersome pollution, and is easy to form an automation;

* Super capacitor sealing height is adjustable to suit different specifications;

* Sealing pressure, the holding time can be adjusted;

* The equipment adopts PLC control system to ensure stable and reliable operation and easy operation.

*Color touch screen LCD display operation, device parameter setting browsing intuitive.

*The frame is made of high-quality steel, welded firmly, polished smooth and clean, and the surface is beautifully painted.

* With safety grating and protective door, the equipment is safe and reliable.

der the omnidirectional clamping and clamping mode. The size of the side of the shell after sealing is small change, the sealing is even, and the airtightness is ensured;

 * Guided by precision mold guide post guide sleeve, the guide precision is extremely high to ensure the parallelism of the upper and lower molds;

 *The booster cylinder control mold has a large sealing force for the sealing of the capacitor, and does no


Model

TMAX-MFK60 Sealing machine

Applicable products

diameter 60 mm batteries, super capacitor (diameter can be customized),height 50-180mm

The size of the sealing shell is changed

≦±0.03mm

The height accuracy of the capacitor after sealing

≦0.1mm

Service life

The normal service life of tooling molds needs to reach more than 5 million times

Capacity

≥ 3PCS

Activity rate

98%

Air source

adjustable from 0.5 to 0.7 MPa

Power supply

220V/50HZ

Air consumption

0.4 m3/min

Power

500W

Dimensions

L650mm *W 600mm * 1900mm

Weight

500kg

Sealing and flanging process adopts mold sealing method
