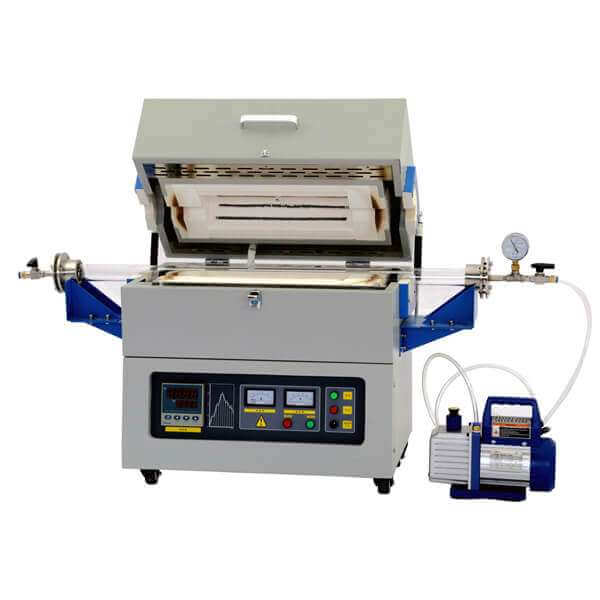

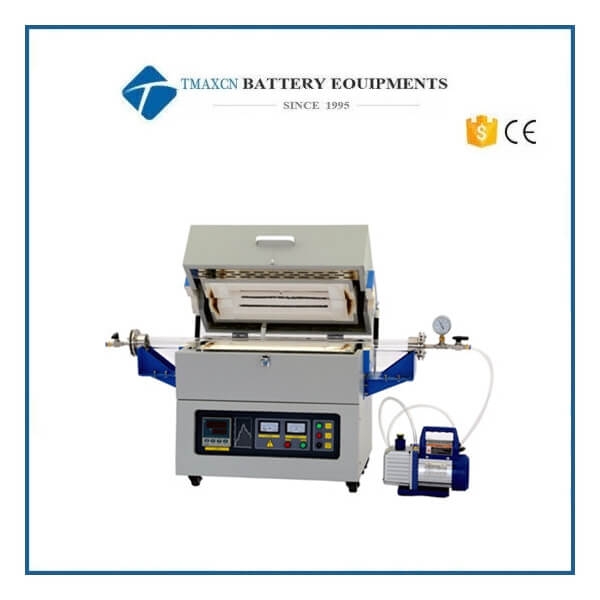

Model

1200-1200-I

1200-1200-II

1200-1200-III

1200-1200-IV

Power

3.6KW

3.6KW

3.6KW

5.2KW

Tube size(OD)(mm)

Dia60(OD)X1000mm

Dia80X1000

Dia100X1000

Dia150X1000

Dimensions

1140X460X695

1140X460X695

1140X460X695

1110X530X647

Tube

High purity quartz pipe: 60 / 80 / 100 / 150 * 1000mm (selectable tube diameter)

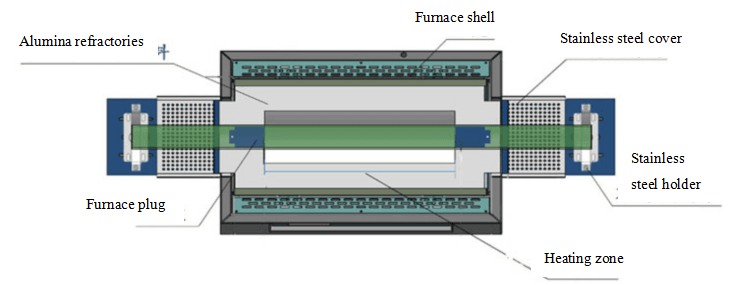

A furnace plug shall be placed on both sides. The furnace plug can block the heat radiation in the center of the furnace tube. It must be placed in the correct position of the furnace before heating

Supply voltage

220V

Phase

single phase

Heating element

Resistance wire imported from Sweden Kanthal A1

Temperature control

YUDIAN program temperature control instrument (standard)

1. 30-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1200 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3. with 485 communication interface (standard when purchasing software)

4. with power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5. the meter has the function of temperature self-tuning

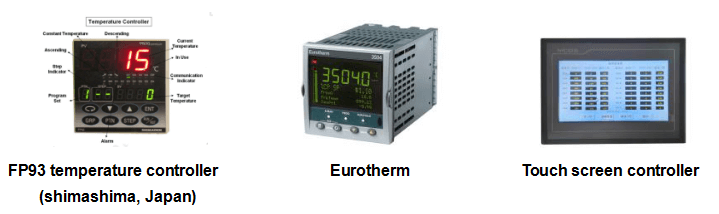

If you want to get an imported temperature controller, you may have the following choices for replacement with extra fees.

Furnace material

1. High-quality high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.

2. Formed by Japanese technology.

3. The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the temperature field is simulated by the thermal software.

Control accuracy

+/- 1 ℃

Trigger

Phase-shifted trigger

Electric appliance

Zhejiang chint

Silicon controlled

106/16E , SEMIKRON Germany

The highest temperature in the first and second temperature zones

1200 ℃

Rated temperature in the first and second temperature zones

1100 ℃

Length of heating section in the first temperature zone

205mm

Length of heating section in the second temperature zone

205mm

Length of constant temperature section in the first temperature zone

80mm

Length of constant temperature section in the second temperature zone

80mm

Heating rate

≤30 ℃/ Min

Recommended rate of temperature rise

≤15  ℃/ Min

Thermocouple Type

K Type

Constant temperature length

150mm

Peripheral surface temperature

≤45℃

Open cover protection system

When the furnace cover is opened, the relay will automatically cut off the main power supply, effectively ensuring the safety of the user

Temperature calibration

(optional)

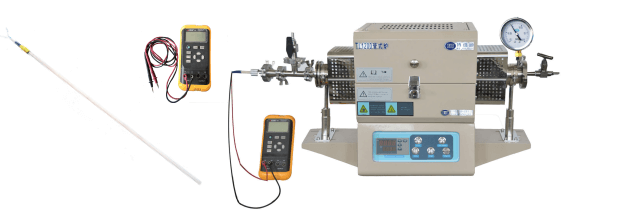

Regular temperature calibration of tubular furnace can keep the accuracy and uniformity of furnace temperature. You can choose a set of simple calibration tools in our company to assist you in this work. The complete calibration kit includes standard thermocouple, temperature calibrator and compensation wire.

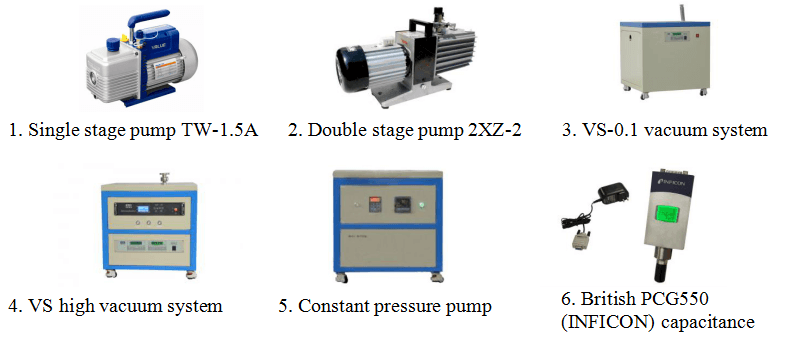

Vacuum system

(optional)

1)Generally, the gas in the furnace tube can be pumped out by roughly vacuumizing:TW-1.5A single-stage pump would be fine

2) The double-stage pump FX16(2XZ-4B) vacuum pump can pump the vacuum degree of tube furnace tube to about 10Pa. (standard)

3)The VS-0.1 vacuum system can pump the vacuum degree in the tube furnace to 0.1Pa (with resistance vacuum meter display).

4)VS high vacuum system (composed of molecular and mechanical pump) can pump the vacuum degree in the tube furnace to 10-3 Pa.

5)Constant pressure pump (the system can control the pressure in the pipe within - 100.0KPa ~ 100.0KPa).

6) British (INFICON) capacitance vacuum gauge (measuring range: 3.8x10-5 -1125 Torr, it can detect various gases, including mixed gases, with accurate measurement, good repeatability, and optional anti-corrosion type: PCG554)

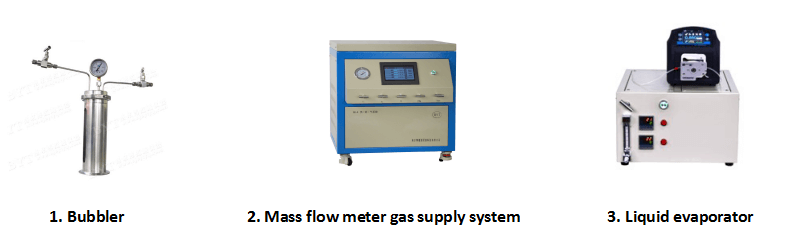

Gas supply system

(optional)

Item

Quantity

1200-1200 tube furnace

1 set

Quartz tube

1 pc

Stainless steel flange

1 set

Stainless steel hook

1 pc

Alumina plug

2 pcs

High temperature gloves

1 pair

alumina crucible

1 pc

K-type thermocouple

2 pcs

Com to USB interface (optional)

1set

Instructions

1 pc

Software (optional)

1 pc
