Atmosphere Box Furnace

UL Standard 1300C Inert Gas Vacuum Atmosphere Box Furnace( 3.6 - 36 L Heated chamber)

  • Model Number:

    TMAX-KBF13Q
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    15 day
  • contact now
Product Details

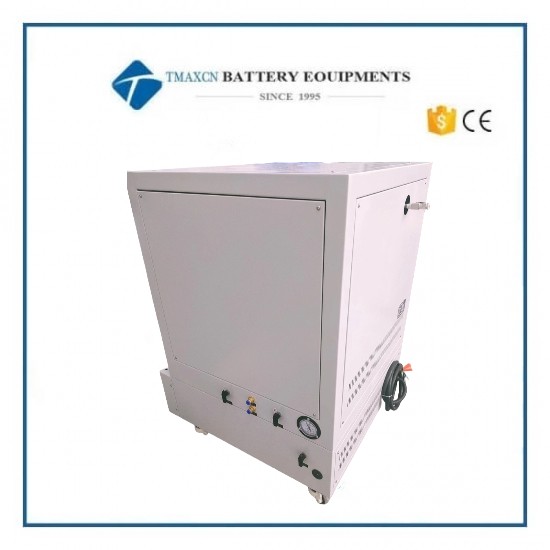

UL Standard 1300°C Inert Gas Atmosphere Box Furnace, ( 3.6 - 36 L Heated chamber)

TMAX-KBF13Q is a CE certified box furnace designed for materials synthesis under inert gas atmosphere with temperatures up to 1300 ºC. The furnace consists of high-quality alumina fiber bricks and Molybdenum alloy heating elements with an heating chamber. A vacuum-sealed steel chamber with water cooling jacket as well as the vacuum & gas flow control system enables material processing under inert gas atmosphere.


Here is the video link for your reference:

https://www.youtube.com/watch?v=7IXIf4sPP10&feature=youtu.be

SPECIFICATIONS:

Model

 KBF13Q-I

KBF13Q-II

KBF13Q-III

KBF13Q-IV

KBF13Q-V



Power

3 KW

6 KW

8 KW

10 KW

13 KW



Inside Chamber Size



Heated chamber:

160x150x150mm, 3.6 Liter.



Heated chamber:

200x200x200mm, 8 Liter.



Heated chamber:

300x200x200mm, 12 Liter.



Heated chamber:

300x250x250, 19 Liter.



Heated chamber:

400x300x300mm, 36 Liter.

Product Dimensions (mm)

 550x470x860

 600x510x910

  600x610x940

 650x610x990

 700x710x1355

Furnace Structure

1.   Double layer stainless steel structure for maximum vacuum and safety, which can ensure a positive pressure up to 0.06MP and vacuum up to -0.09Mpa

2.   Spring loaded pressure relief valve installed on the furnace provide protection against chamber over-pressurization.

3.   Water cooling front door and air cooling shell.

4.   Built in the vacuum pump and two-channel gas flowmeters, pressure gauge needle valves.

Inside Chamber Size

1.   Energy saving 1800 grade fibrous alumina insulation.

2.    High purity Al2O3 coating.

Voltage

AC 220 - 380V single phase; 50/60 Hz

Continuous Working Temperature

1650°C

Maximum Working Temperature

1700°C (< 1 hr)

Heating Rate

20°C / min

Temperature Accuracy

+/- 1°C

Heating Elements

1 6 pcs Mo Alloy coils (can only be used under inert gas, Ar is preferred; cannot be used under air or oxygen at the temperature > 300°C).

2Optional: Heating elements can be replaced by MoSi2 to enable heat processing under oxygen and air atmospheres  up to 1700°C.

Temperature Control

1.   PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor.

2.   a40 programmable segments for precise control of heating / cooling rate and dwell time.

3.   Over temperature protection and thermocouple failure alarm functions allow operation without attendant(s).

4.   +/- 1ºC temperature accuracy.

5.   RS485 Communications Port.

Pressure Relief Valve

Spring Loaded Type Pressure Relief Valve
• Cracking pressure is manufacturer pre-set at 0.066Mpa (relative pressure value).
• Valve close pressure: 0.03Mpa (relative pressure value).
• Max. Temperature 200ºC.

• 35mm O.D barb fitting for gas exhaust.

Gas Flow Control and

Vacuum Valve

• Two flow meters (#1: 0~8L/min; #2: 0~4L/min) are installed on the front panel of the furnace.
• One heavy duty vacuum pump (CE certified) is built on the bottom of the furnace.

Water Cooling

• A 16L/min recirculating water chiller is installed in bottom of furnace for cooling furnace sealing flange.

Warranty

One year limited warranty with lifetime support.

Application Notes

• For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 5 °C /min.
• The cooling rate shall also not exceed 5 °C /min.
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
• The refractory block must be inserted before closing door.

Detailed Images

                    vacuum box furnace



                    vacuum box furnace

Our Certifications



Cooperative Brand



Hot Sale Products


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


vacuum box furnace

Packing & Delivery


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.






inquiry now

    We will give you a quotation within 24 hours. give you a quotation within 24 hours.
