Air Compressor

Ultra Quiet and Oil-Free Steel Tank Air Compressor with connection kit

  • Model Number:

    TMAX-air
  • Dimension(L*W*H):

    23.6 L x 13.3 W x 24 H (inches)
  • Net Weight:

    49 lb
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    20day
Product Details

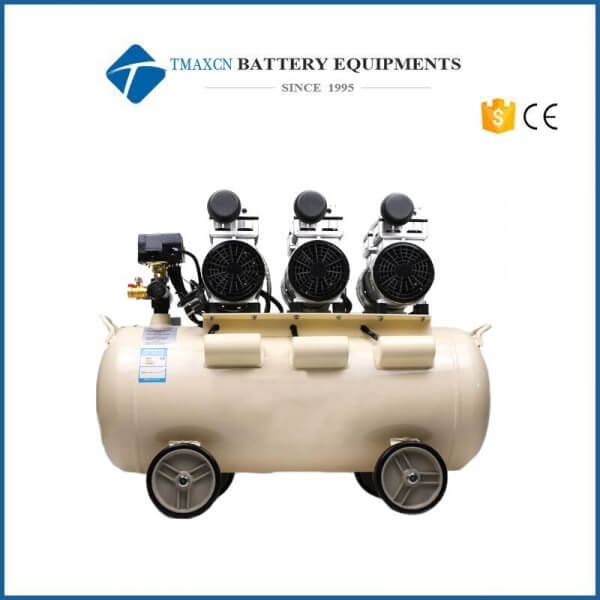

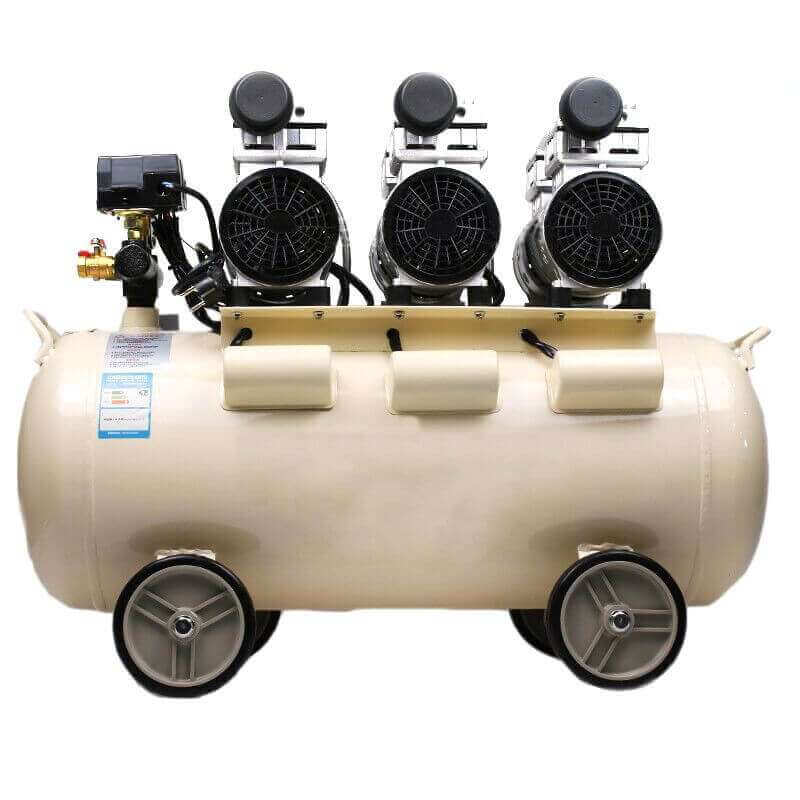

Ultra Quiet and Oil-Free Steel Tank Air Compressor with connection kit

Ultra Quiet air compressor with only 60 decibels of sound - ideal for minimizing noise in the working environment. Features an oil-free compressor for compatibility in various environment and temperatures settings. Lightweight air tank with wheel kit allows for easy portability and transportation.


SPECIFICATIONS

Voltage (Select in Option Bar) 110V / 60Hz (for US Domestic Use) 220V / 50Hz (for International Use)
Air Delivery
  • 3.8 SCFM @ 40 PSI
  • 2.35 SCFM @ 90 PSI
  • 3.1 CFM @ 40 PSI
  • 2.2 CFM @ 90 PSI
Time to fill empty tank to full 130 Seconds 120 Seconds
Recover from 90 PSI to 120 PSI 50 Seconds 40 Seconds
Current Draw 7.6 Amps 4.5 Amps
Compressor Tank Capacity 6.3 Gallons 5.5 Gallons
Tank Material Steel
Tank Style Hot Dog
Air Compressor Type Oil Free
Compressor/Air Tool Features Oil-Free Lubrication & Two Tank Pressure Gauges
Maximum Pressure 120 PSI
Decibel Rating (Outdoor) 60 dBA
Horsepower 1 hp
Portable Yes
Thermal Overload Protector Yes
Water Trap Filter (for removing water from air) Yes
Universal 1/4" Quick Connector Yes
Lubrication Type Oil Free
Stage Count Single Stage
Dimensions 23.6 L x 13.3 W x 24 H (inches) 25.5 L x 11.5 W x 21 H (inches)
Weight 49 lb 50 lb
Warranty One year limited warranty with lifetime support
