Ultrapure Deionized Water System

Ultrapure Deionized Water System For Lithium Battery Lab Research

  • Model Number:

    TMAX-DBW-300L/H
  • Compliance:

    CE Certified
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    7 day
  • contact now
Product Details

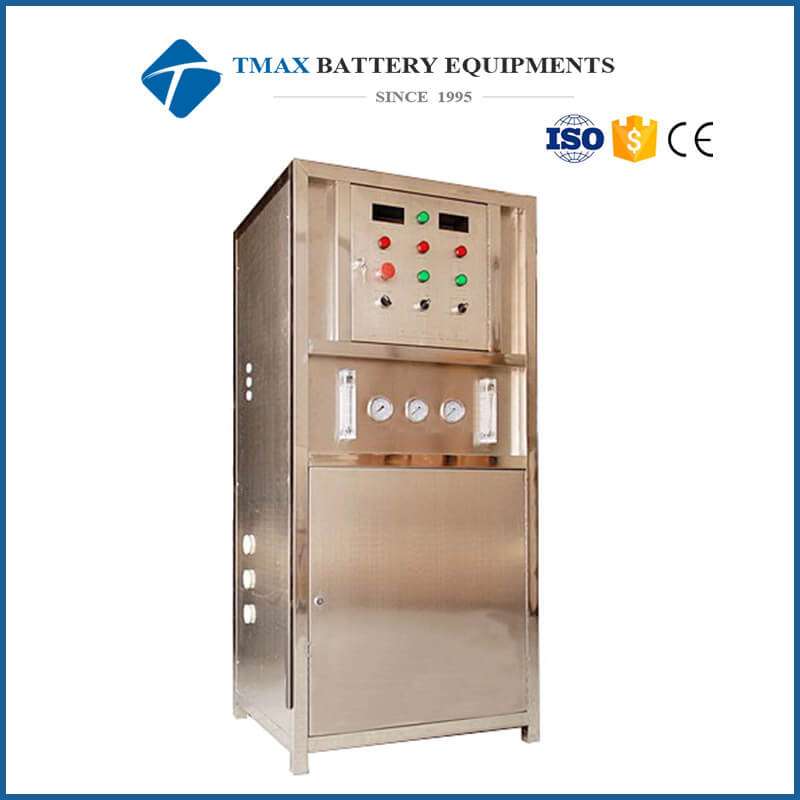

1  TMAX-DBW-300L/H Deionized Water Equipment is a water purifier widely used for Electronic industry, pharmaceutical industry, chemical industry etc. Ultrapure water preparation.



2 This Deionized Water Equipment adopts reverse osmosis membrane (RO) membrane as the core, supplemented by multi-stage pretreatment of membrane type pure water machine, using the current international advanced reverse osmosis technology and Mixed bed desalination process to prepare ultrapure water.



3 For Lithium battery lab research, the Deionized Water is used for battery cathode materials mixing with water to improve lithium battery performance.



4 This Deionized Water machine can also be used for lead-acid battery and solar cell producing and research

Model

 Deionized Water Equipment   TMAX-DBW-300L/H

Dimension

700*600*1500mm

Weight

150kg

Source voltage

AC 110V/220V, 50HZ

Power

1100W

Warranty

One year limited and lifetime support

Water output

300L/h

Water output

quality

Ratio of desalinization :  ≥99.99%

Electrical resistivity : ≥10MΩ.cm

Conductivity : ≤0.1us/cm

Advantages

1 With low pressure and over pressure, Water shortage or water will power off auto.

2 Automatic program control, power on self test automatic protection,

automatic operation system

Configure

Name

Model

Quantity

Remark

5um Filter

Shell of tank

Φ130×H600mm

1













Filter material

5um filter element

1

Activated carbon

filtration

Shell of tank

Φ130×H600mm

1

Filter material

Sintering activated carbon

1

1um Filter

Shell of tank

Φ130×H600mm

1

Filter material

1um filter element

1

High pressure pump

CDL2-90

1

Stainless steel vertical

multi-stage pump

Reverse osmose membrane

YQS-4040

1





























Pressure gage

0-150Psi

1

0-300Psi

2

Water inlet electromagnetic valve

DN-15

1

Irrigation solenoid valve

DN-15

1

Low pressure switch

DB0-6KG

1

High pressure switch

DB0-30KG

1

Full automatic control system



1

Non-return flap valve

DN-15

1

Waste water regulating valve

DN-15

1

Atmospheric valve

DN-15

1

Online water quality monitoring instrument

CM-230

1

Large capacity water purification

Φ170×H900

1

Nuclear grade polishing resin

NS-60

20L

Online water quality monitoring instrument

CM-230

1





     Ultrapure Deionized Water System






1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


Planetary Ball Mill


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
