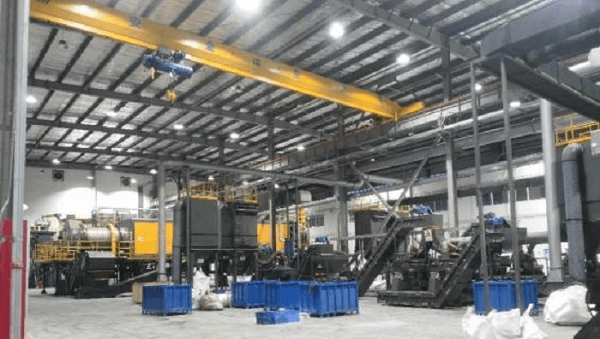

1.2 Tons Environmental Protection And Recycling Machine Recycling Equipment Production Plant For Retired Lithium Battery

NO.

Equipment name

Power parameter

Quantity

Remarks

1

One-stage shredding conveyor

1.Power 3KW

2.Width 600mm

3.PVC canvas belt

4.Chain link drive

5.Length 10 meters

1Set

TMAX

2

One-stage

twin-shaft shredder

1.Power 30KW

2. Number of blades 30 pieces

3.Blade material hard alloy

SKD11 forging

4.Case thickness 20mm

1Set

3

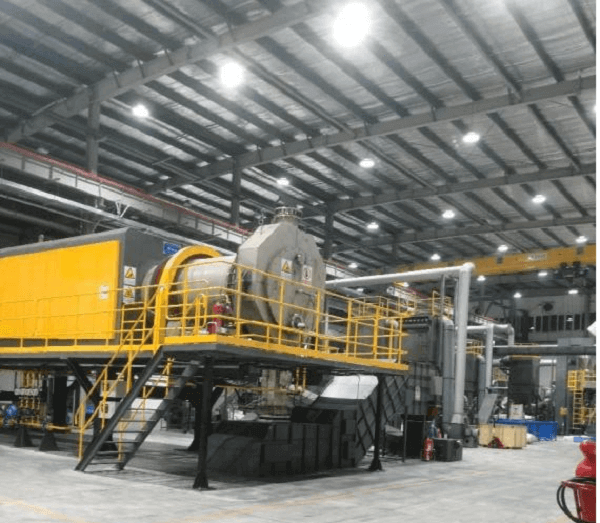

High-temperature calcining furnace

1.High temperature refractory brick

inner liner diameter 1.25m

2. Heavy oil combustion assisted heating

3.Cylinderdiameter1500mm*length 12m

4. Reducer drive, speed adjustable

5. Power 15KW

1Set

TMAX

4

Shredder Base

support frame

1. Height 3.5 m

2.Length 3800*2800mm

3. 160mm heavy channel steel welded

4. Platform to build fence type

guardrail, climbing ladder

5. The first and last end of the

extraction hole is installed with

manual air regulating valve

6. High temperature glass window

installed at the end

1Set

TMAX

5

Calcining

furnacebody

Platform support

1. Height 1.5 m

2.Length 12.5 m width 1.8 m

3.Welded with heavy duty 180 square

steel

4.Separate support for import and

export

1Set

TMAX

6

Cooling furnace

platform support

frame

1.height 1m

2.length 9m width 1.5 m

3.Made of heavy duty 180 square

steelwelded

4.Separate support for import and

export

1Set

TMAX

7

Low temperature

cooling furnace

1. Cylinder diameter 1200mm * 8m

length

2. 2 inch water outlet valve

3. Water tank volume 6 cubic

meters

4. Reducer drive, speed adjustable

5. Power 5.5KW

1Set

TMAX

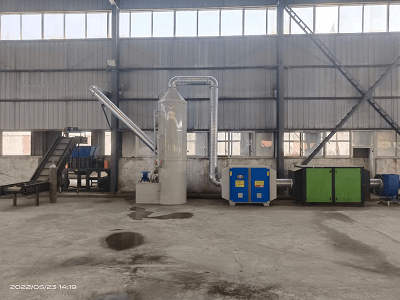

8

High temperature

exhaust gas

purification

spray tower

1. Tower diameter 1500mm *4500mm

height

2. Material stainless steel 201

3. Water pump power 1.5KW

4. Three layers of filters

1Set

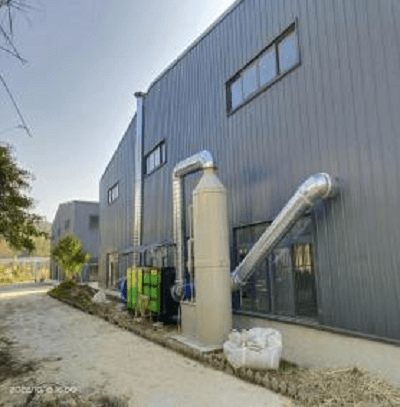

9

Low temperature

exhaust gas

purification

spray tower

1. Tower diameter 1500mm*4500mm

height

2. Material PP

3. Pump power 1.5KW

4. Three layers of filters

1Set

10

Exhaust gas

activated carbon

adsorption box

1. Carbon steel anti-corrosion material

2. 300 cubes of coconut shell carbon

3. Drawer type structure

1Set

11

Exhaust gas high

pressure blower

1. Power 15KW

2. Air volume 18000 cubic meters

3. Motor direct connection drive

1Set

12

Exhaust

ventilation duct

1. Duct diameter 500mm

2. Carbon steel material

3. Carbon steel material at the front,

galvanized spiral duct at the back

Matching 30m

Luoyang Lituo

13

Control electric

cabinet

1. using Chint electrical appliances

2. Explosion-proof electric cabinet

3. Fault warning sound control

4. Camera monitoring

1Set

Back-end crushing + screening equipment

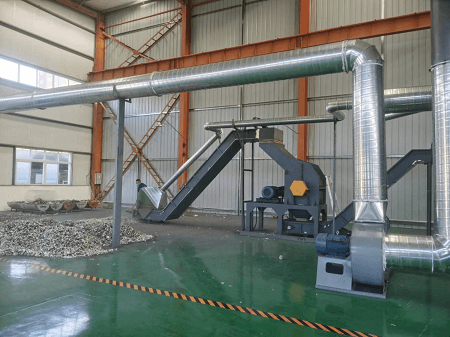

1

Lithium battery

crusher

1.Heavy duty thickened shell thickness 16mm

2.Model 800 rotating diameter 700mm

3.Power 30KW national standard pure

copper wire motor

4.50 pieces of knife plate

5.frame using 120mm large channel

steel

6.The upper box cover quick

disassembly structure

7.Screen aperture 14mm

1Set

2

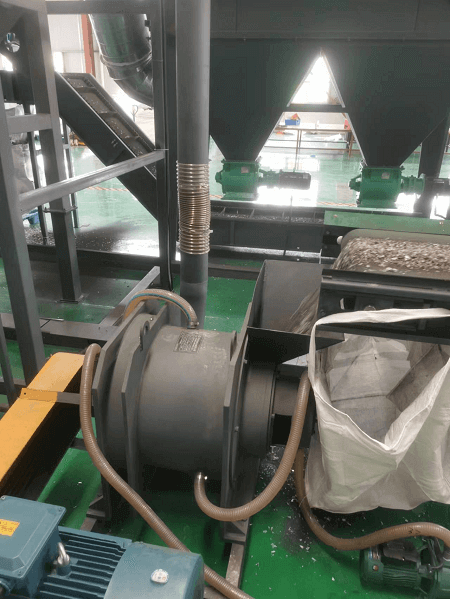

Lithium battery

grinding machine

1.Model 750 rotating diameter 820mm

2.Power 37KW national standard pure

copper wire motor

3.Blades are made of wear-resistant

white steel

4.Double-layer circulating water coolingstructure of the body

5.Three rows of knife rollers + 1 row of impellers

1Set

3

Crusher Conveyor

1.width 600-800MM length 10m

2.PVC baffle belt 3 baffles per meter

3.motor power 3KW, cycloid gear

reducer, chain drive

4.top and bottom cover fully sealed

structure

1Set

4

Air flow

conveyor

1.Diameter of pipe 110mm

2.Fan power 5.5KW

3. Electric discharge valve at the

bottom of cone drum 0.75KW

4.conveying height 4m

1Set

5

Diaphragm

vibrating sieve

1. Single layer structure

2. Sieve mesh movable screen

3. Upper and lower box fully

sealed

4. Power 1.5KW

1Set

6

Vibrating screen,

Diaphragm

Conveyor

1.Width 600-800MM Length 10m

2.PVC baffle belt 3 baffles per meter

3.motor power 1.1KW, cycloid

reducer, chain drive

4.top and bottom cover fully sealed

structure

2Sets

7

Grinding

conveyor

1.Width 600-800MM Length 4m

2.PVC baffle belt 3 baffles per meter

3.Motor power 1.1KW, cycloid

reducer, chain drive

4.Top and bottom cover fully sealed

structure

1Set

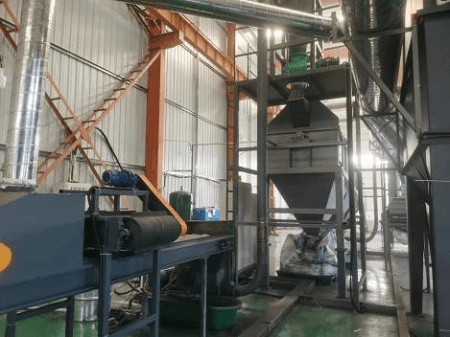

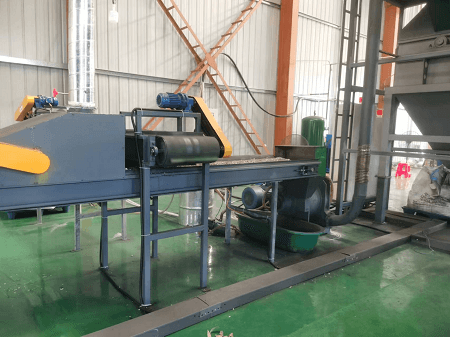

8

Magnetic

separation belt

conveyor

1.Width 600-800MM Length 3m

2.PVC baffle belt 3 baffles per meter

3. Motor power 0.75KW, cycloid

reducer, chain drive

4.Fully sealed structure of top and

bottom cover

1Set

9

Mill discharge

airflow conveyor

1. Duct diameter 160mm

2.Fan 7.5KW

3.Electric discharge valve at the

bottom of conical drum 2.2KW

4.conveying height 4m

1Set

10

Cooling water

bucket, water

pump

1. Water pump power 0.5KW

2. Water tank 1 cubic meter

1Set

11

Front end 4m

vibrating screen

1.Single layer structure

2. Sieve mesh movable screen

3. Upper and lower box fully sealed

4. Power 1.5KW

1Set

13

Air flow

conveyor * Tail

material into

linear screen

1.Pipeline diameter 110mm

2.Electric discharge valve at the

bottom of cone drum 0.75KW

3.Fan power 4KW

1Set

14

Air flow conveyor *to specific gravity machine

1.Pipe diameter 110mm

2.Bucket box receiving material

3. Electric discharge valve at the

bottom of cone bucket 0.75KW

4.conveying height 2.5m

1Set

15

The large

cyclone separatoris located in

themiddle of the

pulse dust

collector

1. Electric discharge valve is

installed at the discharge port

2.Motor power 1.5KW

3. Discharge valve 7 liters

1Set

16

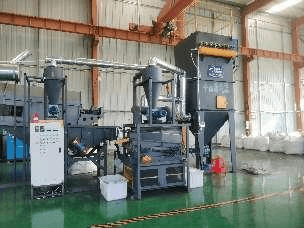

Specific gravity

copper and aluminumsorting machine

1. Power 6KW

2. Vibration speed variable

frequency adjustable

3. Sorting net 800 X 1350mm

4. Blower and vibration frequency

frequency adjustment

1Set

17

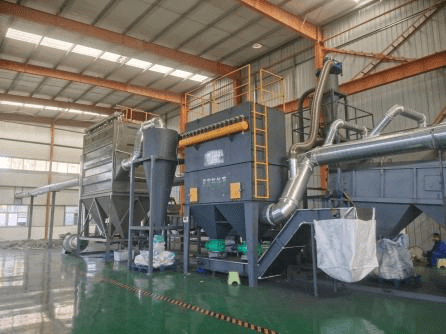

Large pulse dust

collector

1.240 bags of polyester

heat-resistant needle-punched felt

areused for dust bags

2.5 pulse control valves

3.Pulse controller digital module

4.8KG air pressure for air

compressor

5.Sealed with upper and lower

Box links

6.Air inlet hole on the side of the

upper box and air extraction hole

on the side

7.fan power 18.5KW

1Set

18

Pulsed dust

collector for copperand aluminum

1.96 bags of polyester

heat-resistant needle-punched felt are

used for the dust bag.

2.8 pulse control valves

3.Pulse controller digital module

4.Using the upper and lower box

link seal

5.The lower box open air inlet hole

6.Power 5.5KW

1Set

19

Vibrating sorting

screen

1.Length 3m width 800mm

2.Double vibration motor power

0 .75KW*2

3.Divided into two outlets, screen

100 mesh

4.Add dust collection hood

5.Outlet distance from the ground

1300mm

1Set

20

Magnetic roller

magnetic separator

1.Power 1.1kw

2.Chain drive

3. Magnetic block 6000 gauss

4.Automatic iron unloading

mechanism added

1Set

21

Horizontal

conveyor magnet

machine below

1.Width 600MM Length 4m

2.Motor power 0.75KW , cycloidal

needle reducer

3.Chain drive

4.magnetic gauss drum magnet 7000

1Set

22

Rear end hexagonaldrum screen

1. hexagonal drum structure

2. 24 movable screens

3. Upper and lower box fully

sealed

4. Power 5.5KW

1Set

23

Dust removal duct

1.Diameter 600/500/400mm\300mm\

200mm

2.Elbow, flange, flange plate, tee,

reducer, etc.

3.Length about 80m

4.Pipeline configuration pulse

automatic cleaning structure

1Set

Luoyang Lituo

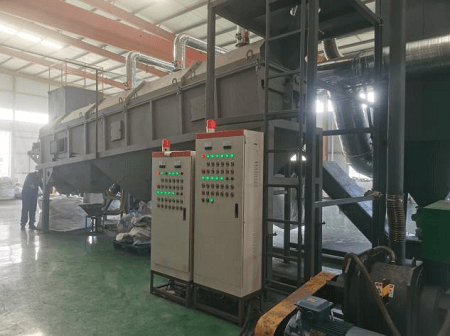

24

Control electric

cabinet

1.Automatic flip function

2.Overload protection device

3.voltmeter, ammeter

4.Emergency stop switch

5.Sound and light alarm function

3Sets

25

Copper and

aluminum selectionCircular Vibrating Sieve

1.Stainless steel screen

2.Diameter 400mm

3.Sieve double layer

1Set
