300KG Waste Lithium Battery Recycling Equipment Li Ion Battery Recycling Production Plant

  • Model Number:

    TMAX-300
  • Type:

    Automatic
  • Compliance:

    CE Certified
  • Warranty:

    One year limited with lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

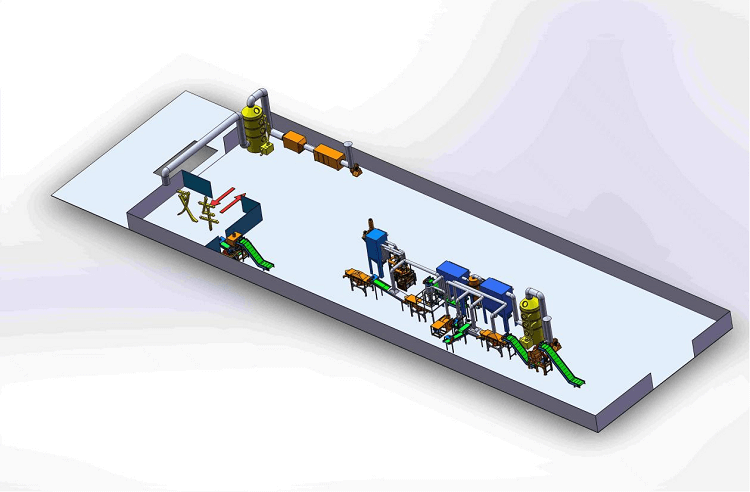

300KG Waste Lithium Battery Recycling Equipment Li Ion Battery Recycling Production Plant


Introduction

The waste lithium battery contains various rare raw materials such as copper, aluminum, graphite powder and lithium powder, and has high recycling value. Lithium battery mainly consists of shell, positive electrode, negative electrode, electrolyte anddiaphragm. The positive electrode is formed by coating lithium cobaltate powder on two sides ofan aluminum foil current collector through PVDF which plays a bonding role;The negative electrode structure is similar to the positive electrode and consists of carbon powder bonded toboth sides of the copper foil current collector. At present, the research on the recycling of wastelithium batteries is mainly focused on the recovery of high-value anode precious metals cobaltand lithium. Copper in the negative electrode of waste lithium battery (content up to 35%) is animportant production raw material widely used.Carbon powder adhered to it can be used asadditives such as plastics and rubber. Based on the structural characteristics of lithium batteries,our company adopts an environmentally-friendly physical separation process to realize efficientseparation and recovery of waste lithium batteries.

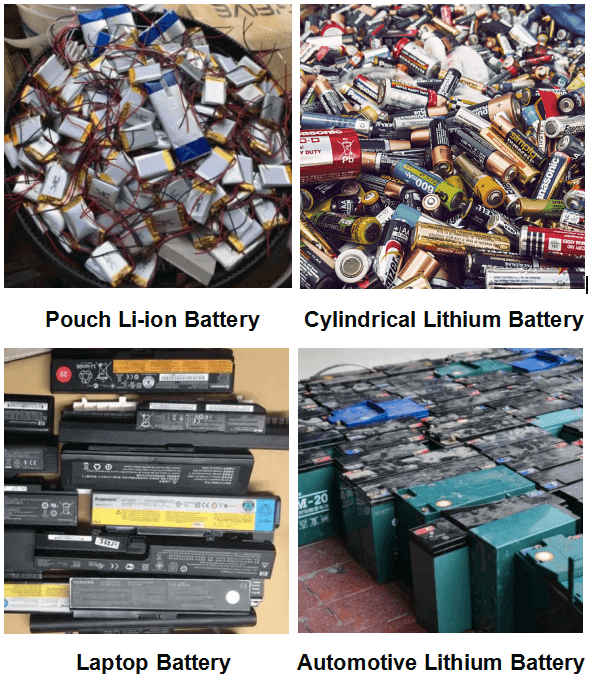

Raw Material


Products Description

The pretreatment process of waste lithium ion batteries mainly comprises the following steps:afterdischarging the recovered waste batteries, crushing, magnetic separation, air separation,crushing, gravity separation, screening and other processes are carried out by mechanical equipment,so that the powder on the positive and negative pole pieces is effectively separated from thecopper aluminum foil, and the batteries are treated as valuable materials.

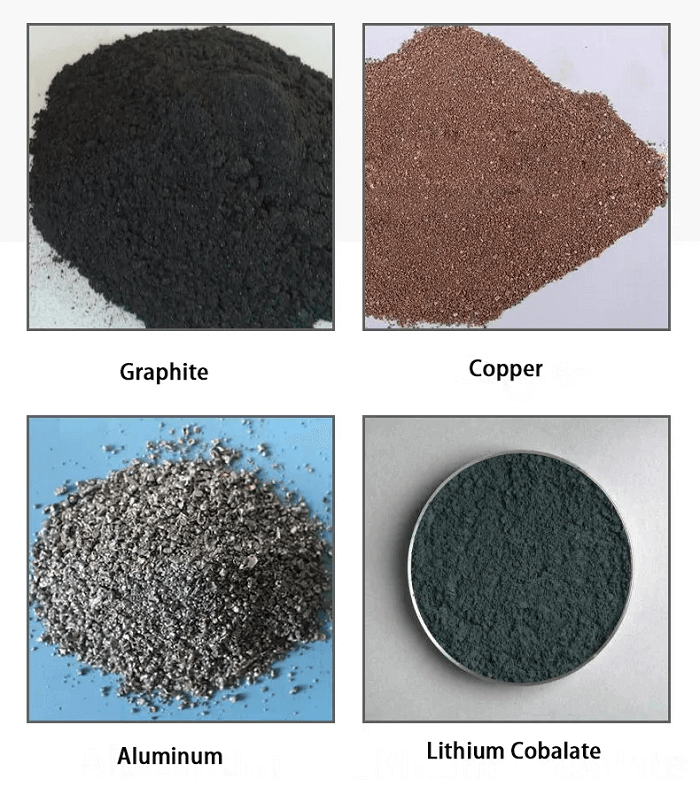

Final Products

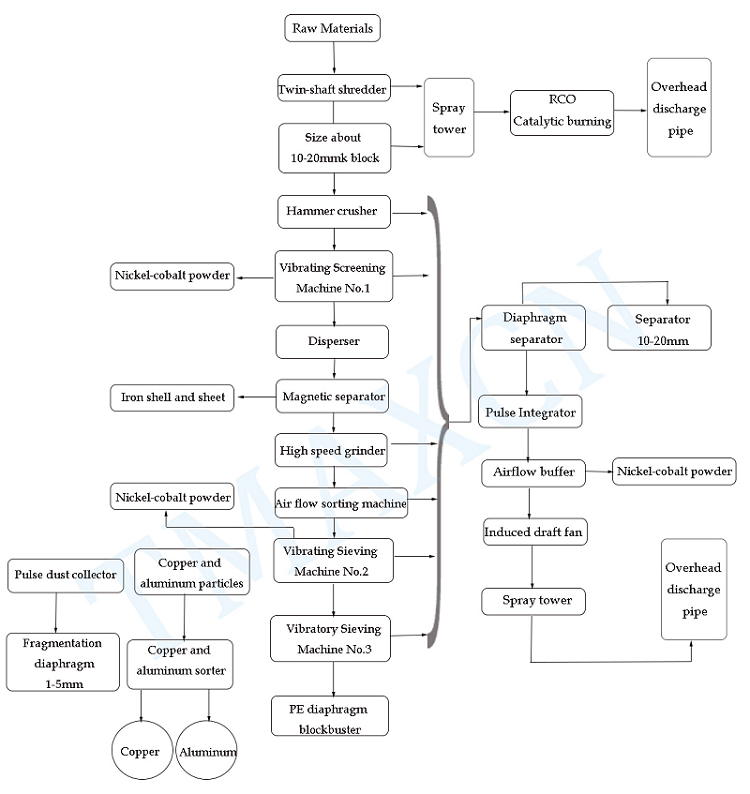

Technological Process




List of Lihtium Battery Crushing and Sorting Equipment

No.

Device Name

Power parameters

Quantity

Reference Pictures

1

Lithium battery

Crusher

1: Heavy duty thickened casing thickness 16mm

2: Model 400, rotating diameter 600mm

3: 22KW national standard pure copper wire motor

4: 60 wear-resistant blades

5: The frame adopts 100mm large channel steel



1set



2

Special for lithium batteries

Milling machine

1: Model 400, rotating diameter 400mm

2: National standard pure copper wire motor with a power of 30KW

3: The blade is made of wear-resistant white steel

4: Double layer circulating water cooling of the engine body

5: Double bearing cooling structure

1set



3

Belt conveyor

1: The bandwidth is 500mm

2: Reducer chain transmission structure

3: PVC thickened canvas bag

4: Power 1.1KW

5set



4

Airflow conveyor

1: Power 5.5KW

2: The cone is made of carbon steel

3: Install an electric discharge valve at the discharge port

1set



5

Belt conveyor

Crushing to grinding



1: The bandwidth is 500mm

2: Reducer chain transmission structure

3: PVC thickened canvas bag

4: Power 1.1KW

1set



6

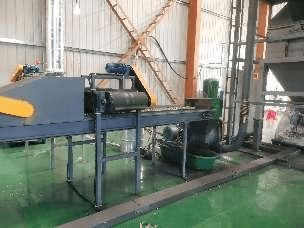

Automatic iron unloading magnetic separator

1: Power 1.1KW

2: Width 550

3: Install an automatic iron unloading mechanism

4: Reducer chain drive

1set



7

Plane lengthening screening machine

1. Power 1.5kw

2. Double vibration motor

Screen 304 material

4. Length: 4m, large area screening

2set



8

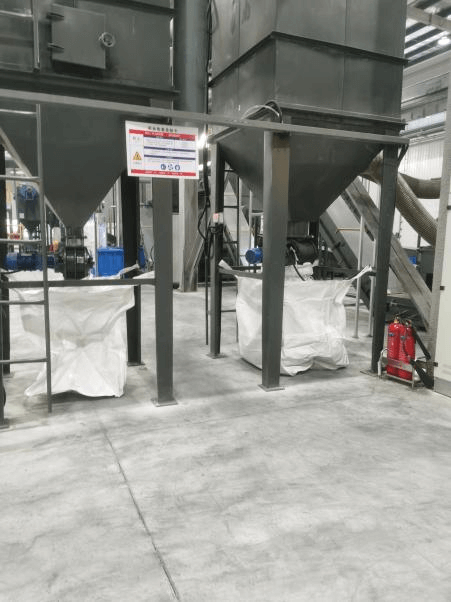

Black powder dust collector

1. Power 7.5kw

Needle felt filter bag

3. Side quick inspection door

4. Install electric discharge valve at the outlet

1set





Plastic diaphragm separator

1. Independent separation box

2. Nylon anti-static filter

3. Separate injection discharge structure

4. Bottom electric discharge valve

1set



9

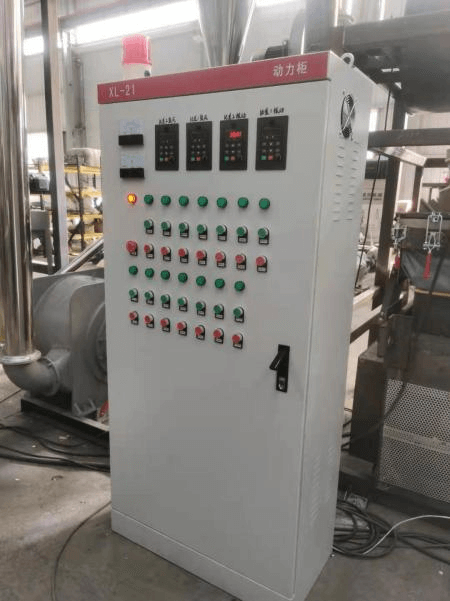

Control cabinet

1: Crusher frequency conversion starting cabinet 1 set

2: 1 set of star frequency conversion starting cabinet for pulverizer

3: 1 set of combined electrical cabinet for other equipment

4set



10

Copper aluminum separator

1. Power 5.5KW

2. Adjustable vibration and wind frequency converter

3. Separation rate: 95%



1set



11

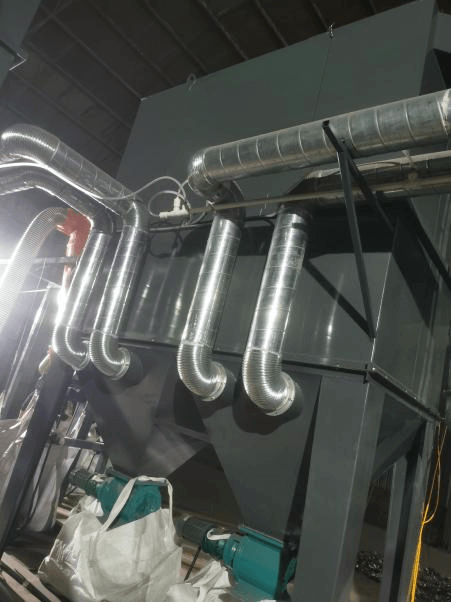

Dust collection pipeline

1: Diameter 200/400mm

2: Galvanized spiral air duct

3: Flange connection method

1set



13

Cooling water tank

1. Plastic water tank 1000L

2. Self priming circulating water pump

3. Circulation pipeline

1set



14

Pulse discharge electric valve

1. Reducer transmission

2. Star impeller, anti blocking structure

3. Power 1.1KW

3set



15

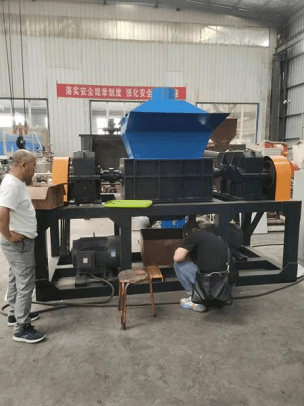

Dual shaft shredder

1. Reducer ZQ gear structure

2. Motor 11KW-6 level * 2 sets

3. Tool material SKD11, diameter 320MM

4. National standard for pure copper of motor

5. Rotating speed: 28r/min

6. Automatic overload device for electric cabinet

7. Cutter head thickness 20mm, model 600

1set

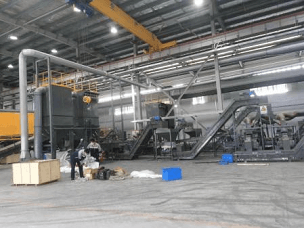

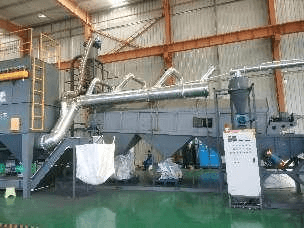

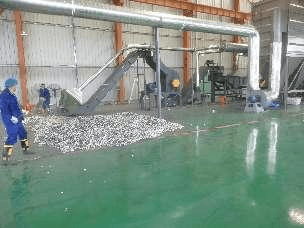

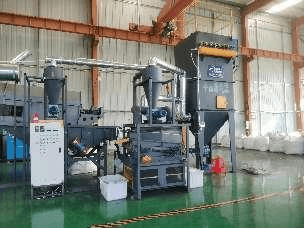

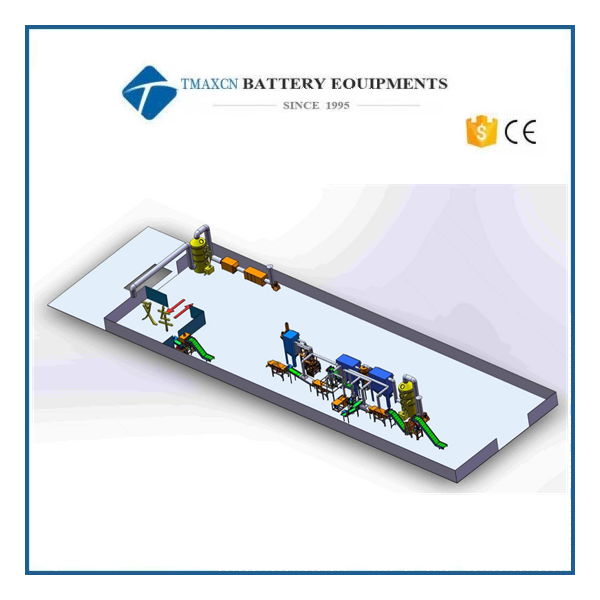

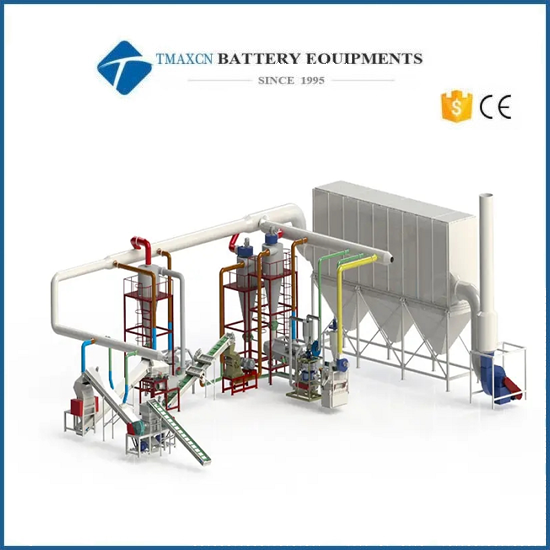

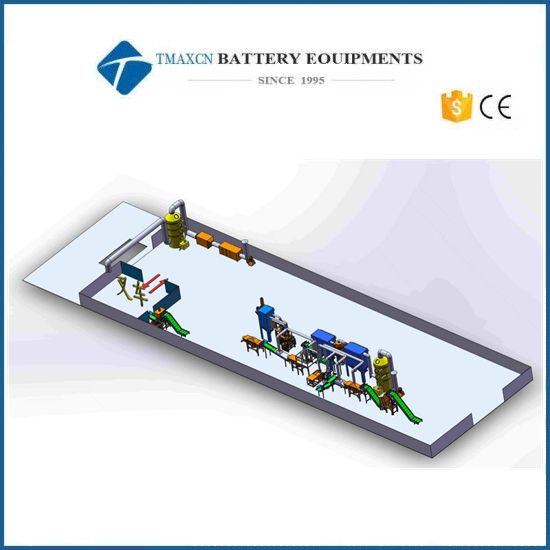

300KG Lithium Battery Recycling Equipment
