Dip Coater

1000C High-Temperature Heated Dip Coating Unit Coater

  • Model Number:

    LITH-KJ01H10

  • Compliance:

    CE Certified

  • Warranty:

    One Year limited warranty with lifetime support

  • Shipping Port:

    Xiamen

  • MOQ:

    1

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

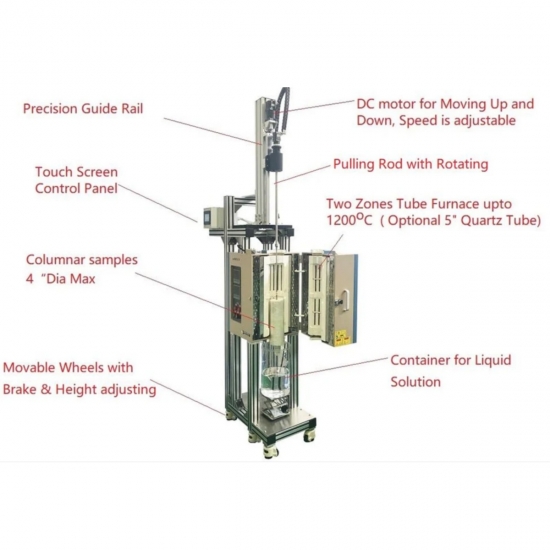

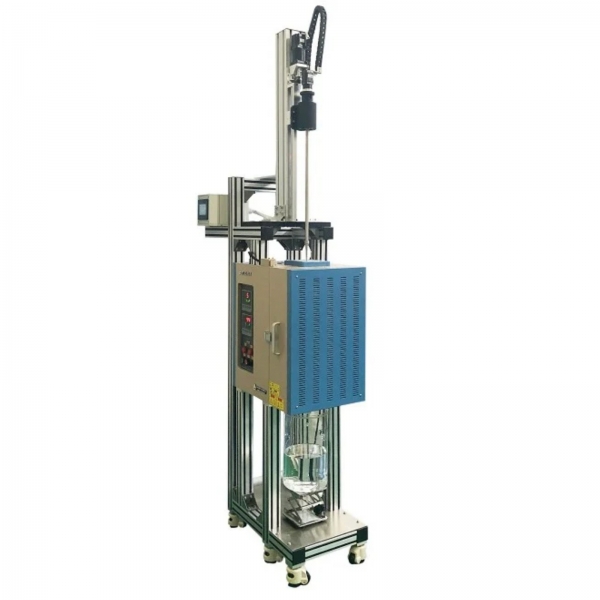

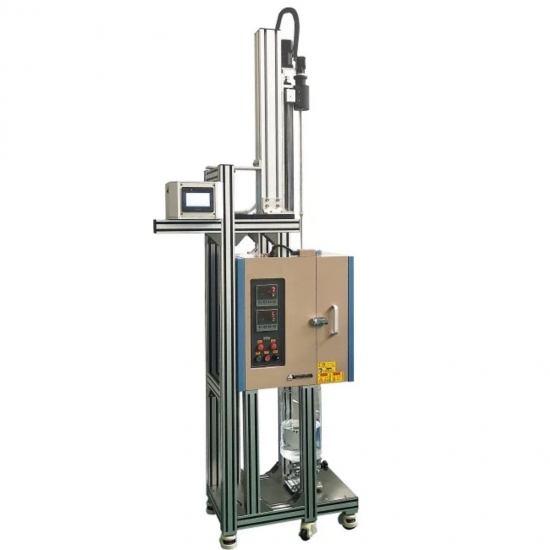

1000C High-Temperature Heated Dip Coating Unit Coater



The TMAX-KJ01H10 High-Temperature Dip Coating System is designed for high-temperature (800–1000°C) thin-film deposition. It features three independently controlled temperature zones with adjustable lifting speeds for each stage, driven by a PLC-programmed high-precision stepping motor.

This system is widely used in research involving high-temperature dip coating. The sample is fixed to a lifting wire, lowered into a solution for immersion, then withdrawn into a high-temperature furnace tube for rapid film curing. The furnace can reach up to 1000°C, with standard lifting wires rated for ≤800°C. Special lifting wires (800–1000°C) are available upon request.

The TMAX-KJ01H10 is ideal for high-temperature film growth applications, including:

· Ceramic films

· Crystalline films

· Battery material films

· Specialized nanofilms

It supports operation in inert (N₂, Ar) or oxidizing atmospheres and is widely used in universities, research institutes, and industrial laboratories.

Key Features

· High-temperature capability: Furnace supports up to 1000°C (standard lifting wires rated for ≤800°C; higher-temperature wires require customization).

· Multi-zone control: Three independently adjustable temperature zones, each with customizable lifting speeds.

· Advanced drive system: PLC-controlled high-precision stepping motor with vibration-damping suspension wire technology.

· User-friendly interface: 4.3" color touchscreen for intuitive operation.

· Atmosphere compatibility: Works in inert (N₂, Ar) or oxidizing environments.

Technical Specifications

Category

Specification

Model

TMAX-KJ01H10

Power Supply

Single-phase AC220V 50/60Hz (dual 10A sockets with grounding, requires 16A circuit breaker)

Environmental Conditions

Operating temp: 25±15°C, humidity: 55±10% RH

Dip Coating Unit



- Drive Motor

High-precision stepping motor

- Speed Range

Three-stage programmable: 1–200 mm/min (independent per stage)

- Immersion Time

1–999 s

- Total Travel Distance

620 mm (Low-Temp Zone: 236 mm, High-Temp Zone: 150 mm, Cooling Zone: 234 mm)

- Max Immersion Depth

60 mm

- Max Load Capacity

≤200 g

- Substrate Dimensions

75 mm (L) × 25 mm (W) × 1–4 mm (D)

- Display & Control

4.3" color touchscreen

- Dimensions (W×D×H)

560 × 470 × 1550 mm

- Weight

≈50 kg (including furnace)

High-Temperature Furnace



- Power Input

AC220V 50/60Hz

- Rated Power

1.5 kW

- Max Temperature

1100°C (rated: 1000°C)

- Recommended Ramp Rate

10°C/min

- Temperature Accuracy

±1°C

- Control System

Multi-segment PID controller (K-type thermocouple)

- Chamber Dimensions

Φ80 × 330 mm

- Furnace Tube

Φ50 mm (OD) × Φ45 mm (ID) × 600 mm (L)

Notes:

1. Standard power adapter: Input AC100–240V 50/60Hz, Output DC24V 3.75A.

2. Customizable AC110V 50/60Hz furnace available upon request.

Standard Accessories

1. Sample holder – 1 set

2. Solution containers – 2 pcs

3. High-temperature lifting wires (≤800°C) – 3 pcs

Optional Accessories

1. Specialized lifting fixtures

2. High-temperature lifting wires (800–1000°C)

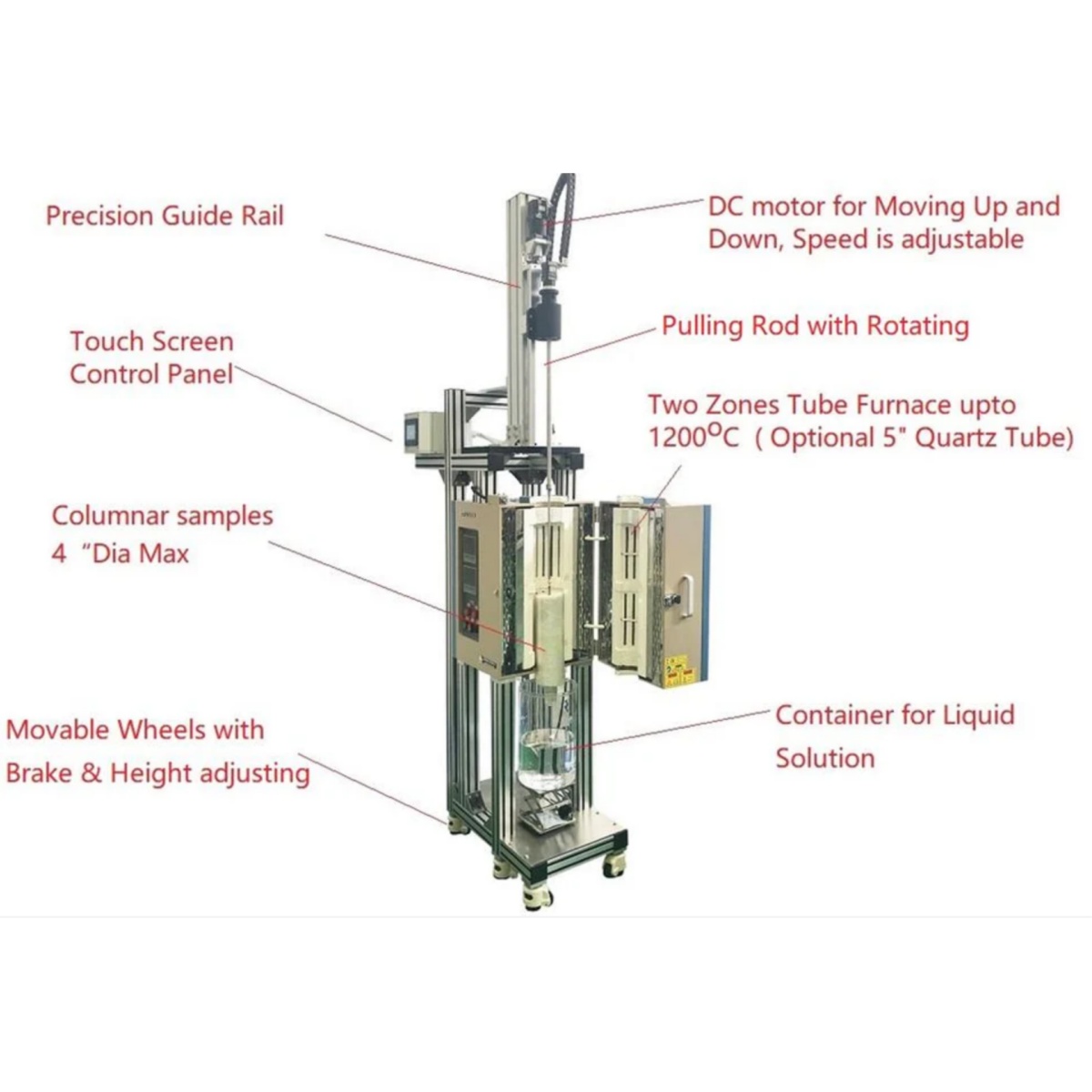

dip coating device
