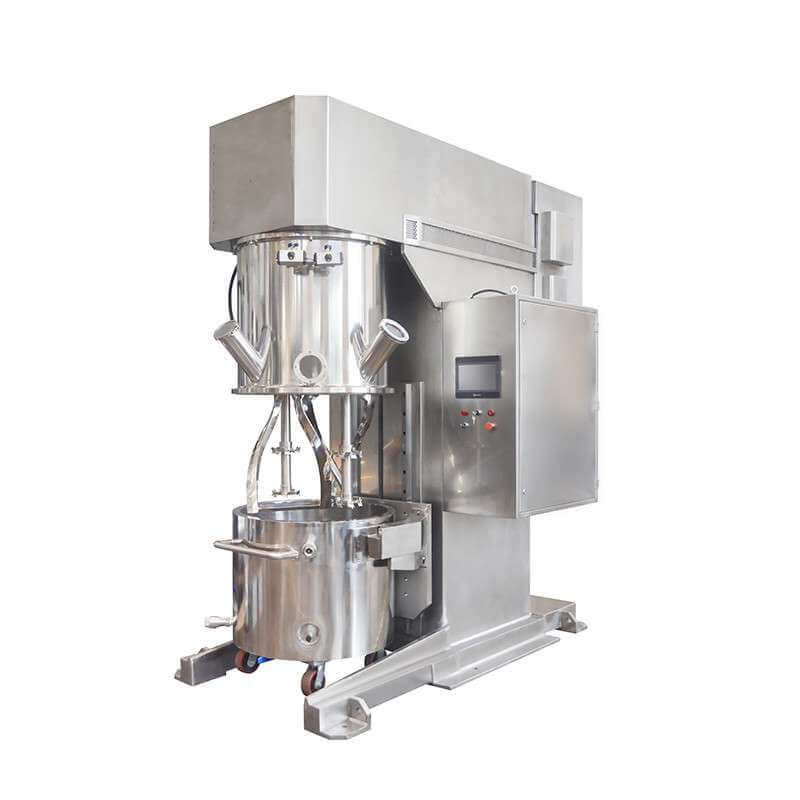

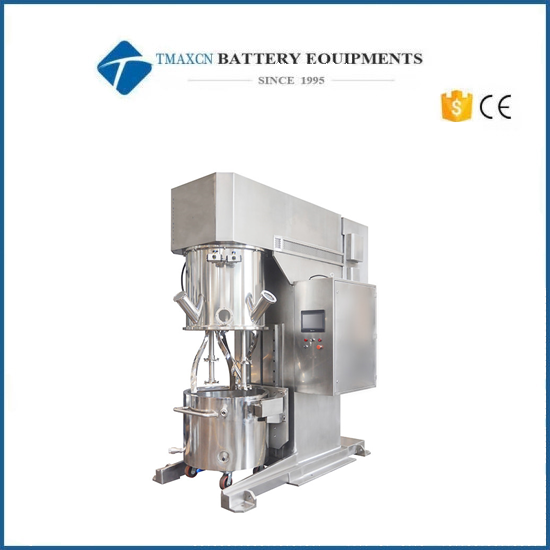

1000L Planetary Vacuum Mixer Powder & Liquid Mixing Dispersion Machine – Handles Medium to High Viscosity Glues

I. Equipment Features

Applicable Scope

The equipment is capable of mixing and dispersing powder, liquid materials, and medium to high viscosity glues, ensuring the final product is evenly blended.

II. Main Parameters

Vessel Parameters

Agitation Module

Dispersion Module

Scraper Module

· Fixed on agitator paddle

· Material: PTFE

· Rotation speed matches agitator speed

Base & Lifting Module

· Structure: Carbon steel

· Lifting: Hydraulic cylinder

· Guide: Metal guide rods

· Stroke: ≤ 1100 mm

Top Vessel Components

Control System

· Electrical cabinet for inverters and low-voltage devices

· Manual control panel with buttons, knobs, instruments

· Power Supply: AC 3×380 V ±5%, 50 Hz

· Control Mode: Electro-hydraulic

· Drive & Speed Control: VFD

· Cooling: Air-cooled & water-cooled

· HMI: Touchscreen

· Display: Digital temperature meter

· Emergency Stop Button: 1

· Alarm System: Over-temperature alarm, auto-stop, alarm-off

· Speed Display: Via touchscreen

· Power Indicator: 1

· Timer: Controls dispersion & agitation timing

· Integrated HMI-based control

Safety Interlock System

· Emergency stop disables all operations instantly

· Manual slow agitation allowed during down–beam positioning

· High-speed dispersion only allowed when beam is down

· Safety lock prevents beam lift or opening while mixing

· Vacuum anti-backflow tank prevents oil from vacuum pump

· VFD protections: Overload, over-current, over-voltage, leakage, phase-loss

Additional Details

 **Temperature Sensor**: Pt100 (for material and wall temperature measurement)

**Bearings**: Imported bearings for high-speed components; domestic bearings for low-speed parts

**Seals**: Static seals (O-ring VF); dynamic seals (mechanical seals), with mechanical seals being imported

**Lubricants**: A combination of domestic and imported lubricants for sealing systems

**Hydraulic Cylinder & Station**: Domestic-made

**Valves**: Domestic-manufactured

**Vacuum System Requirement**: Customer-provided, with a capacity of ≥45 L/s

**Vacuum Retention**: Maintains −0.098 MPa for 24 hours, remaining above −0.085 MPa

**Main Power**: 150 kW

**Equipment Weight**: Approximately 9500 kg

**Color**: Yellow

**Floor Load Capacity**: 2500 kg/m²

**Dimensions**: L3490×W1900×H2865 mm (4215 mm when lifted)

III. List of Supplied Wear Parts

IV. Supporting Conditions
