100L Stirred Ball Mill Equipment with Variable Frequency Speed Regulation

100L Stirred Ball Mill Equipment with Variable Frequency Speed Regulation

The principle of the stirred ball mill is that the main shaft drives the stirrer to rotate at high speed, causing the grinding media in the stirring bucket to move irregularly. This disordered movement generates collisions, squeezing, friction and shearing of the grinding media, thereby crushing and fine grinding the materials. The whole machine mainly consists of the stirring bucket, stirring device, frame, electrical control and other auxiliary devices (such as: It is composed of a material pumping circulation device, a water-cooled jacket device, a heating temperature control device, etc.) It is particularly suitable for wet grinding of small-scale, medium-scale and large-scale materials, with high grinding efficiency and small particle size. Dry grinding is suitable for materials with certain characteristics, such as materials that need to have certain fluidity, not easy to form plates, settle at the bottom or stick to the wall, and can well meet various process parameter requirements.

A. Application of the stirring Ball Mill

The equipment is simple, occupies a small area, has the advantages of low energy consumption and low price, and is the preferred equipment for small-batch experiments in schools and research institutions. It is widely used in the production fields of various ultrafine powders such as zirconium silicate, zirconia, electronic materials, magnetic materials, coatings, graphite and pharmaceuticals.

B. Technical Parameters

C. Product Features

1. The equipment has a simple structure, low noise, is easy to move, and does not occupy space in the working environment.

2. Compared with the principles of other ball mills, due to the different running trajectory curves of the grinding media in the stirring barrel, it features a higher stirring speed, lower power consumption, and the highest ball milling efficiency.

3. The particle size of the material can be controlled by optimizing the proportion of different balls, speed, ball milling time and other related processes to regulate the curve distribution of the fineness of the material. The operation is very flexible and practical.

4. According to the characteristics of the materials, a customized heating temperature control device can be selected to control the heating range of the materials, a water-cooled jacket device to control the cooling of the materials, and a material pumping circulation device to control the fineness of the ball-milled materials.

5. Through electrical control, the total timing, interval downtime or continuous, speed-regulating cycle can be achieved to meet various process requirements of materials.

6. The equipment can be customized. During the ball milling process of the materials in the mixing tank, inert gas protection is carried out to prevent the materials from being oxidized. Even for flammable and explosive materials, the equipment can be customized according to explosion-proof requirements.

7. According to the material characteristics, the inner wall of the mixing tank is lined with non-metallic materials (such as corundum ceramic, zirconia, nylon, polytetrafluoroethylene, polyurethane, etc.), and the outer layer of the stirring rod is made of different materials to reduce the probability of material contamination and improve the purity of the material.

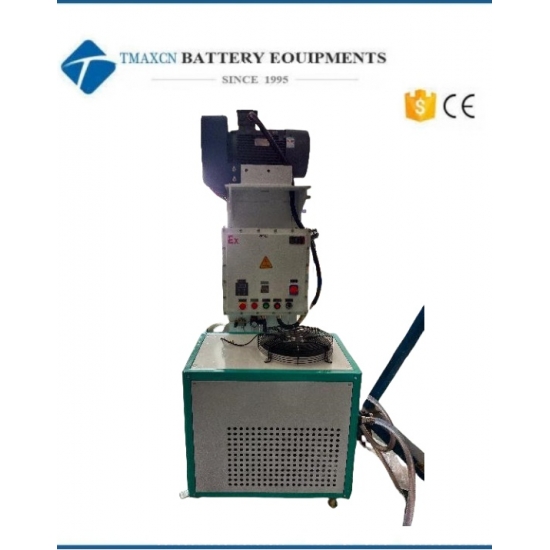

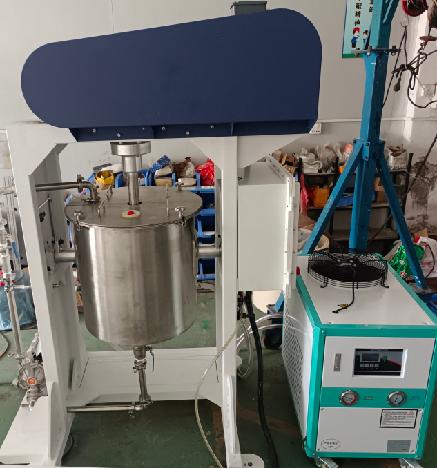

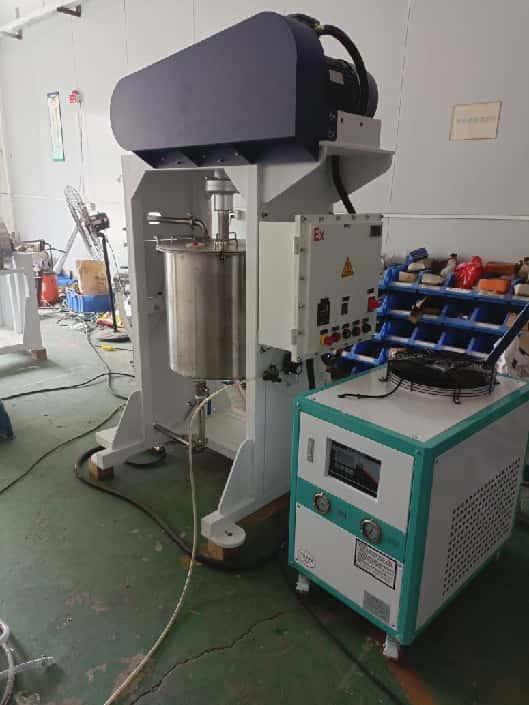

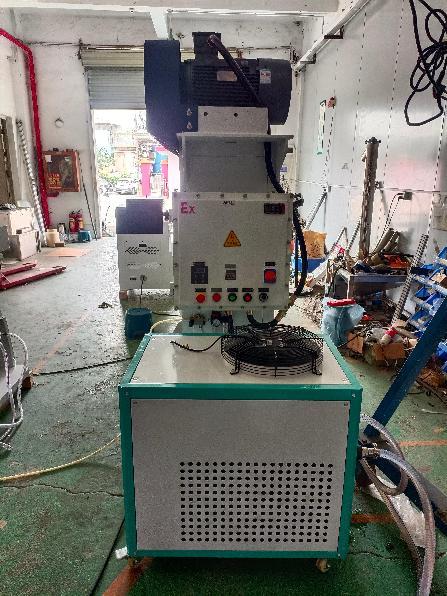

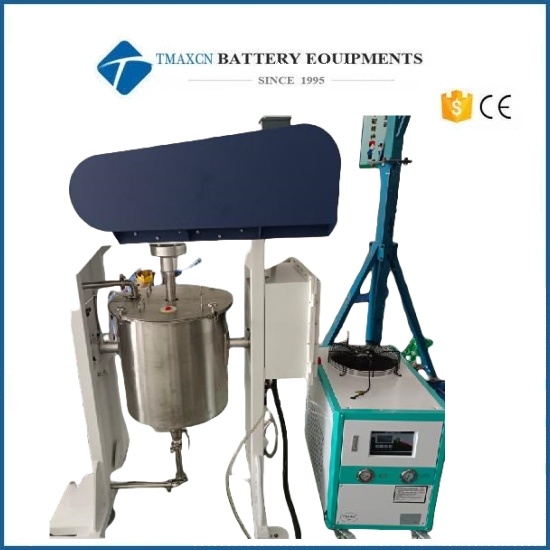

D. Pictures related to the stirred ball mill products
