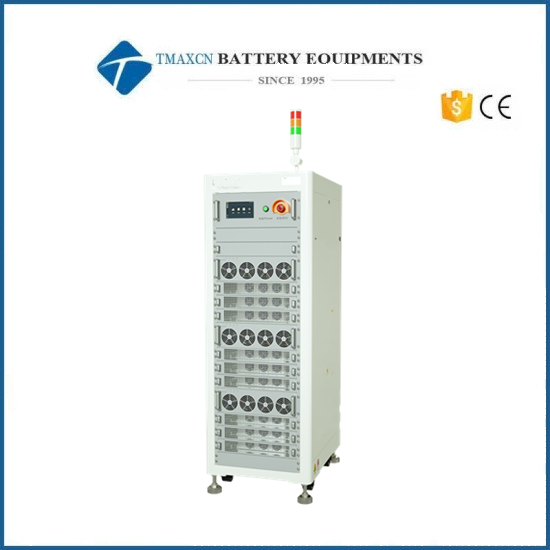

CE-6000 Specification

1、Model

1. Material code

CE-6001n-100V120A-H

2、Channels information

1. Channels quantity

Channels quantity in one unit

1

2. Main channel

Channel feature

Constant current source and constant voltage source dual closed loop control

Channel control mode

Independent control

Channel parallel connection

Support max 4 channels parallel mode. Pulse and SIM tests will be disabled in channels parallel mode.

3、Power grid side parameters

1.Input power

AC380V±15%  50/60±5Hz

2.Power factor

≥99%(Full load)

3.THDi

≤5%(Full load)

4.Input resistance

≥1MΩ

5.Input power

14.1KW

6.Input current

21.5A/single

7.Overall system efficiency(Max)

90%

8.Noise

≤65dB

9.Voltage and current sampling

Four-wire connection(same port for charging and discharging)

10.Power control module type

MOSFET

11.Input power wiring method

Three-phase-five wire system

12.Power input protection

Anti-surge, anti-silos, anti over or under frequency, anti over or under voltage, anti phase absence, etc.

4、Functions and performances

1. Voltage

Output range

Charge:0V～100V

Discharge:3V～100V

Min discharge voltage

3V

Accuracy

±0.02% of FS

Resolution

24bit

2. Current

Output range

0.6A～120A

Accuracy(independent range)

±0.05% of FS

CV cut-off current

120mA

Resolution

24bit

3. Power

Single channel output power

12KW

Whole machine output power

12KW

4. Time

Current response time

≤3ms

Current conversion time

≤6ms

Min. step time

0.1s

5. Charge/Discharge modes

Charge/Discharge modes

CCC, CVC, CC-CVC, CPC

CCD, CVD, CPD, CRD

Cut-off condition

Voltage, Current, ΔTime, Capacity, -ΔV

6. Simulation

Charge

Current, Power

Discharge

Current, Power

Switch

Support continuous switching between charge and discharge

Cut-off condition

Time, step line

Steps file lines

1,000,000

7. Pulse Mode

Charge

Current ,power

Discharge

Current, Power

Min pulse

100ms

Pulse counts

Up to 32

Charge and discharge switch

supported

Cut-off condition

Voltage, ΔTime

8. DCIR

DCIR by calculation

9. Safely protection

Software protection

Power off data protection

Offline mode function

Safety protection conditions can be set, including:voltage lower limit ,voltage upper limit ,current lower limit ,current upper limit ,delay time, etc.

Hardware protection

Anti-reverse connection, over-voltage, over-current, over-temperature, etc.

5、Data management and analysis

1. Step setting method

Form editing

2. Data report

Recording conditions

Minimum time interval: 10ms(connected with AUX channel:100ms）

Minimum voltage interval: 0.2V

Minimum current interval: 0.24A

Recording frequency

100Hz(connected with AUX channel:10Hz)

1. Database

MySQL database

2. Data output

Excel, Txt

3. Curve type

Templates available, customization supported

4. Bar code scanning

Support bar-code scanning function

Management and traceability of historical data

6、Communication

1. Host computer communication

TCP/IP protocol

2. Communication port

Ethernet

3. Communication baud rate of the testers

1M

4. Host computer communication baud rate

10M~100M adaptive

5. Communication setup

Set up a LAN(local area network) through switches and routers

6. Communication expansion(optional)

Support CAN, RS485 communication and BMS communication, with DBC configuration function

7、Environmental requirements, dimension and weight

1. Operation environment temperature

-10℃~40℃(When the temperature is 25±10℃, the accuracy error caused by temperature change is less than 0.005% of FS per degree)

2. Storage environment temperature

-20℃~50℃

3. Operation environment humidity

≤70% RH(no moisture condensation)

4. Storage environment humidity

≤80% RH(no moisture condensation)

5. Dimension W*D*H

600*800*900(mm)

Auxiliary test system(optional)

1. Temperature aux channels

Temperature range

Thermistor：-30℃~120℃

Thermocouple：-200℃~260℃

Temperature accuracy

±1℃（Length within 2m）

Temperature resolution

0.1℃

2. Voltage aux channels

Voltage range

0V~5V

Voltage accuracy

±0.1% of FS

Voltage resolution

0.1mV

3. Aux Introduction

It is used to monitor the temperature of the battery surface or the tabs during the test. The aux test data can be bound with the main voltage and current data. At the same time, the measured temperature can be used as the control condition and protection condition of the test profiles.
