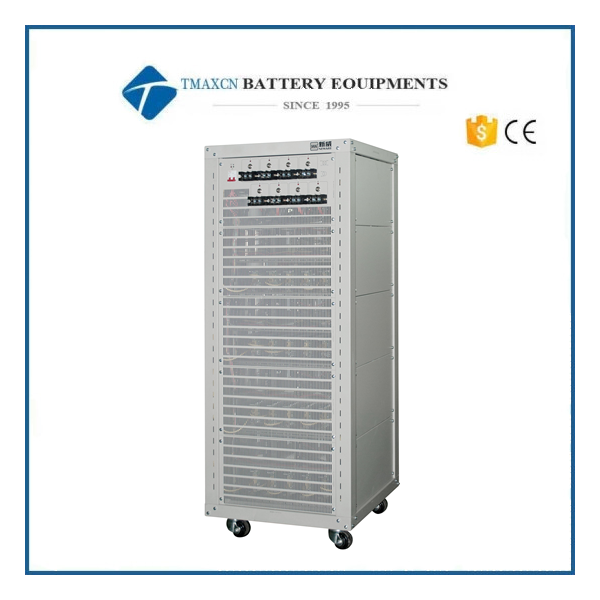

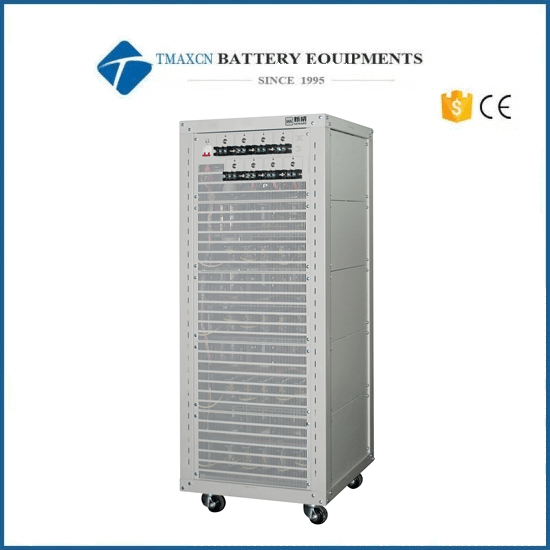

Project Index

Parameter Index

Input AC Power

AC 380V ±10% / 50Hz

Input Impedance

≥100KΩ

Input Power

7089W

Resolution

AD:16bit;DA:16bit

Channel Features

Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure

Channel Control Mode

Independent Control

Voltage

Each Channel Voltage Range

0.025mV~5V

Ll

Lowest Discharge Voltage

2V

Accuracy

± 0.1% of FS

Stability

± 0.1% of FS

Current

Each Channel Current Range

Range :0.5A~100A

Cut Off Current

0.2A

Accuracy

± 0.1% of FS

Stability

± 0.1% of FS

Power

Each Channel Max. Output Power

500W

Stability

0.2% of FS

Time

Current Rise Time

The current gets to (10%-90%) hardware rise time is 20ms

Step Time Range

1s≤Single Step Time Range≤365*24 h，

SupportTime Form: 00：00：00:00(h、min、s、ms)

Data Recording

Record Condition

Min. Record Time:100ms

Min. Record Voltage:10mV

Min. Record Current:200mA

Record Frequency

10Hz

Charge

Charge Mode

Constant Current Charge、Constant Voltage Charge、Constant Power Charge、Constant Current and Constant Voltage Charge

End Conditon

Voltage、Current、Relative Time、Capacity、Relative Voltage

Discharge

Discharge Mode

Constant Current Discharge、Constant Power Discharge、Constant Resistance Discharge

End Condition

Current、Voltage、Relative Time、Capacity、Relative Voltage

Cycle

Loop Measure Range

1~65535 times

Max Steps Per Loop

254

Nested Loop

Nested loop Function，Max Support 3 Layers

Pulse Model

Charge

Constant Current、Constant Power

Discharge

Constant Current、Constant Power

Min Pulse Width

500ms

Pulse Number

Single Pulse Step Support 32 different Pulse

Charge r To Discharge

One Pulse Step Can Support Continuous Charge And Discharge Change

Stop Condition

Voltage、 Relative Time

DCIR Testing

Support Custom Access Point And Count The DCR

Channel Parallel

Support Channel Parallel（4 channels max）,Under Parallel Without Pulse Function

Protective Function

Software Protection

l Power-down Data Protection

l Off-line Testing Function

l Setting Protection Condition，Setting Parameter：Low Voltage Limit、Upper Voltage Limit、Low Current Limit、Upper Current Limit、Delay Time

Hardware Protection

Additional Anti-reverse Protection Model

Data Output

EXCEL、TXT

Communication Interface

Ethernet Port

No. Of Channels Per Unit

8

Dimensions (W*D*H)

600*600*1000(mm)

Project Index

Parameter Index

Working Temperature

0℃~40℃

Storage Temperature

-10℃~50℃

Working Humidity

≤ 70% RH

Storage Humidity

≤80% RH
