Power Battery Tester

120V 30A Power Battery / Battery Pack Tester for Charging and discharging and Capacity Testing of Cell

  • Model Number:

    TMAX-CTS-120V30A
  • Dimension(L*W*H):

    Cutomized
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical support
  • Place of Origin:

    China
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    30 days
Product Details

120V 30A Power Battery / Battery Pack Tester for Charging and discharging and Capacity Testing of Cell



System Features

Single point independent, independent charging and discharging steps can be set for each battery test channel.

The accuracy of the equipment is 0.1%, the data recording time is 1 s / time, the fastest is 0.1 s / time, and the stability is high.

The software has powerful functions and friendly man-machine interface.

Four wire test interface ensures high measurement accuracy.

Modular design concept, easy to maintain.


Equipment Description

High precision battery test system is mainly designed for power battery / battery pack, which can meet the performance test requirements of power battery pack. The equipment has the characteristics of high power, high precision and high performance. It can charge the equipment voltage from 0 to 120 V and discharge from 120 to 3 V, and charge and discharge tests and capacity separation of batteries with various specifications from 0.01 to 30 A.


Device View

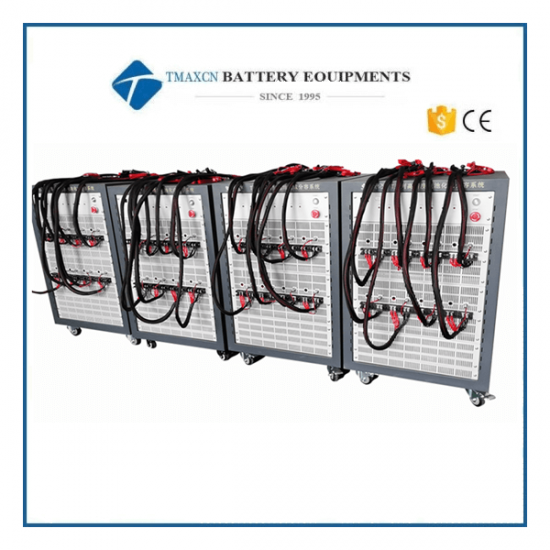

View size of single table (external dimension: length * width * height = 800 * 650 * 178mm)



 View dimension of the whole cabinet (external dimension: L * w * H = 790*950*1806mm)

Product Specification

Equipment model

CTS120V30A-01NC

Number of output channels

1 (1 channel per device)

Communication mode

RJ45 (network port) or RS485 serial port

Charging voltage

DC 0 ~ 120V charging can be used to detect and set the voltage range, the maximum voltage is 120V

discharge voltage

DC 120 ~ 3V discharge can be used to detect and set the voltage range, the minimum voltage is 3V

Charging current

DC 0.01 ~ 30A can be used to detect and set the current range, the maximum current is 30A

discharge current

DC 0.01 ~ 30A can be used to detect and set the current range, the maximum current is 30A

Voltage accuracy

±0.1%RD + 0.1%FS

Current accuracy

±0.1%RD + 0.1%FS

Voltage resolution

1mVThe minimum unit used by a device to detect or set voltage

Voltage stability

≤0.1%

Current resolution

1mAThe minimum unit used by a device to detect or set current

Current stability

≤0.1%

Power output range

0.5Pmax = Vmax * Imax

Input impedance

≧10 MΩ

Input power

AC 220 V ± 10% / 50 Hz (cabinet power supply mode: three phase five wire)

Power accuracy

±0.1%RD + 0.1%FS

Current response time

Hardware response time at full current scale:≤50ms

Time setting range

0-9999 minutes, resolution 1 minute

Time precision

≤±0.1%

Recording method

Charging recording time, discharging recording time, static recording time and global recording time

Recording frequency

1S65535S

sampling frequency

About 10ms per box

Charging mode

Constant current and voltage limiting, constant current and constant voltage, constant power charging, constant flow charging test (battery with protection board)

Charging cut-off conditions

Voltage, current, time, capacity, temperature

Discharge mode

Constant current, constant power discharge, constant flow discharge test (battery with protection plate)

Discharge cut-off conditions

Voltage, current, time, capacity, temperature

Protection function

Abnormal data recovery;

Battery reverse connection protection function;

Protection range of over-voltage, under current and over-current can be recorded;

Number of single cycle work steps

≤100 steps, with nested loop function

Continuous working hours

The power of the equipment shall meet the requirements of full load and 365 * 24-hour uninterrupted operation of all channels

Equipment noise

Less than 60dB

circuit structure

Modular structure design, easy to replace and maintain

















Software

1. The software supports various kinds of connection, such as manual suspension connection, software shutdown connection, power interruption connection, equipment communication interruption connection and abnormal stop connection;

2. It supports barcode scanning, and can scan one-dimensional code and two-dimensional code. There are scanning methods such as sequential scanning, channel skipping scanning, loading and disk scanning;

3. Local test detailed data storage, you can view the current test data and historical data of each channel at any time. There are two ways to display the corresponding data and curve. It also supports the export of excel report in single or batch form. In addition, it can set the automatic data export after the test according to the needs.

4. It supports capacity sorting and can grade sort the battery;

5. The pass / ng results can be judged according to the specified cycle capacity, voltage and time;

6. Support all kinds of work step protection and global voltage, current and temperature abnormal protection, and carry out abnormal alarm, support battery pack overcharge and over discharge protection test;

7. Support unit conversion;

8. Support database server background storage or MES docking;

9. Software offline protection;

10. The software provides free upgrades.

Operating / storage temperature

0℃40℃/-10℃50℃

Relative humidity of working / storage environment

≤70% RH /≤80% RH (no condensation)

Equipment maintenance

Non professionals are not allowed to open the case. Check the equipment joint regularly to prevent poor contact.

transport

Packaging is suitable for transportation of automobiles, ships, airplanes, trains, etc. rain proof and civilized loading and unloading should be carried out during transportation.
