Vacuum Planetary Mixer

1100mL Vacuum Planetary Centrifugal Mill for Lithium Battery& Mixer with Two jars & Independent Speed Controlled & Mixer with Two jars

  • Model Number:

    TMAX-TP1100S
  • Dimension(L*W*H):

    580L*700W*800H
  • Net Weight:

    160KG
  • Compliance:

    CE Certified
  • Warranty:

    One year limited with lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    30 day
  • contact now
Product Details

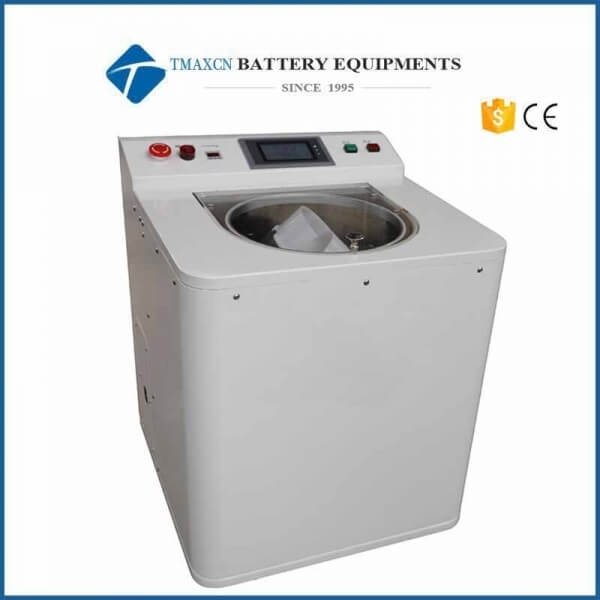

1100mL Vacuum Planetary Centrifugal Mill for Lithium Battery& Mixer with Two jars & Independent Speed Controlled & Mixer with Two jars



Here is the video link for your reference :

https://www.youtube.com/watch?v=0UbIqKmO9lU&feature=youtu.be

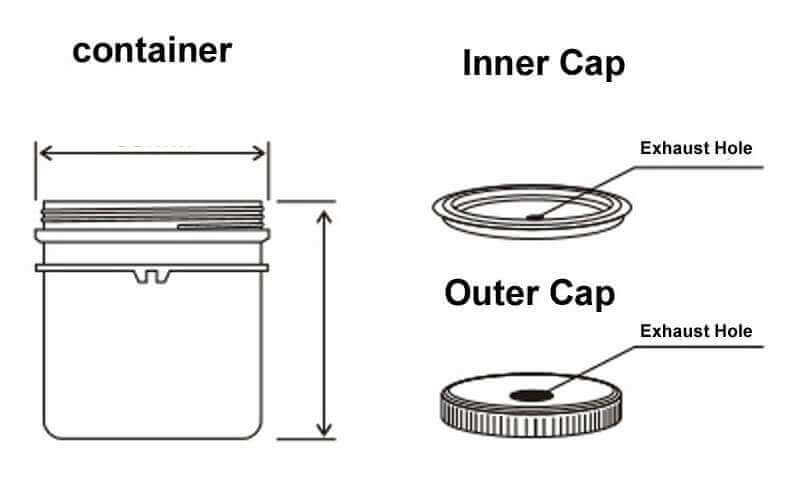

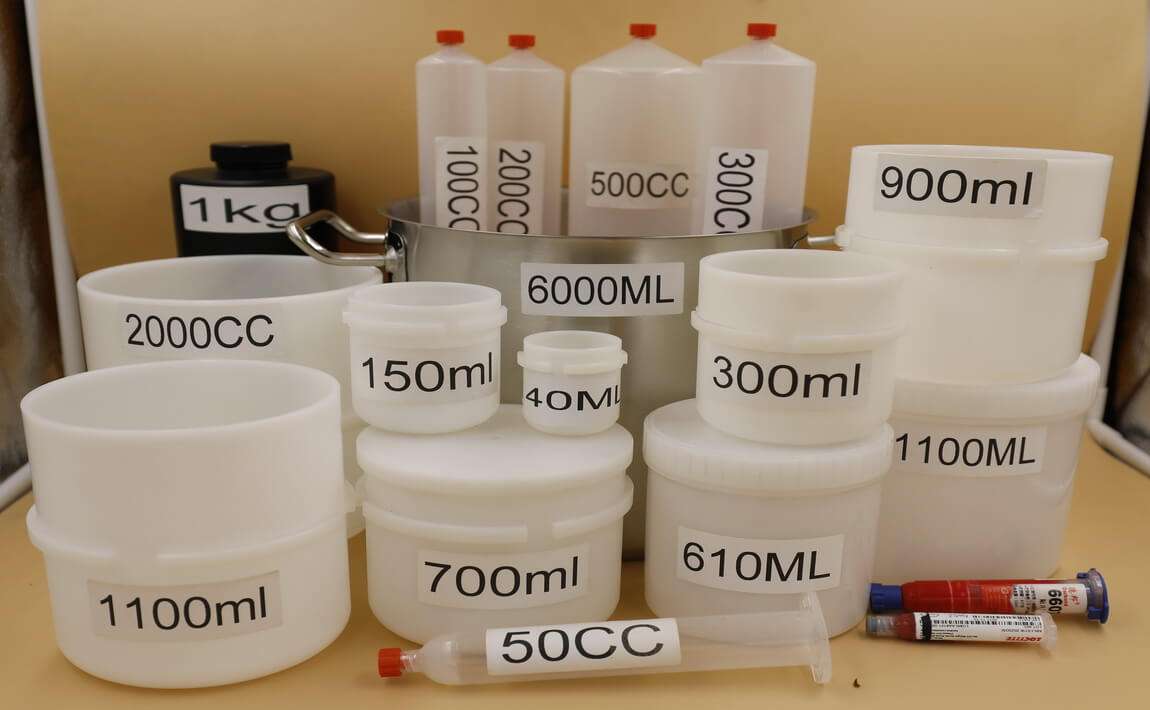

The planetary centrifugal vacuum mixer is designed for mixing and deaerating various kinds of liquid, slurry, paste, and powder materials. It could be used for mixing and homogenizing nanopowders, nanotubes, ceramics powders, battery powder/slurry, metal powders, and especially high viscosity slurry/paste. The vacuum mixing capability is integrated for best mixing results. The standard package includes containers and counter-weights.

Specification

Name

1100mL Vacuum Planetary Centrifugal Mill & Mixer

Equipment model

TMAX-TP1100S

Container Capacity

1100ml*2Cup)

The optimal capacity of mixing material

100-700ml*2Cup)

Operation  Type

Human-machine Interaction Mode

Revolution Speed

100-2000RPM

Rotation Speed

Invariablenes

Vacuum

60/Minute, APROX.-98KPa

Multi  Parameter  Group

Multi  Parameter   Group

Protection

Door Cover, Breakdown, Overload

Dimension(mm)

580L*700W*800H

Voltage

0.5-1.0KW,220V

Weight

160KG

Power Supply

Uniphase),AC220V.50-60Hz

Clamp

Option

Syringe

Max300CC


mixer machine

mixer machine

mixer machine



mixer

Our Certifications



Cooperative Brand



Hot Sale Products


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


Compact Vacuum Mixer

Packing & Delivery


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
