Vacuum Planetary Mixer

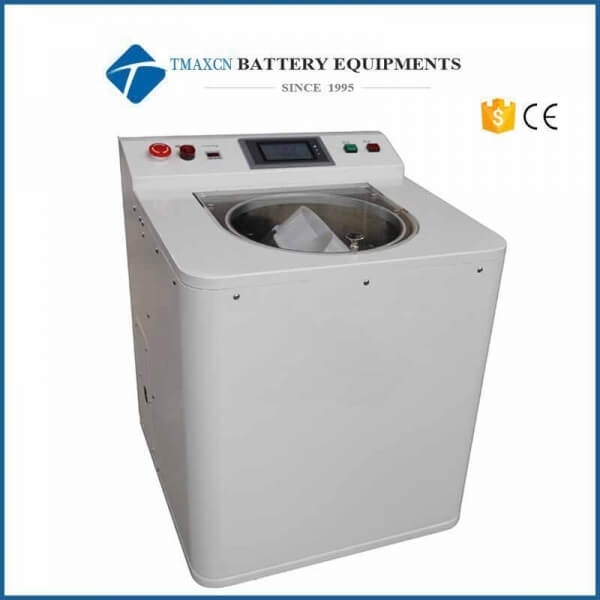

2000mL Vacuum Planetary Centrifugal Mixer & Mixer with Two jars & Independent Speed Controlled

  • Model Number:

    TMAX-TP2000S
  • Dimension(L*W*H):

    580L*715W*800H
  • Net Weight:

    180KG
  • Compliance:

    CE Certified
  • Warranty:

    One year limited with lifetime support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    20day
  • contact now
Product Details

2000mL Vacuum Planetary Centrifugal  Mixer & Mixer with Two jars & Independent Speed Controlled


Here is the video link for your reference :

https://www.youtube.com/watch?v=0UbIqKmO9lU&feature=youtu.be

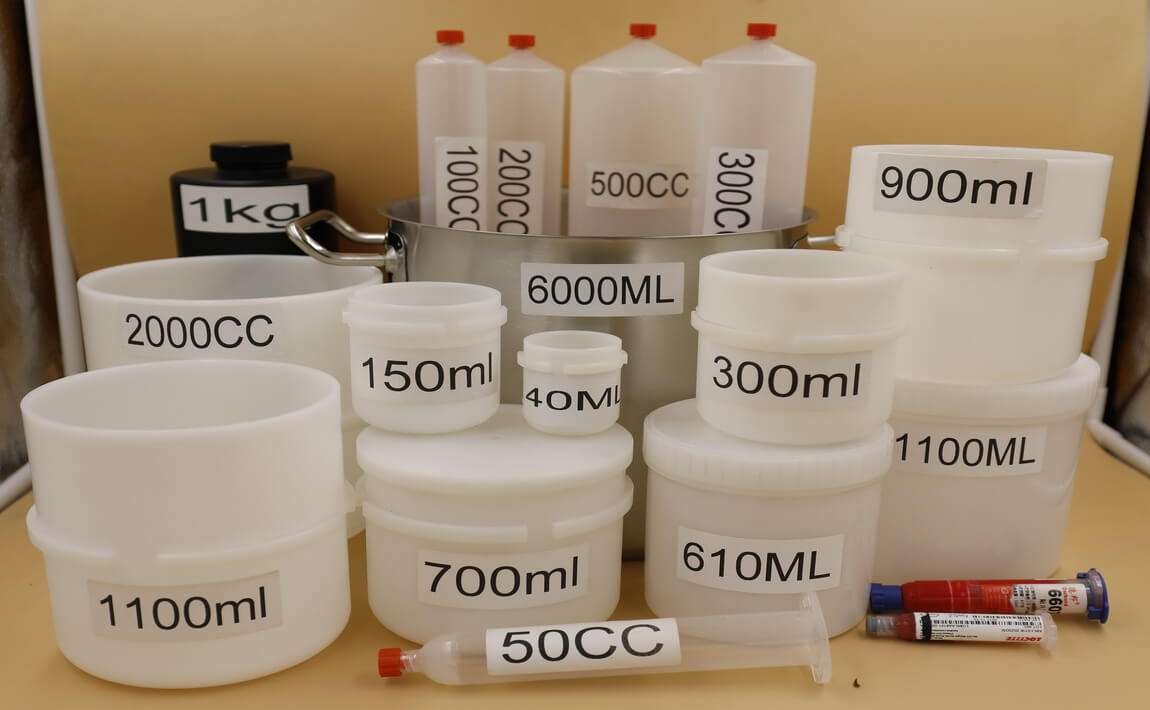

The planetary centrifugal vacuum mixer is designed for mixing and deaerating various kinds of liquid, slurry, paste, and powder materials. It could be used for mixing and homogenizing nanopowders, nanotubes, ceramics powders, battery powder/slurry, metal powders, and especially high viscosity slurry/paste. The vacuum mixing capability is integrated for best mixing results. The standard package includes containers and counter-weights.

Specification

Name

2000mL Vacuum Planetary Centrifugal Mill & Mixer

Equipment model

TMAX-TP2000S

Container Capacity

2000ml*2Cup)

The optimal capacity of mixing material

500-1300ml*2Cup)

Operation Type

Human-machine Interaction Mode

Revolution Speed

100-2000RPM

Rotation Speed

Invariablenes

Vacuum

 60/Minute,APROX.-98KPa

Multi  Parameter  Group

Multi  Parameter   Group

Protection

Door Cover,Breakdown, Overload

Dimension(mm)

580L*715W*800H

Voltage

0.5-1.8KW,220V

Weight

180KG

Power  Supply

Uniphase),AC220V.50-60Hz

Clamp

Option

Detailed Images

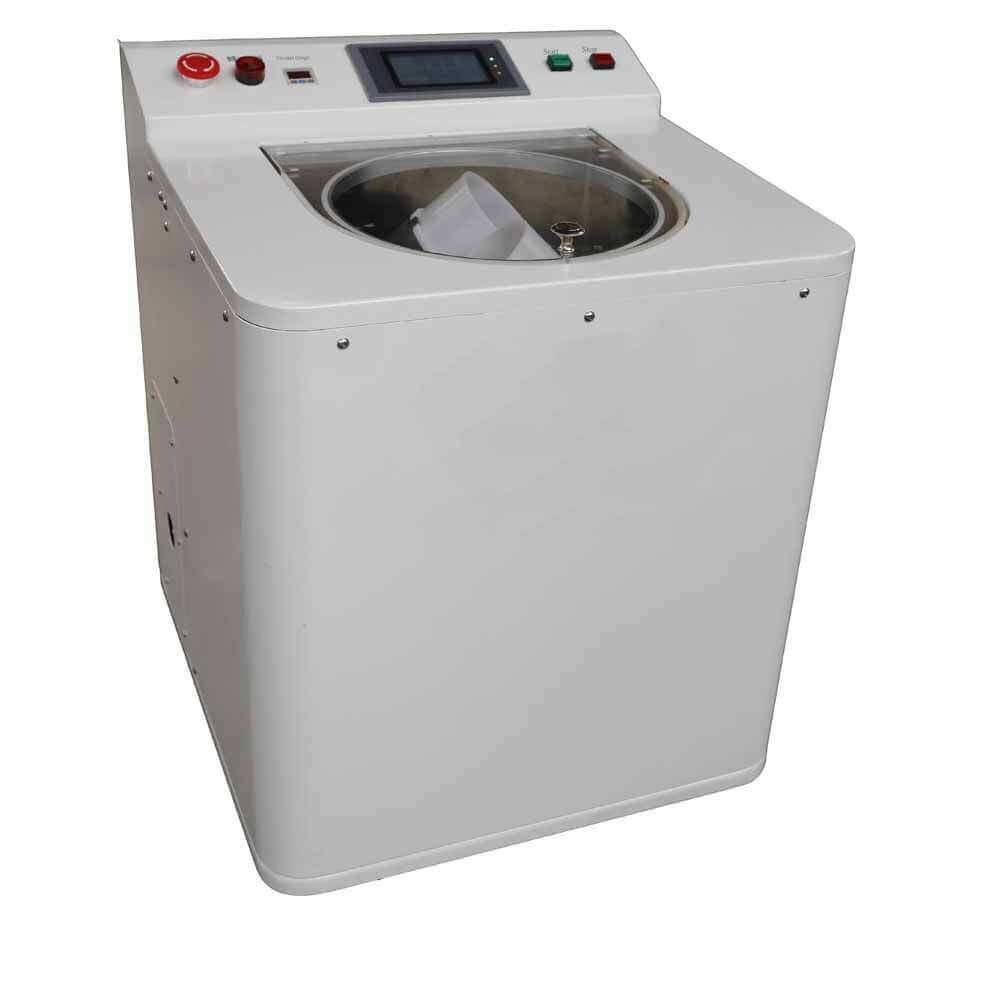

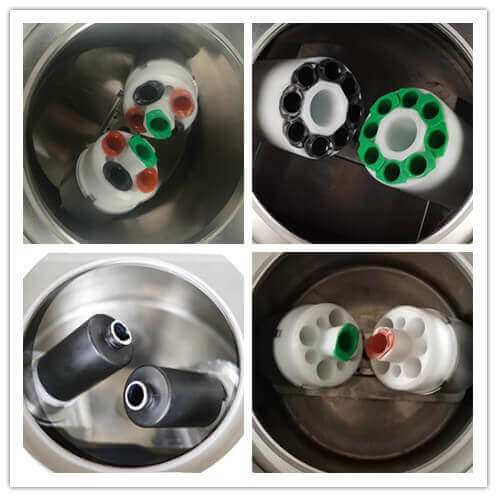

Planetary Centrifugal Mixer

Planetary Centrifugal Mixer

Planetary Centrifugal Mixer

Planetary Centrifugal Mixer

mixer

Our Certifications



Cooperative Brand



Hot Sale Products


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


Compact Vacuum Mixer

Packing & Delivery


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
