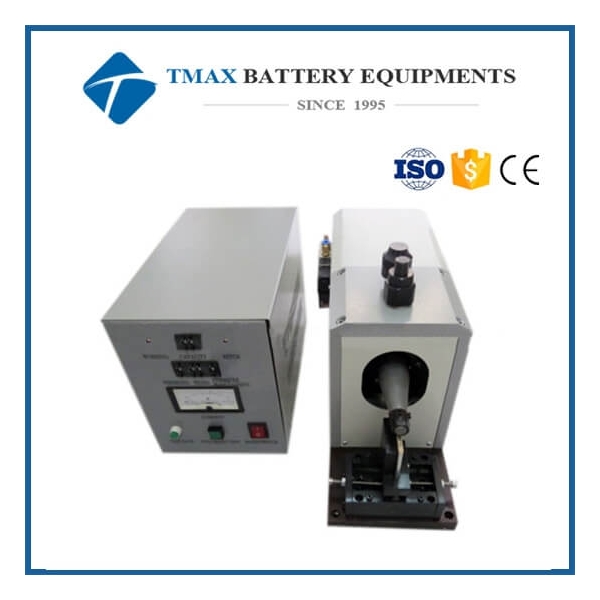

tab Ultrasonic Welder

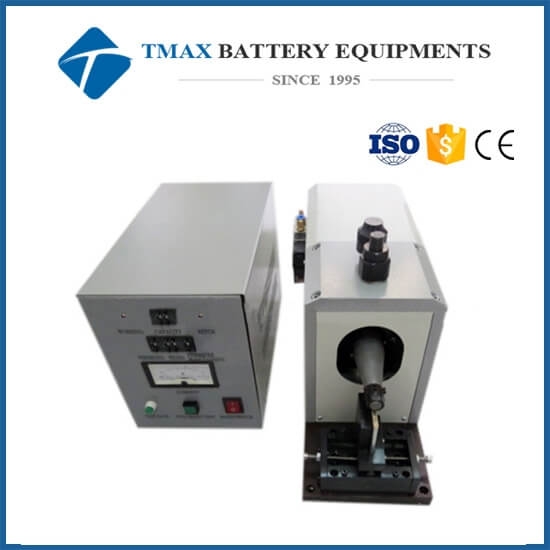

1500w Bench-top Ultrasonic Spot Welding Machine

  • Model Number:

    TMAX-USW-PC1500
  • Input Power:

    1500W
  • Dimension(L*W*H):

    450*230*160mm
  • Net Weight:

    55kg
  • Compliance:

    CE Certified/NRTL Certified
  • Warranty:

    One years limited warranty with lifetime technical support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details


1500w Bench-top Ultrasonic Spot Welding Machine


1 The TMAX-USW-PC1500 ultrasonic metal welder machine is mainly used for Al can battery Al-Ni composite strip tab welding on Al shell for finished cell with New designed mould.

2 It can also weld Al can battery Al shell weld tab before battery finished with changing aluminum shell welding mould.


We will continue to  provide better Ultrasonic Welding Machine for you.

SPECIFICATIONS:

Model

TMAX-USW-PC1500

Source voltage

110V AC or 240V AC 50/60Hz

Power

1500W

Warranty

One Year limited warranty with lifetime support

Type

Ultrasonic spot welding machine

Product dimension

450*230*160mm

Control box dimension

330*190*250mm

Package size

600*420*500mm, About 55kg

Frequency

24KHZ

Welding head material

W6M5Cr4V2 high-speed steel, with six welding points in one head.

Working stroke

15mm

 Welding time

0.5-2s

Control mode

CPU Control

Air supply

≥0.5MPa (≥72.5psi)

Welding ability

1 For copper : 0.15~2+0.15~2mm.

2 For aluminum : 0.2~3+0.2~3mm.

3 For Nickel : 0.1~1.2+0.1~1.2mm.

Main accessories

1 “Welding head”-6pcs, 2 “Connect line”-2pcs, 3”Foot pedal”-1pcs

4 “Power line with customized plug”-1pcs,

5 “Gas-pressure meter”-1pcs
