Muffle Furnaces

1600°C 16x12x12" 40-Segment Muffle Furnace w/ PC Interface

  • Model Number:

    TMAX-1600Muffle
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    15 day
  • contact now
Product Details

1600°C 16x12x12" 40-Segment Muffle Furnace w/ PC Interface

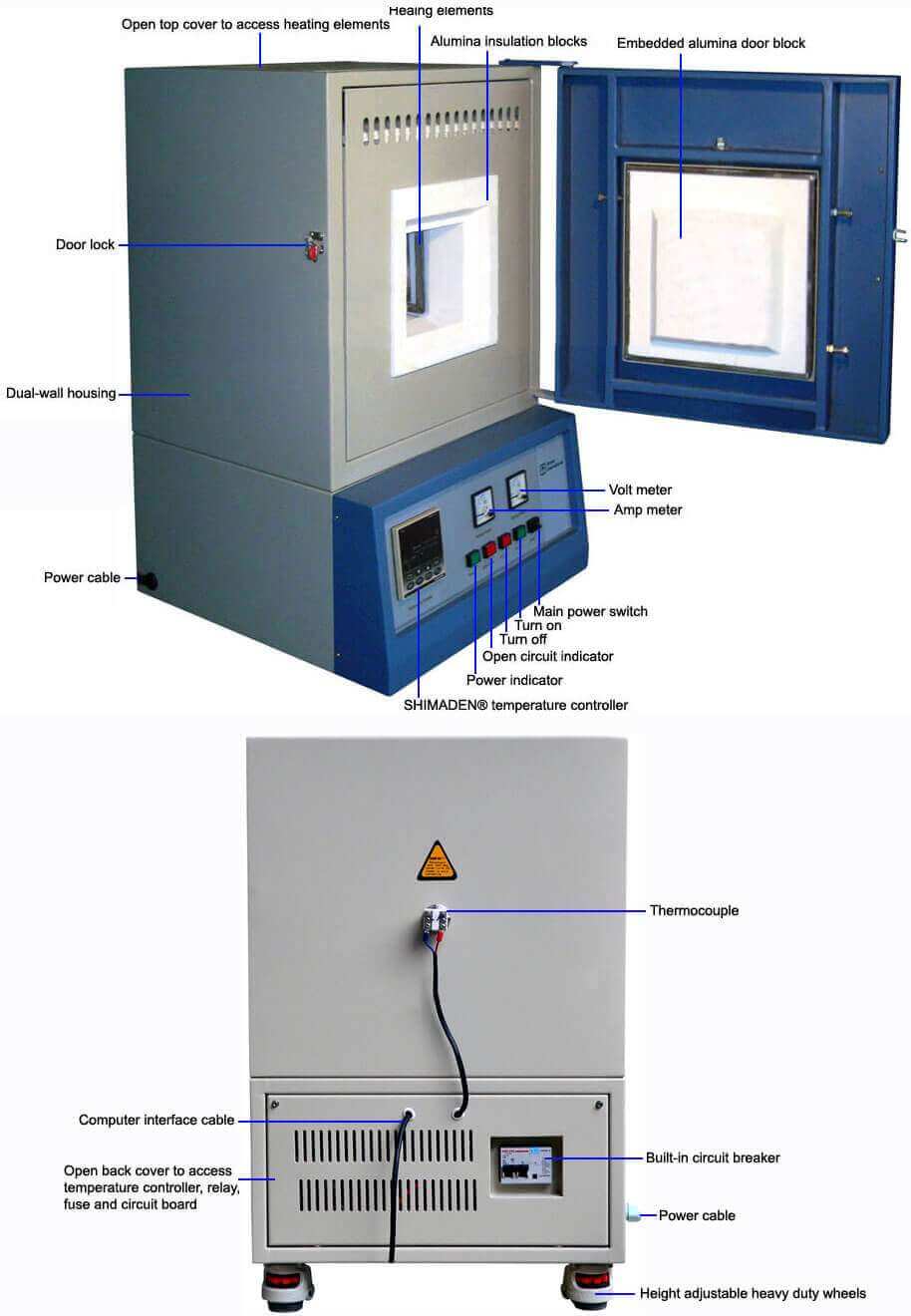

TMAX-1600Muffle muffle furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and molybdenum silicide (MoSi2) heating elements. A double walled steel internal housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.


Here is the video link for your reference:

https://www.youtube.com/watch?v=7IXIf4sPP10&feature=youtu.be

Features

1        Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.

2        Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.

3        Built-in computer interface.

4        Long life type B thermocouple.

5        CE compliant

Safety

1        Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.

2        Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Muffle Furnace

General specifications

 Electrical requirements

110-240VAC, 50/60Hz, single phase

 Min. working temperature

 300°C (572°F) recommend at least 800°C for longer heating element life

 Max. working temperature

 1600°C (2912°F)

 Max. constant working temperature

 1500°C (2732°F)

 Refractory lining

 Mitsubishi (Japan) high quality 1700 grade fiber alumina

 Heating element type

  Molybdenum Silicide (MoSi2)

 Thermocouple type

 B (reaches 2 inches into the chamber from the back)

 Temperature controller

 Shimaden fp93 (Japan) with 4 programs and
 40 segments (ie. 4 x 10 segments or 2 x 20 segments)


 Max heating / cooling rate

 < 15°C (59°F) / min

 Temperature precision

 +/- 1°C

 CE compliance

 Yes


Detail specifications

 Chamber size (DxWxH)

 16x12x12"

 Usable chamber space (DxWxH)

 14x11x11.5"

 Installed heating element (pc)

 10

 Maximum output

 13 kW

 Furnace dimensions (LxWxH)

 26x29x39"

 Shipping dimensions (LxWxH)

 36x32x56"

 Net weight (Lb)

 600

 Shipping weight (Lb)

 750



Standard Package



Part description





  Quantity





Part image



muffle furnace

 1 pc



 Type B thermocouple

 1 pc

 Stainless steel tongs

 1 pc

 Spare heating element

2 pcs



 Alumina thermal cushion block

 1 pc

 Thermal gloves

 1 pair

 Spare fuse

2 pcs

 USB/RS485 computer interface kit

 1 set







1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.

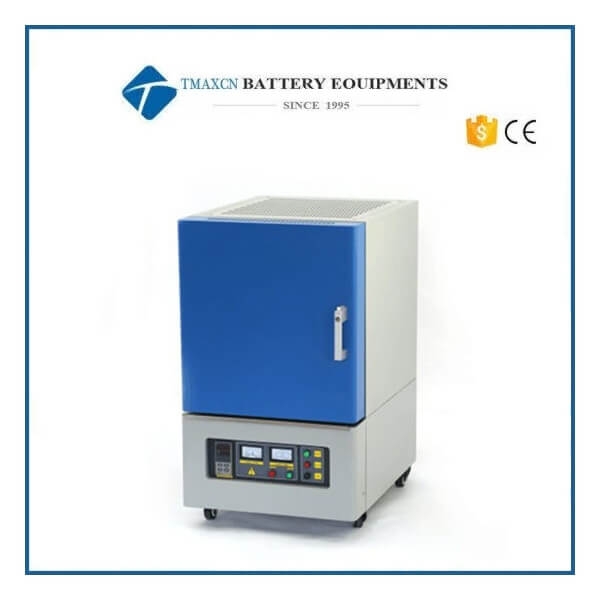

laboratory muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
