1700°C 40-Segment Muffle Furnace w/ PC Interface

  • Model Number:

    TMAX-1700Muffle
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    15 day
  • contact now
Product Details

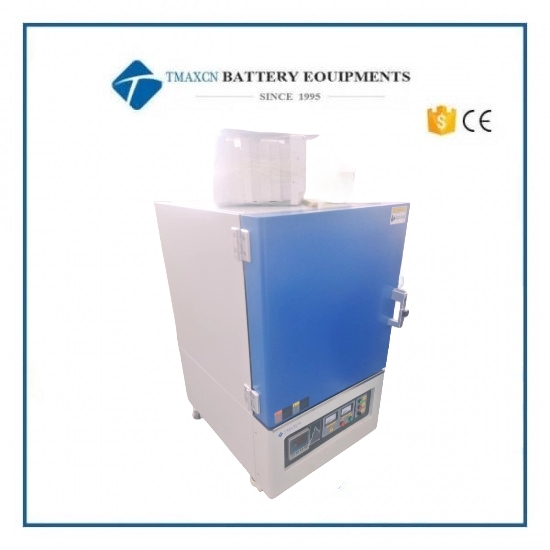

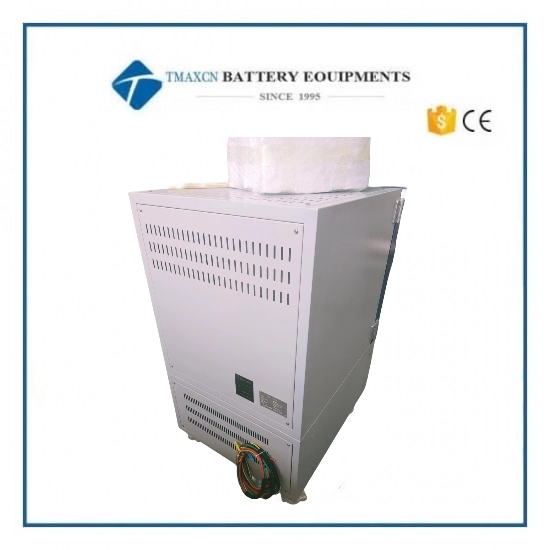

1700°C 40-Segment Muffle Furnace w/ PC Interface

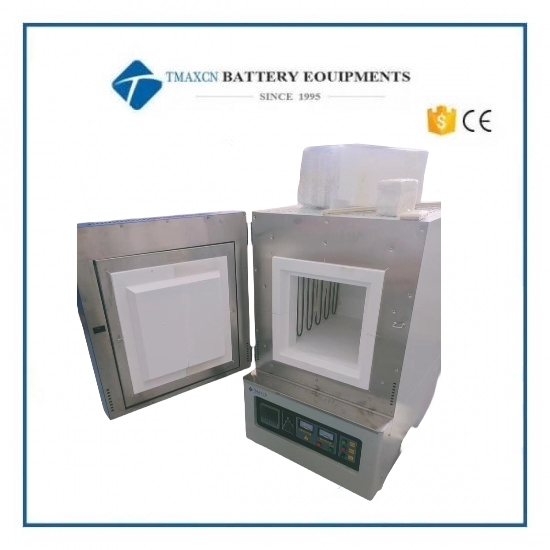

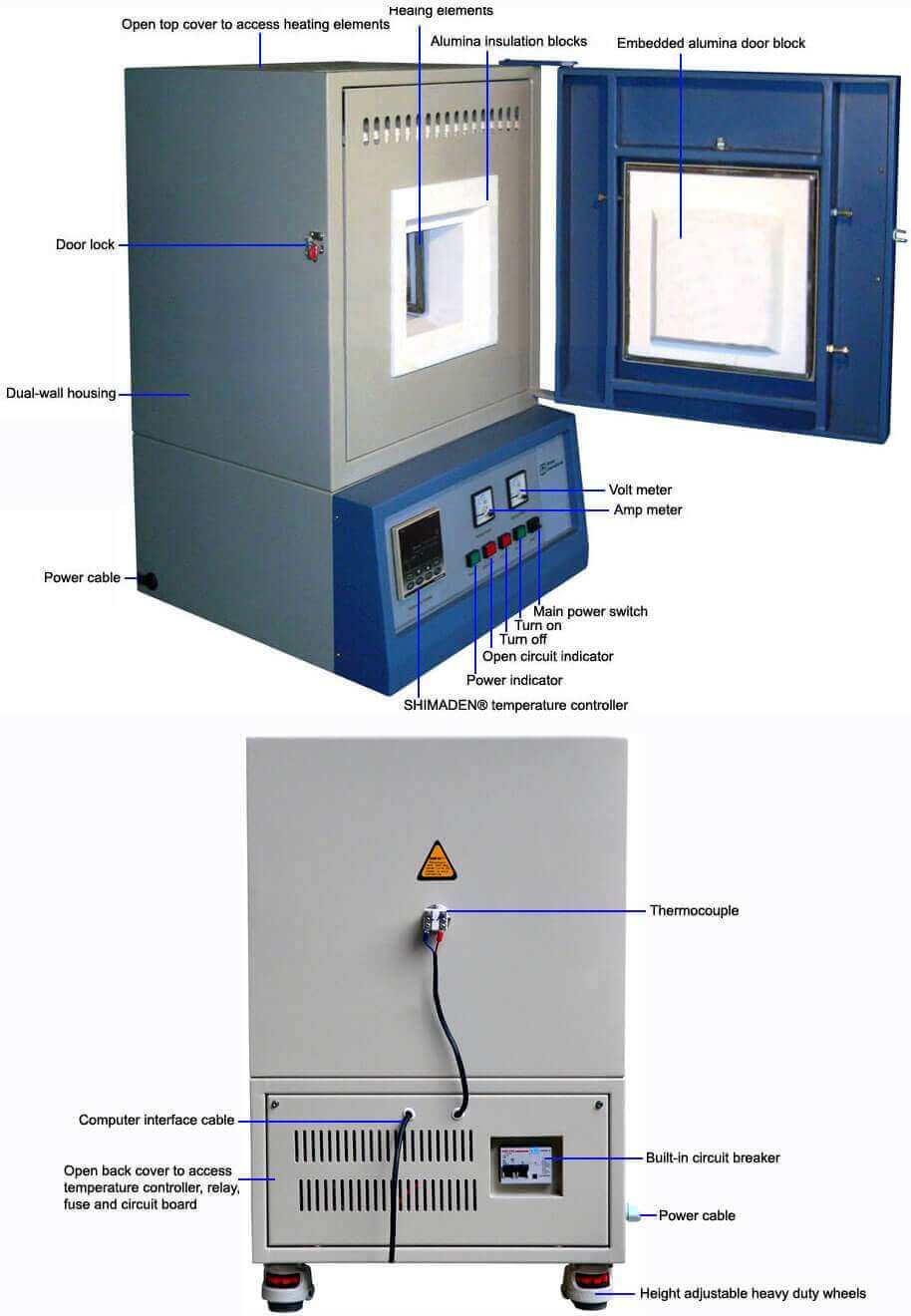

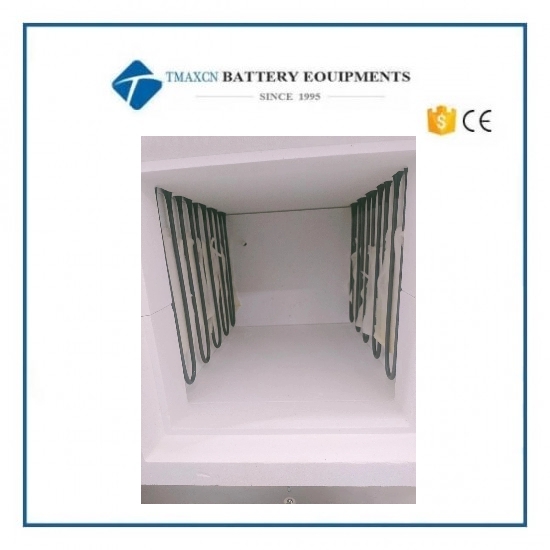

TMAX-1700Mufflemuffle furnaces feature a chamber with Mitsubishi (Japan) high quality grade 1800 alumina fiber insulation and molybdenum silicide (MoSi2) heating elements. A dual-wall steel housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.


Features

1        Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.

2        Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.

3        Built-in computer interface.

4        Long life type B thermocouple.

5        CE compliant

Safety

1        Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.

2        Power failure protection resumes furnace operation right after the point of failure when power is reestablished.



General specifications

 Electrical requirements

110-240VAC, 50/60Hz, single phase

 Min. working temperature

 300°C (572°F) recommend at least 800°C for longer heating element life

 Max./constant working temperatures

 1700°C (3092°F) / 1600°C (2912°F)

 Refractory lining

 Mitsubishi (Japan) high quality grade 1800 fiber alumina

 Heating element & thermocouple type

 Molybdenum Silicide (MoSi2) / B-type

 Temperature controller

 Shimaden fp93 (Japan) with 4 programs and
 40 segments (ie. 4 x 10 segments or 2 x 20 segments)


 Max heating / cooling rate

 < 15°C (59°F) / min

 Temperature accuracy

 +/- 1°C

 CE compliance

 Yes


Size comparison

 Chamber size (DxWxH)

 6x6x6"

 12x8x8"

 16x12x12"

 Usable chamber space (DxWxH)

 4x5x5.5"

 10x7x7.5"

 14x11x11.5"

 Chamber capacity (cu ft)

 0.13

 0.44

 1.33

 Installed heating element (pc)

 4

 8

 10

 Maximum output

 3 kW

 7 kW

 13 kW

 Unit/shipping dimensions (LxWxH)

 22x21x34"/30x29x42"

 26x29x39"/30x37x47"

 26x29x39"/30x37x47"

 Unit/shipping weight (Lb)

 230/300

 550/660

 660/800



Standard Package



Part description





  Quantity





Part image



muffle furnace

 1 pc



 Type B thermocouple

 1 pc

 Stainless steel tongs

 1 pc

 Spare heating element

2 pcs

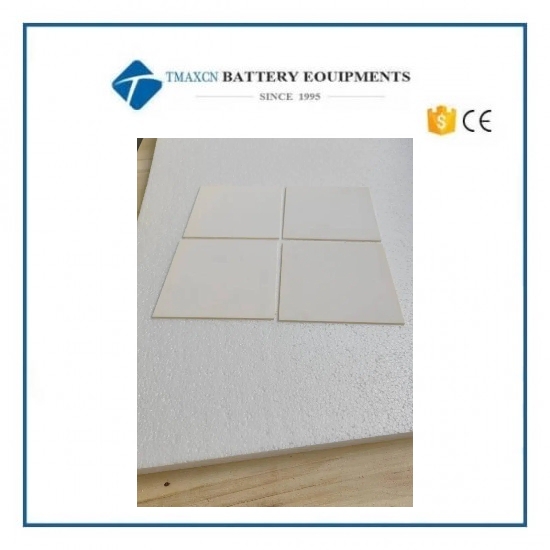

 Alumina thermal cushion block

 1 pc

 Thermal gloves

 1 pair

 Spare fuse

2 pcs

 USB/RS485 computer interface kit

 1 set







1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


laboratory muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.






inquiry now

    We will give you a quotation within 24 hours. give you a quotation within 24 hours.

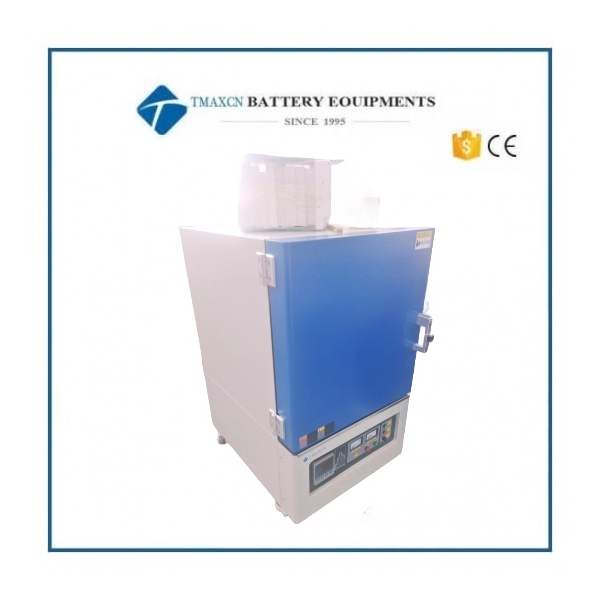

      1700°C 40-Segment Muffle Furnace w/ PC Interface
