Muffle Furnace

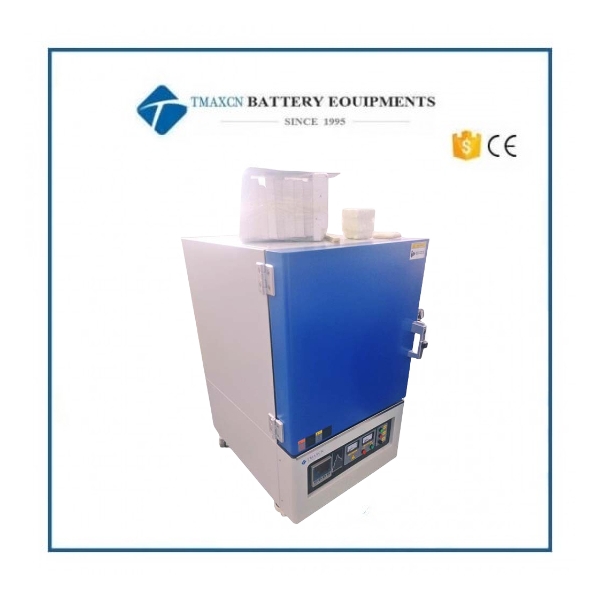

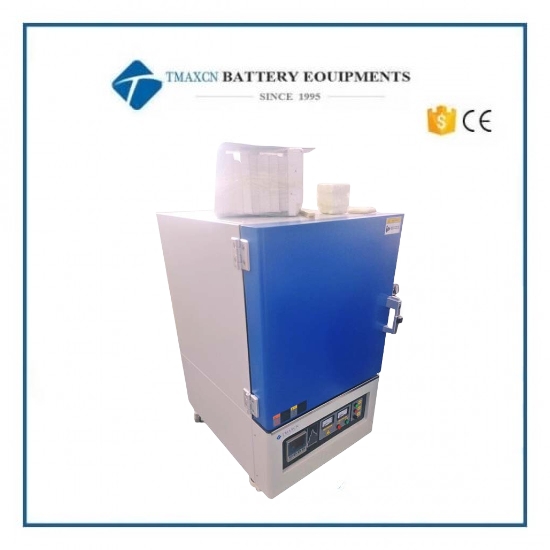

1800°C 7x6x6" Muffle Furnace w/ Kanthal (Sweden) Heating Element

  • Model Number:

    TMAX-1800Muffle
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    15 day
  • contact now
Product Details

1800°C 7x6x6" Muffle Furnace w/ Kanthal (Sweden) Heating Element

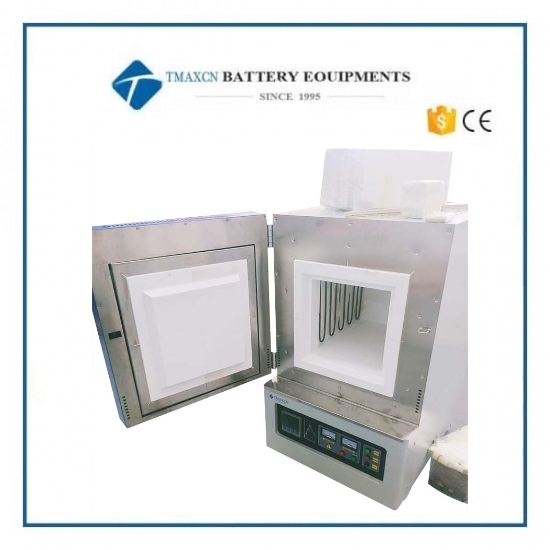

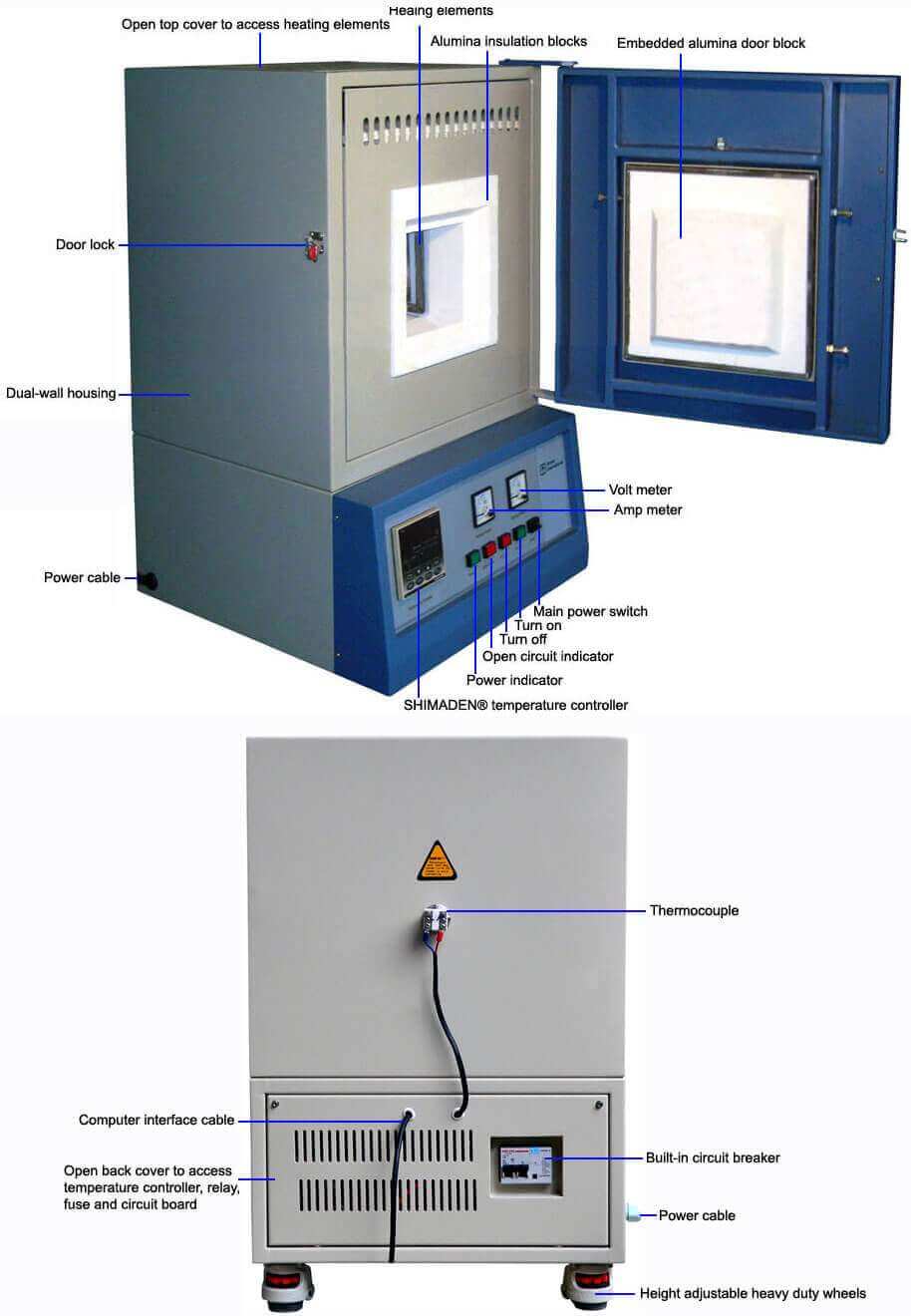

TMAX-1800Muffle muffle furnaces feature a chamber with Mitsubishi (Japan) high quality grade 1900 alumina fiber insulation and the famous Kanthal (Sweden) molybdenum silicide (MoSi2) heating elements. A dual-wall steel housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.


Here is the video link for your reference:

https://www.youtube.com/watch?v=7IXIf4sPP10&feature=youtu.be


Features

1        Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.

2        Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.

3        Built-in computer interface.

4        Long life type B thermocouple.

5        CE compliant

Safety

1        Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.

2        Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Muffle Furnace

Specifications

 Chamber vs usable size (DxWxH)

 7 x 6 x 6" (0.15 cubic foot) / 5 x 5 x 5.5"

 Max. working temperature

 1800°C (3272°F) for less than 5 hours

 Refractory lining

 Mitsubishi (Japan) high quality grade 1900 fiber alumina

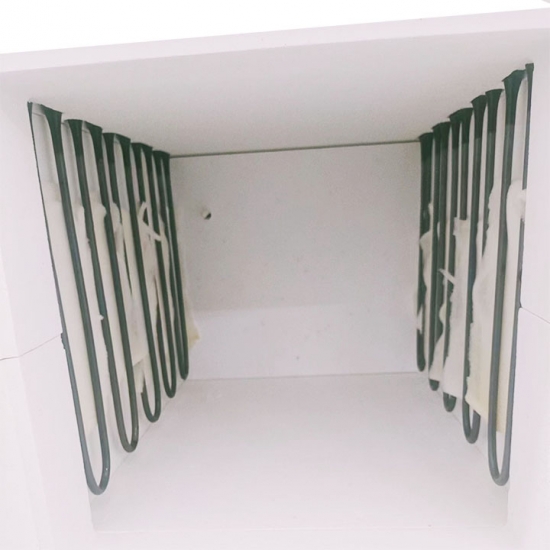

 Heating element

 Kanthal (Sweden) grade 1900 Molybdenum Silicide (MoSi2), 6 installed

 Thermocouple type

 B or PtRh40-PtRh20 (optional)

 Min. working temperature

 300°C (572°F)

 Max. constant working temperature

 1700°C (3092°F) or 1750°C with PtRh40-PtRh20 (optional)

 Temperature controller

 Shimaden fp93 (Japan) with 4 programs and
 40 segments (ie. 4 x 10 segments or 2 x 20 segments)

Eurotherm temperature controller (optional)

 Max heating / cooling rate

 1200°C and below: <30°C/min, 1200°C+: < 15°C/min

 Temperature accuracy

 +/- 1°C

 Input

 208-240v AC, 50/60Hz, single phase

 Maximum output

 4.5 kW

 Unit/shipping dimensions (WxDxH)

 24 x 22 x 34" / 30 x 29 x 42"

 Shipping weight

 300 Lb

 CE compliance

 Yes



Standard Package



Part description





  Quantity





Part image



muffle furnace

 1 pc



 Type B thermocouple

 1 pc

 Stainless steel tongs

 1 pc

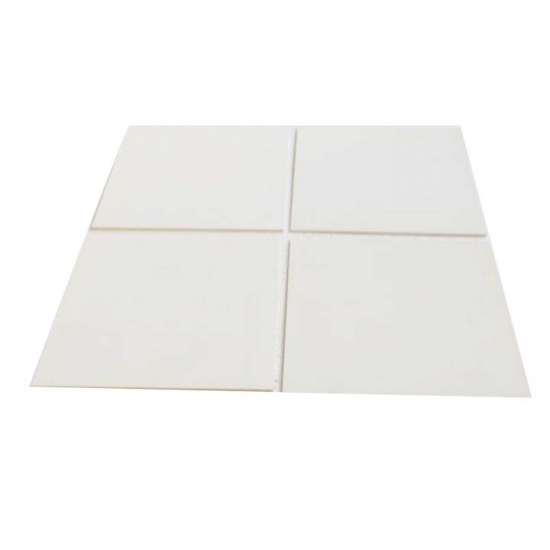

 Alumina thermal cushion block

 1 pc

 Thermal gloves

 1 pair

 Spare fuse

2 pcs

 USB/RS485 computer interface kit

 1 set








1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


laboratory muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
