Furnace Construction

High purity fibrous alumina insulation for maximum energy saving - 30% less power consumption than other brands.

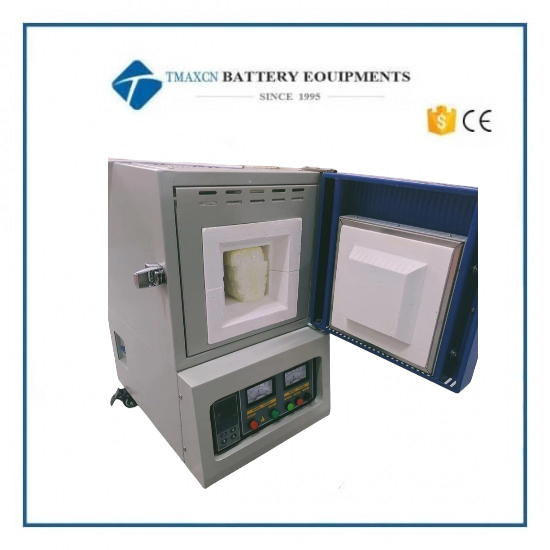

Chamber Size

1.     Size: 4"x4"x4"  or 100x100x100 mm

2.     Capacity: 65 cubic-inch or 1 liter

Power

1.     110V version: 950 W (15A Fuse) ( power cord is included )

2.     220V version: 1.2KW(10A Fuse)

Voltage

AC 110V or AC 220V 50/60 Hz  -- please select the voltage in the option bar

Operating Temperature

1.     1000°C max continuously

2.     1100°C max for an hour

3.     1200°C max for 30 minutes

Max. Heating Rate

30 °C /min

Temperature Controller

1.     PID automatic control and auto-tune function.

2.     30 programmable segments for precise control.

3.     Built in protection for the over-heating and broken thermocouple.

4.     Large digital control panel (48 x 96 mm) for easy operation.

Temperature Accuracy

+/- 1 °C

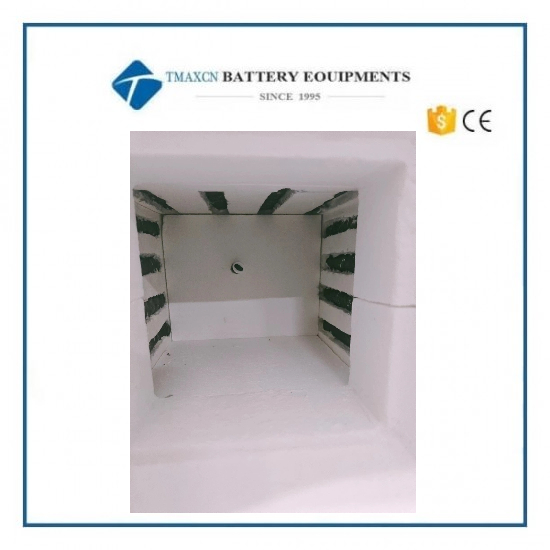

Heating Elements

Fe-Cr-Al Alloy doped by Mo

Thermocouple

K type

Overall Dimensions

250x200x380 (DxWxH)

Net Weight

~ 8Kg

Warranty

One year limited warranty with lifetime support

Compliance

 CE Certified

Application Notes

With the small footprint, low weight and low power requirement, it can be easily accommodated in a glove box and heat treat samples under protective gas.

Warnings

1.     Toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision. Please put furnace into fume hood for better safety.

2.     Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
