Specifications

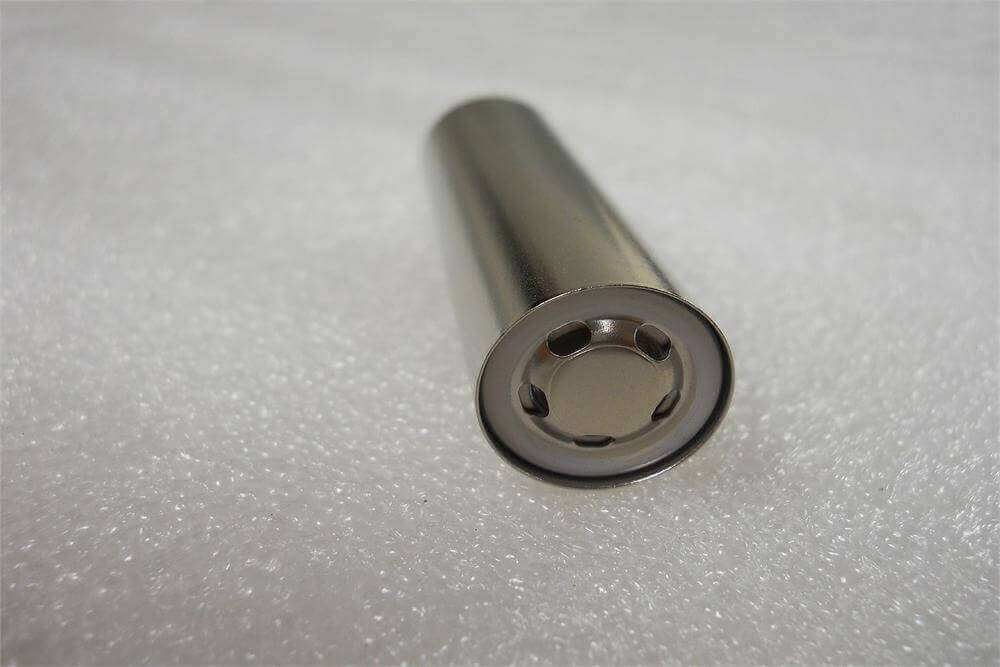

Cap

   Cap with Built-in PTC Thermistor for overcurrent protection

Dimensions (Dia x Height)

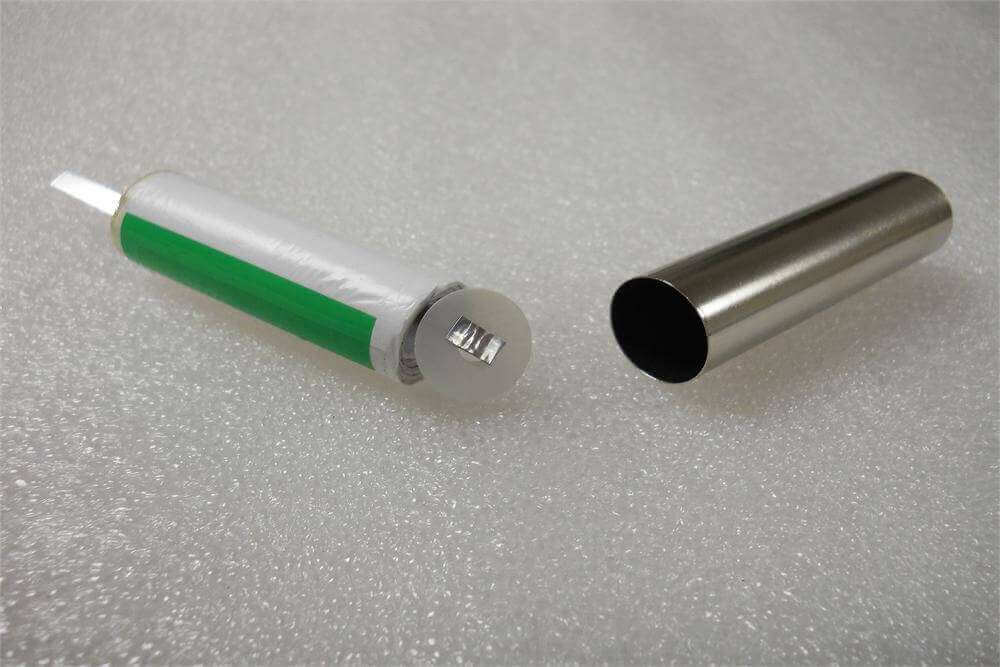

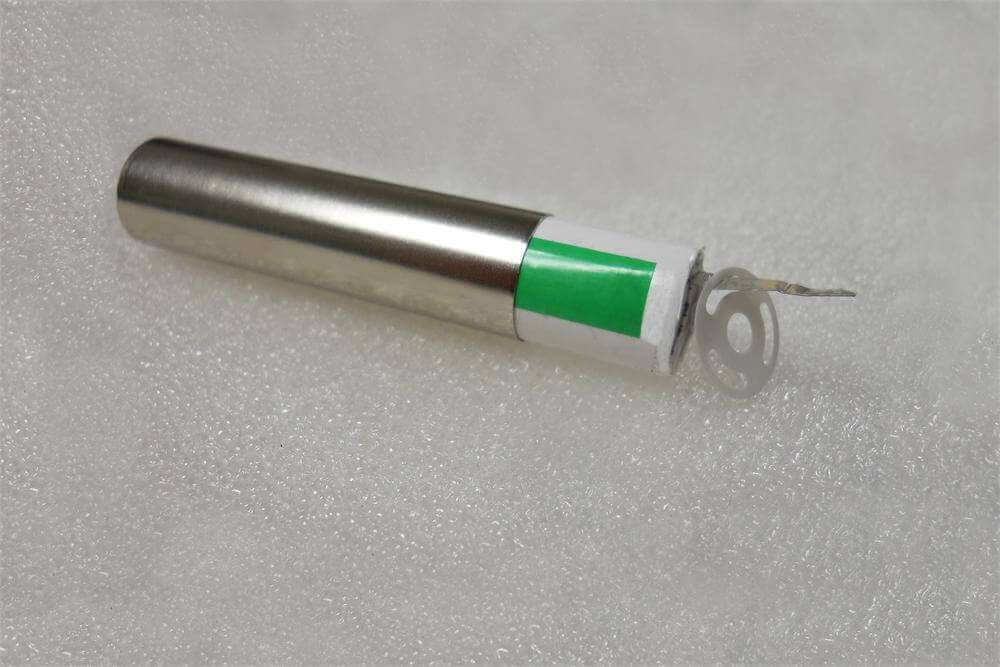

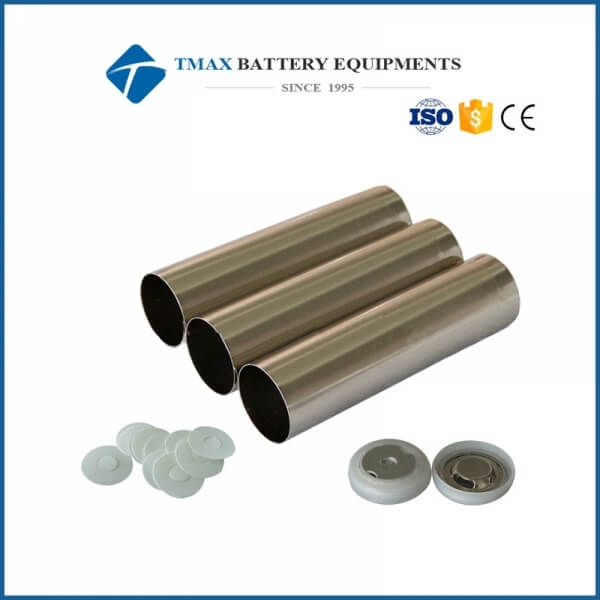

• Case: 18mm(OD) x 17.5mm(ID) x 67mm(H)
• Top Cap: 17.5mm(D) x 4.05mm(H)
• Top Insulator: 12.5mm(D) x 0.19mm(H)


• Bottom Insulator: 12.5mm(D) x 0.19mm(H)



Materials

• Case and cap are made of  Nicke plated A3 steel
• Seal O-ring and spacer are made of nylon
• Insulating gasket is made of PET

Weight

    9.50 g/pcs

Note

Safety valve's open pressure: 2.5MPa (the cap valve will open to release interior high pressure -- if over 2.5MPa -- to ensure the can does not explode)
