Model

EQ-SC-18650-TF

EQ-SC-18650-Qz

Dimensions (Dia. x Height)

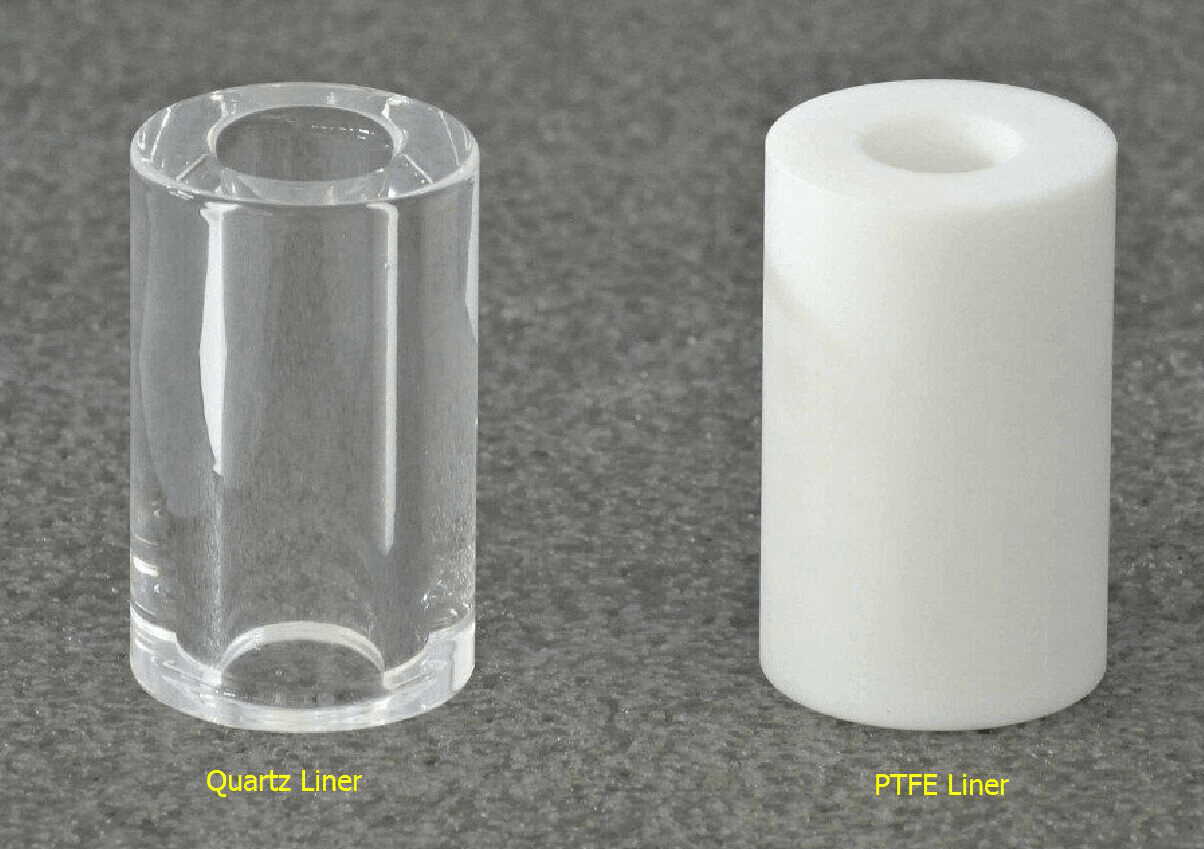

1  ID of PTFE Body (liner): 18mm

2  Height of PTFE Body: 65mm

1  ID of Quartz Body (liner): 19mm

2  Height of PTFE Body: 65mm

Material

Caps: Full Stainless steel 304 end caps
Body liner: Electrolyte corrosion-proof PTFE liner can withstand temperature up to 250ºC
O-ring: Sealed by electrolyte corrosion-proof PTFE O-rings

Caps: Full Stainless steel 304 end caps
Body liner: Transparent quartz body allows you perform In-situ Laser Raman Spectroscopy.
O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings

Design

1  Easy assembling with only four cap mounting screws
2  Easy to separate for cleaning after the test
3  Space saving, compact design allows you put it into the glove box

4  Click the images in below for the detailed illustration of this cell components

Option

Ant-corrosive Au coating on the top & bottom stainless steel caps is an option.
