Pneumatic Welder

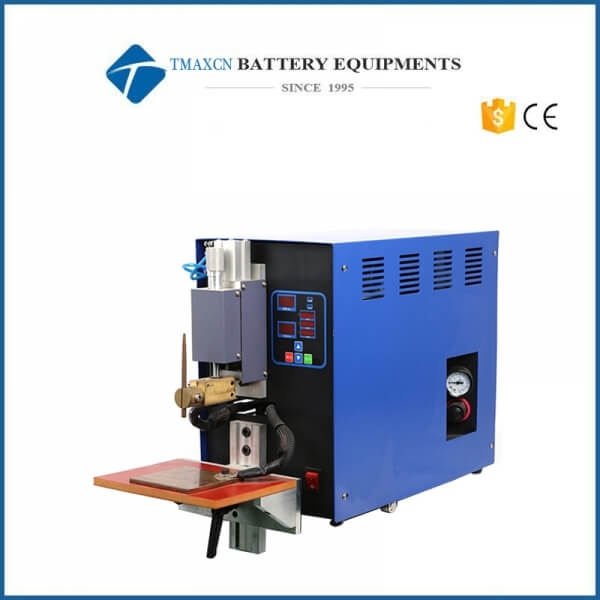

18650 Cylinder Cell Single Point Pneumatic Welder

  • Model Number:

    TMAX-MSK-330A
  • Input Power:

    12KW
  • Dimension(L*W*H):

    32cm(L) x 50cm(W) x 50cm(H)
  • Net Weight:

    50kg
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

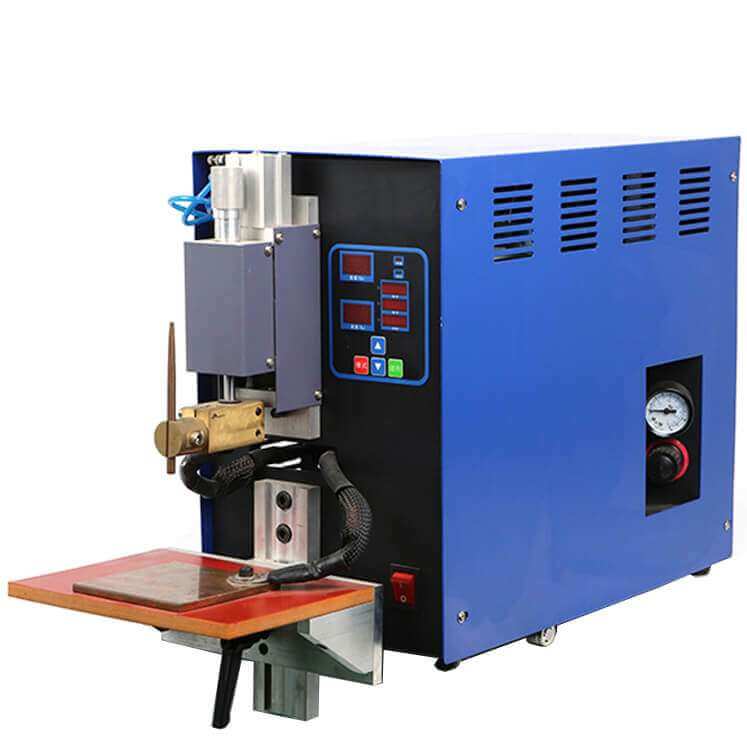

18650 Cylinder Cell Single Point Pneumatic Welder


TMAX-MSK-330A Precise Pneumatic Single Point Welding Machine is specifically designed for professional Li-ion Battery Research. It is mainly used for welding the cylinder core's negative terminal (Nickel tab) to the bottom of the cylinder case. A Diameter 2mm x 180mm length welding needle is easily inserted into the cylinder case to weld at the bottom. This machine is controlled by the micro controller,  which is very easy to operate and can provide stable performance.



Power Supply

110-240V, Single Phase 50/60Hz

Max. Power

10KW

Air Pressure Range

0.1 - 0.8 Mpa ( air compressor is required, please order at related product below )

Welding Current

0-99A

Welding Thickness

0.03 - 0.25mm

Operation Temperature

-20 - 40

Controller

Controlled by microcontroller,achieve monopulse, dipulse, multiple-pulse welding

Pressure

The pressure applied on the welding needle can be adjusted independently and easy to operate

Design

        Unique Photoelectric switch design

       Good appearance, small size and light weight

        Welding spot looks beautiful,free spark, stable welding current

Weight

50 kg

Product Dimensions

35cm(L) x 50cm(W) x 50cm(H)

Warranty

Two years limited with lifetime support
