Dip Coater

200C Benchtop Dip Coating Equipment Machine With Discounted Price

  • Model Number:

    TMAX-KJ013O

  • Compliance:

    CE Certified

  • Warranty:

    One Year limited warranty with lifetime support

  • Shipping Port:

    Xiamen

  • MOQ:

    1

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

200C Benchtop Dip Coating Equipment Machine With Discounted Price



Product Overview

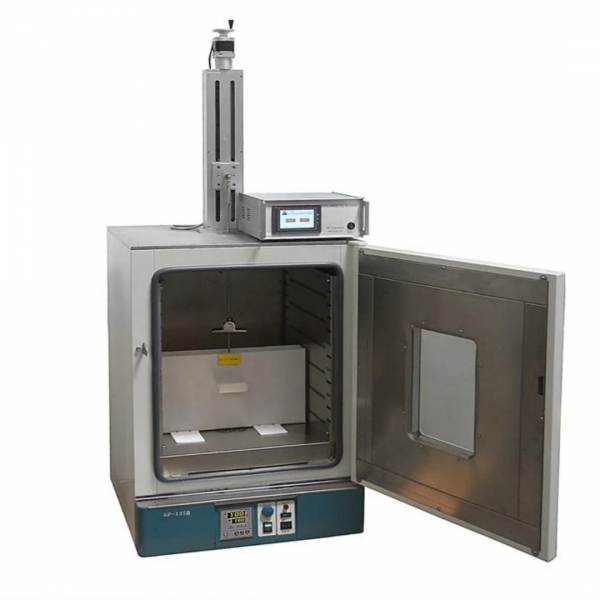

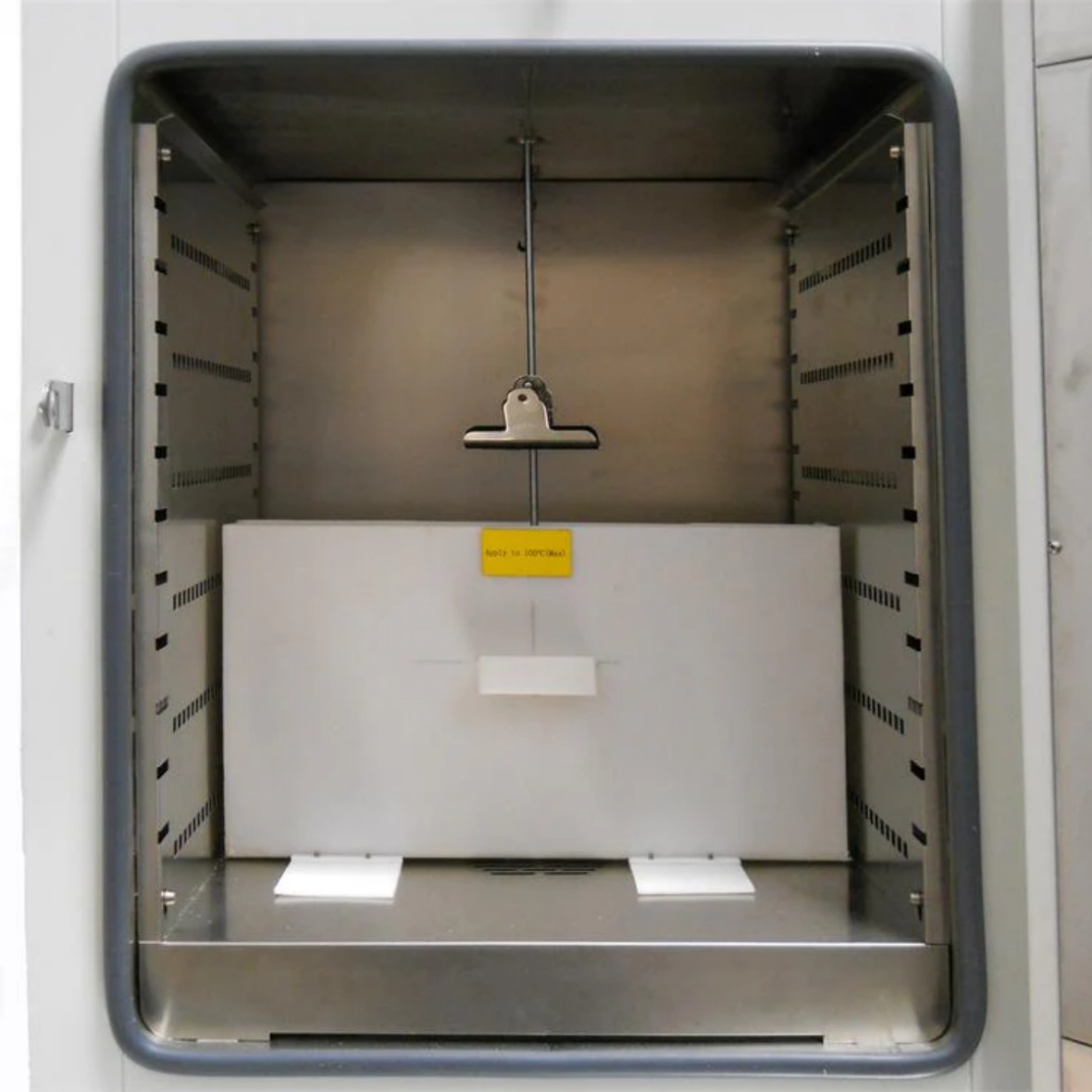

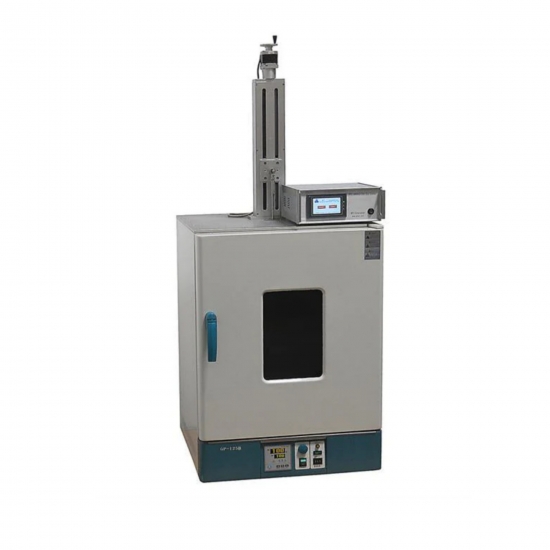

The TMAX-KJ013O Constant-Temperature Vertical Dip Coater is a high-precision millimeter-level lifting device designed for liquid-phase thin-film deposition under controlled temperature conditions. It is ideal for research institutions and laboratories specializing in thin-film material preparation.

This model features:

· PLC-based control system for precise operation

· High-precision stepper motor driving a lead screw transmission mechanism for smooth and accurate vertical movement

· Vertical dip-coating process allowing controlled immersion and uniform withdrawal speed, by constant-temperature drying to produce films of consistent thickness

· Compact and portable design, making it suitable for universities, research institutes, and industrial labs

Key Features

✔ 4.3-inch color touchscreen with an intuitive interface for easy operation, suitable for beginners
✔ Space-saving and cost-effective, optimized for laboratory environments

✔ PLC-controlled high-precision stepper motor ensures stable and highly accurate motion

Installation Requirements

Parameter

Specification

Power Supply

Single-phase AC220V 50/60Hz

Outlet Requirements

1× 10A national standard outlet<br>1× 16A national standard outlet

Grounding

Must be properly grounded

Circuit Protection

Requires 16A circuit breaker

Operating Environment

Temperature: 25°C ±15°C

Humidity: 55%RH ±10%RH

Main Technical Parameters

Parameter

Specification

Rated Power

50W

Operating Voltage

DC24V 3.75A (Standard: AC100-240V power adapter included)

Drive Motor

High-precision stepper motor

Speed Adjustment Range

1-200 mm/min (1mm increments)

Immersion Time

1-999 sec (1 sec increments)

Drying Time

1-999 sec (1 sec increments)

Lifting Stroke

1-270 mm (1mm increments)

Maximum Lifting Cycles

20 times

Maximum Substrate Size

400mm(L) × 230mm(W) × 1-10mm(T)

Maximum Immersion Depth

≤200 mm

Maximum Load Capacity

≤5.5 kg

Control Interface

4.3-inch color touchscreen

Machine Dimensions

636mm(W) × 680mm(D) × 1520mm(H)

Net Weight

≈75 kg (including oven)

Oven Specifications

Parameter

Specification

Power Supply

Single-phase AC220V 50/60Hz

Rated Power/Current

2.5 kW / 11.3A

Heating Method

Natural convection

Temperature Range

Room temperature to +200°C

Temperature Accuracy

±1.5°C

Timer Modes

Constant-temperature timer/Run timer (selectable)

Timer Range

0-9999 minutes/hours

Temperature Control

Dual digital display PID with 4-button setting

Temperature Display

PV (measured): Upper 4-digit display<br>SV (set): Lower 4-digit display

Temperature Sensor

PT100 thermocouple

Internal Dimensions

500mm(W) × 450mm(D) × 550mm(H)

Internal Volume

125L

Standard Accessories

No.

Accessory

Quantity

1

Control Box

1 pc

2

Coating Bath

1 pc

Notes

1. Power adapter specifications:

1. Input: AC100-240V 50/60Hz

2. Output: DC24V 3.75A

3. Actual power supply must match the label on the rear panel

2. Optional customization:

1. Single-phase AC110V 50/60Hz oven power supply available upon request

Additional Information

· All specifications are subject to change without prior notice

· Refer to product label for final confirmed specifications

· Custom configurations available for special requirements
