 Drying Oven

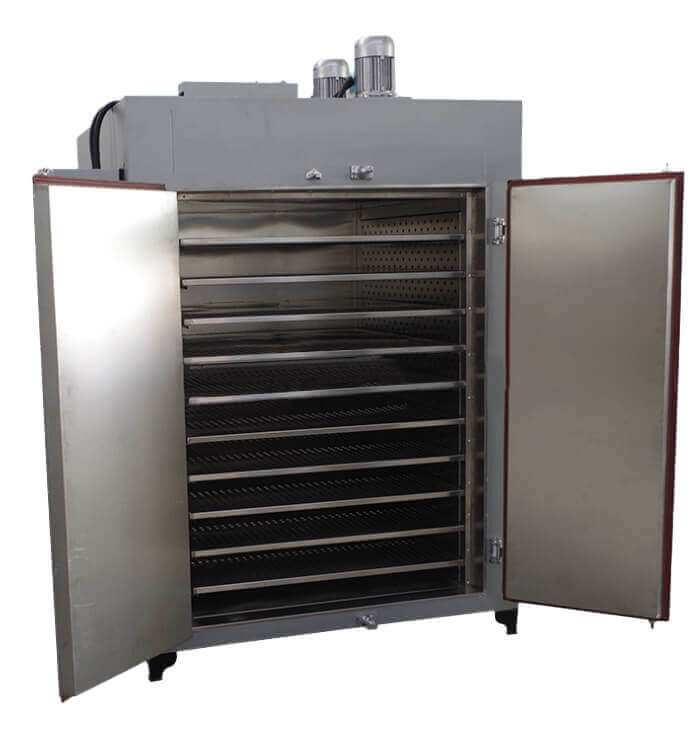

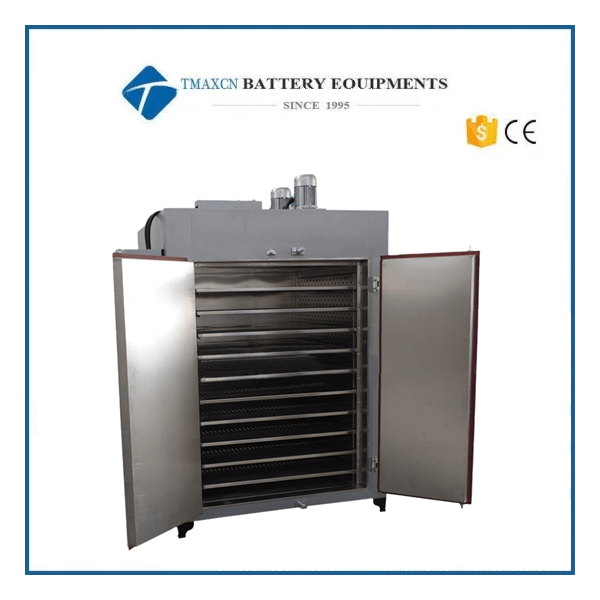

20C-250C 10 Layers High Temperature Heating Forced Air Circulation Drying Oven

  • Model Number:

    TMAX-TP10D
  • Dimension(L*W*H):

    1500mm * 1100mm * 1100mm
  • Compliance:

    CE Certified
  • Warranty:

    1 year
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

20C-250C 10 Layers High Temperature Heating Forced Air Circulation Drying Oven



Features

Industrial hot air drying oven can provide a stable test space for pre-heating, drying, changes about physics and chemistry testing. It supply precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution.



Product Characteristics

This oven can be customized according to box size, single door or double door design, shell with environmentally friendly metal paint spray overall beautiful and generous.

(We can customize an oven for you according to the baking process requirements of customers' materials)



Specifications

Temperature range

+ 20 ℃ - 250 ℃

Temperature rise speed

Rise from room temperature to 200 ℃ for about 35 minutes

Insulation performance

The outer wall temperature shall not exceed 45 ℃ (when the furnace temperature reaches 200 ℃)

Temperature control accuracy

± 1 ℃

Temperature uniformity

± 3 ℃

Power supply

380V / 50Hz

Equipment construction:

Color

Overall spraying of Matt amino paint, silver grey

Equipment positioning

Iron foot support at the bottom, and the height from the lower plane of the liner to the ground is 180mm

Inner chamber size

1500mm * 1100mm * 1100mm

Material placement

10 layers of stainless steel punching plate (can be extracted)

Heat source configuration

6 W-type heat pipes with metal sheath, in the top air duct

Circulation mode

Horizontal air supply, 2 sets of 750W motors

Air intake and exhaust

Air intake from fan shaft hole. Top vent, manual vent

Sheet metal structure

1.2mm stainless steel plate for inner tank, 1.2mm cold-rolled plate for outer shell, bending, splicing and welding

Framework structure

The whole 4-angle steel frame, the bottom 5-angle steel frame, the door frame 5mm thick sheet metal reinforcement

Insulation layer

90mm aluminum silicate fiber

Structure

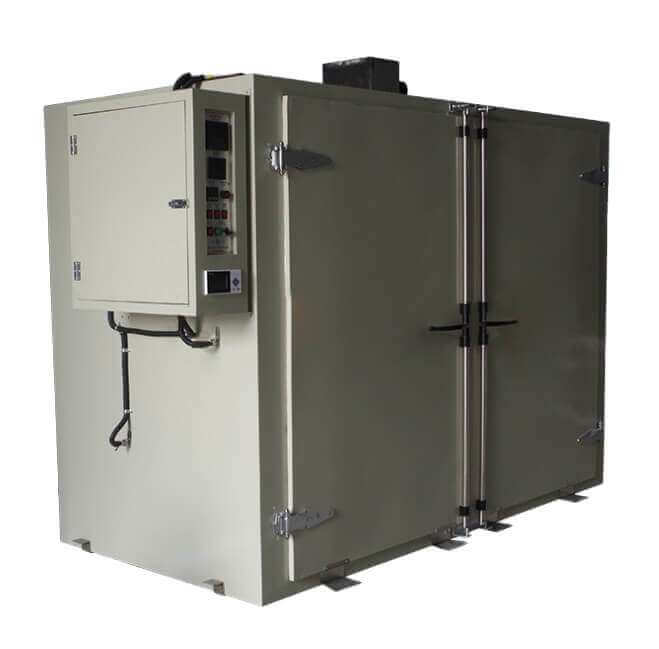

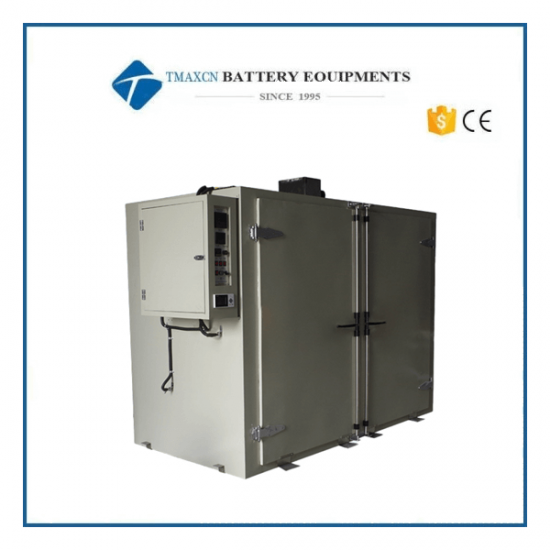

Double door, silicone strip seal, alloy hinge, rocker lock

Electrical control:

Dual digital PID intelligent temperature controller main control

Independent temperature measurement by the monitor, over temperature protection circuit to monitor the overall operation of the equipment to ensure the safety of the equipment and drying materials

Adopt SSR solid-state relay to turn on and off to control the temperature rise of electric heater

Equipped with 0-99.99 hour timer, which can be used for direct timing or temperature timing, and automatically cut off heating and alarm when the time is up

Air blast heating interlock protection circuit, that is, air blast before heating to prevent heater from dry burning

The phase sequence protector shall prevent the reverse operation of the fan caused by the reverse connection or lack of phase sequence

Heating circuit breaker to prevent accidents caused by overload and short circuit of heating circuit

Fan and control circuit breaker shall prevent overload and short circuit of fan and control circuit from causing accidents

The temperature recorder records the temperature curve of the working area in real time, which is used to analyze the material baking process (optional)
