 Drying Oven

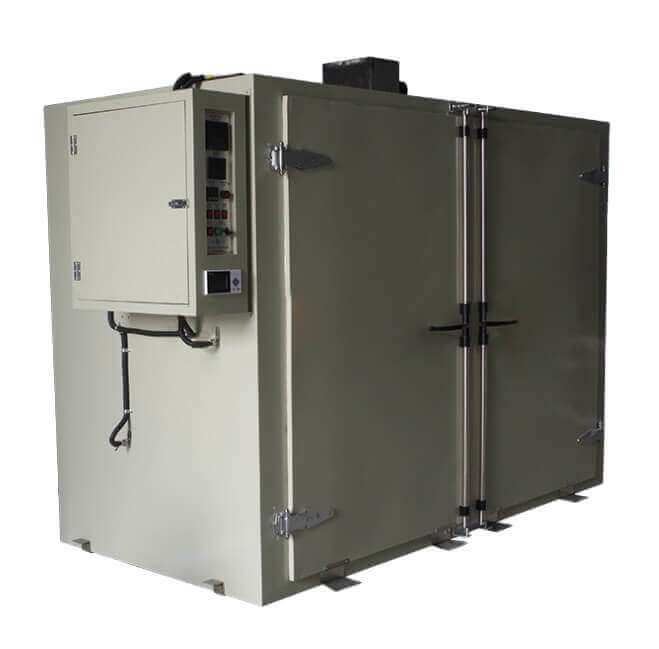

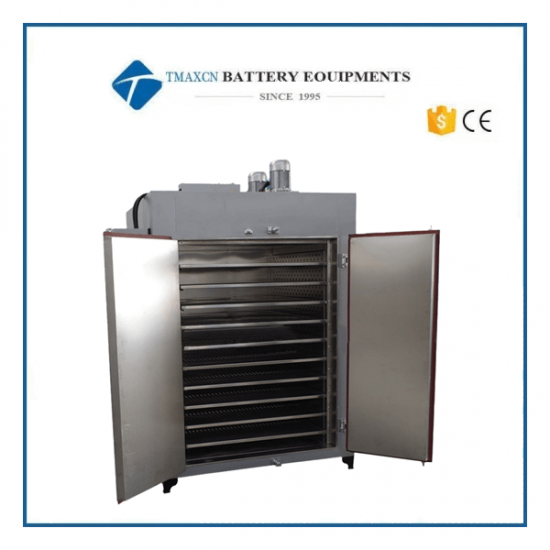

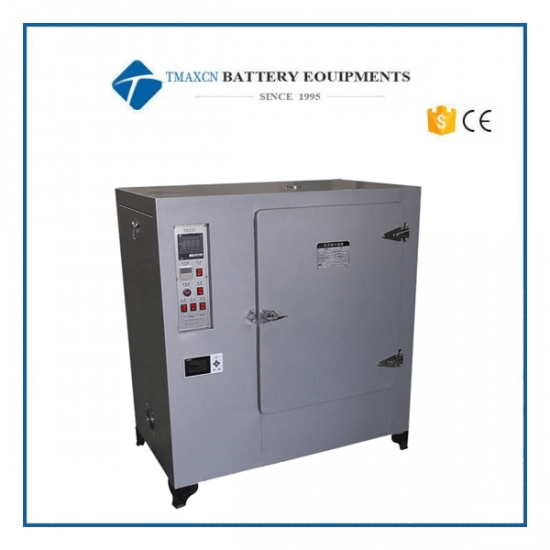

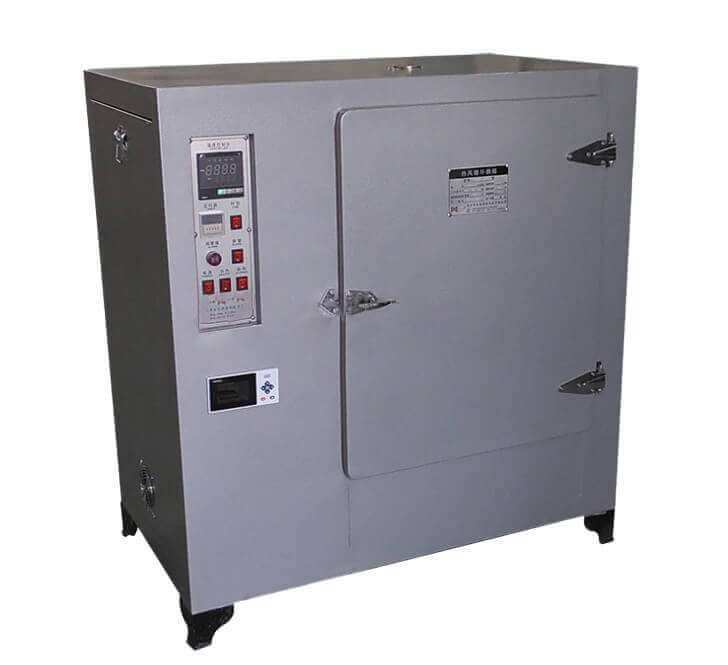

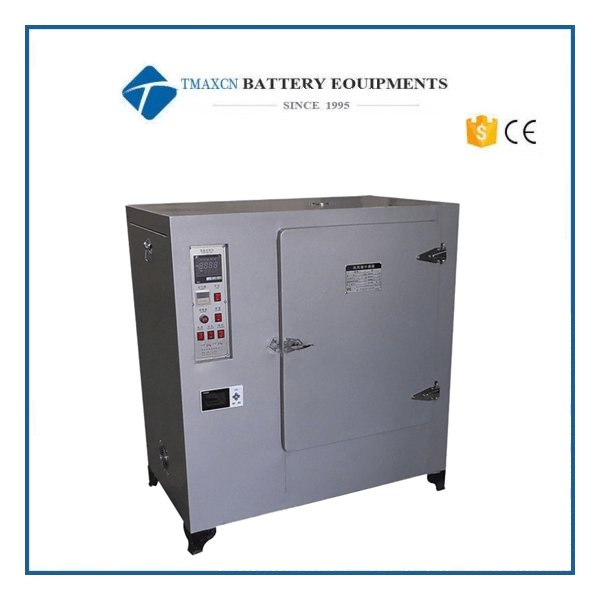

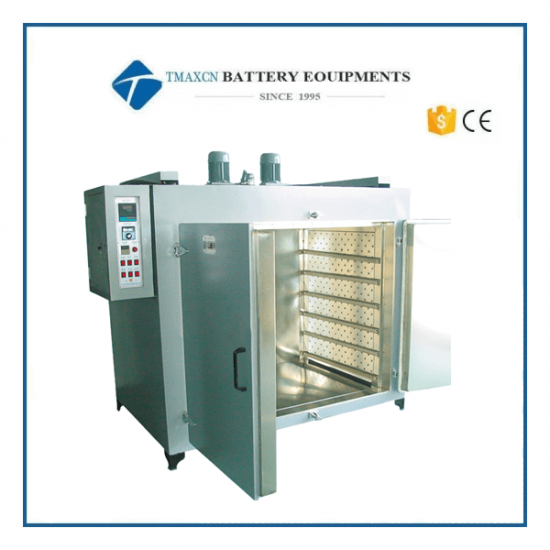

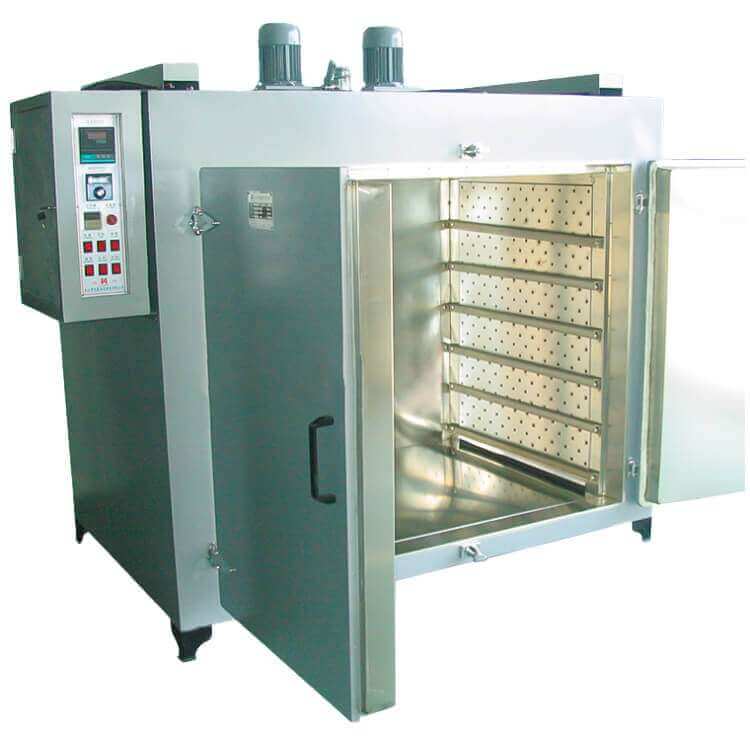

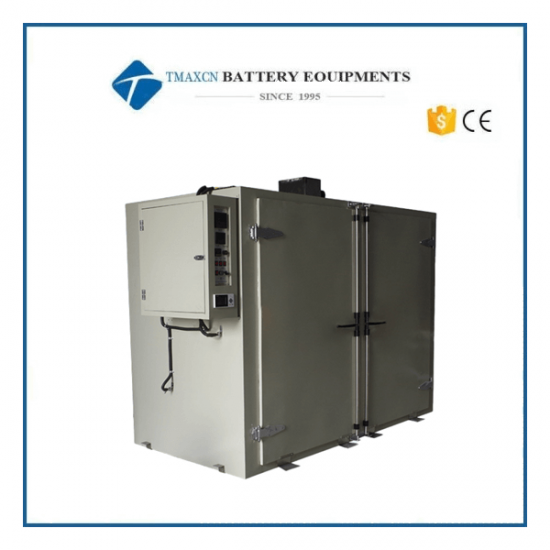

20C-300C High Temperature Industrial Drying Oven/Secondary Curing Oven

  • Model Number:

    TMAX-TP300D
  • Dimension(L*W*H):

    1300mm * 1520mm * 710mm
  • Compliance:

    CE Certified
  • Warranty:

    1 year
  • Shipping Port:

    Xiamen
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

20C-300C High Temperature Industrial Drying Oven/Secondary Curing Oven



Features

Industrial hot air drying oven can provide a stable test space for pre-heating, drying, changes about physics and chemistry testing. It supply precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution.



Product Characteristics:

This oven can be customized according to box size, single door or double door design, shell with environmentally friendly metal paint spray overall beautiful and generous.

(We can customize an oven for you according to the baking process requirements of customers' materials)



Specifications

Temperature range

+ 20 ℃ - 300 ℃

Temperature rise speed

Rise from room temperature to 300 ℃ for about 35 minutes

Insulation performance

The outer wall temperature shall not exceed 45 ℃ (when the furnace temperature reaches 200 ℃)

Temperature control accuracy

± 1 ℃

Temperature uniformity

± 3 ℃

Power supply

380V / 50Hz

Equipment construction:

Color

Overall spraying of Matt amino paint, silver grey

Equipment positioning

Iron foot support at the bottom, and the height from the lower plane of the liner to the ground is 380mm

Inner chamber size

1300mm * 1520mm * 710mm

Material placement

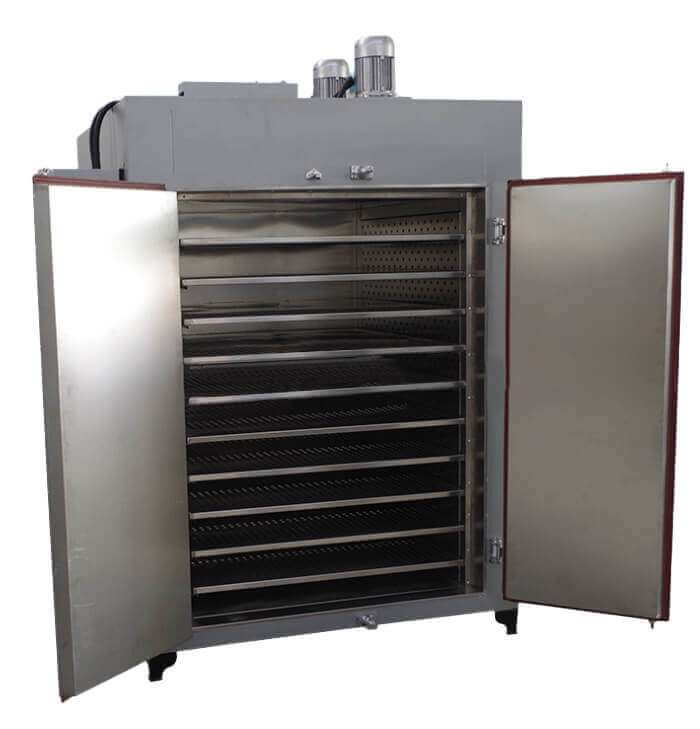

Equipped with two movable drying racks, each with 8 trays

Heat source configuration

3 W-type heat pipes with metal sheath, in the top air duct

Circulation mode

Horizontal air supply, 1 set of  370W motor

Air intake and exhaust

Air intake from fan shaft hole. Top vent, manual vent

Sheet metal structure

1mm stainless steel plate for inner tank, 1mm cold-rolled plate for outer shell, bending, splicing and welding

Framework structure

The whole 4-angle steel frame, the bottom 5-angle steel frame, the door frame 5mm thick sheet metal reinforcement

Insulation layer

90mm aluminum silicate fiber

Structure

single door, silicone strip seal, alloy hinge, rocker lock

Electrical control:

Dual digital PID intelligent temperature controller main control

Independent temperature measurement by the monitor, over temperature protection circuit to monitor the overall operation of the equipment to ensure the safety of the equipment and drying materials

Adopt SSR solid-state relay to turn on and off to control the temperature rise of electric heater

Equipped with 0-99.99 hour timer, which can be used for direct timing or temperature timing, and automatically cut off heating and alarm when the time is up

Air blast heating interlock protection circuit, that is, air blast before heating to prevent heater from dry burning

The phase sequence protector shall prevent the reverse operation of the fan caused by the reverse connection or lack of phase sequence

Heating circuit breaker to prevent accidents caused by overload and short circuit of heating circuit

Fan and control circuit breaker shall prevent overload and short circuit of fan and control circuit from causing accidents

The temperature recorder records the temperature curve of the working area in real time, which is used to analyze the material baking process (optional)
