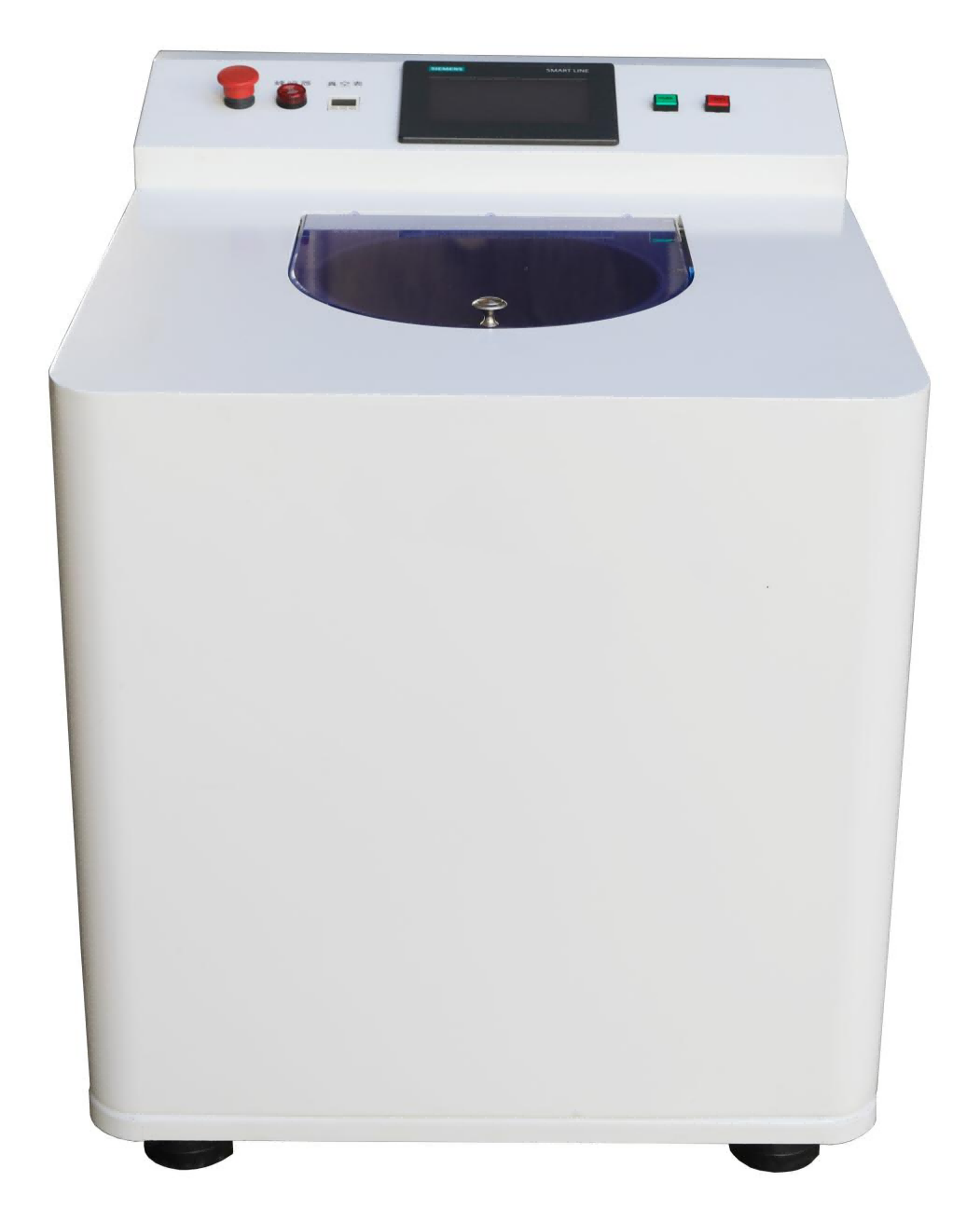

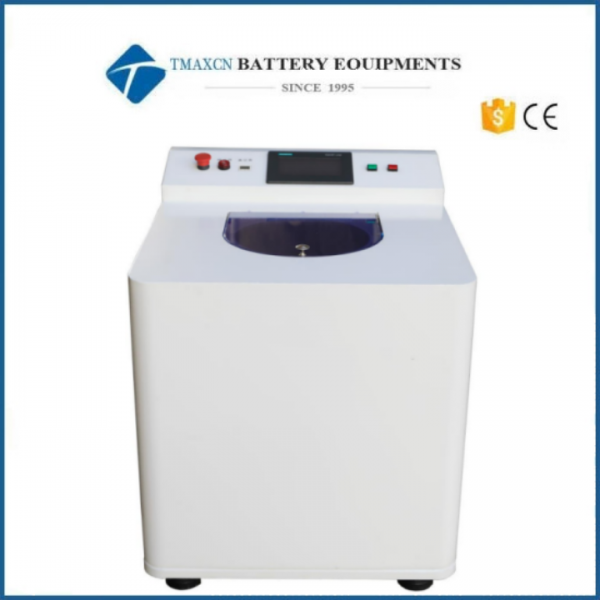

3.2L 2.6L 960ML Double Cups Vacuum Mixing And Defoaming Machine Specially Designed for Slurry Tanks

3.2L 2.6L 960ML Double Cups Vacuum Mixing And Defoaming Machine Specially Designed for Slurry Tanks

Summarize:

Dimensions: L915*W730*H920 Weight: 220KG

Vacuum Stirring Defoaming Machine :

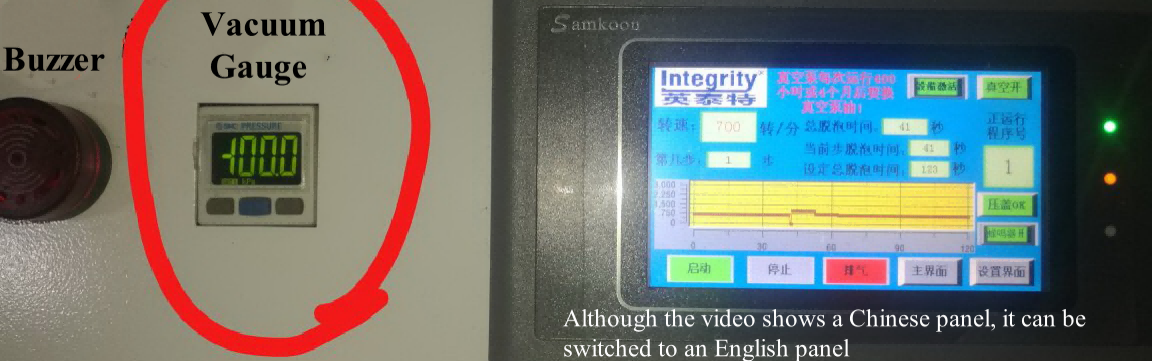

High vacuum degree, long service life (a machine that is well maintained and serviced with regular oil replacement within 5 years will maintain a vacuum degree of no less than 5%, the vacuum degree should be maintained below -95 Kpa, the more negative the vacuum degree, the higher it is)

Easy maintenance: The entire rotating arm is made of interchangeable materials, it is easy for customers to replace parts themselves, and they can also send the parts back to our company for replacement. After replacing the parts, the effect is as good as that of a new machine.

Features of the Yingtai Te Stirring Deaerator :

Main shaft: Made of Swiss WABCO S136 mirror finish steel, after multiple heat treatments, the overall hardness reaches HRC 62 degrees. The shaft is ground as a whole, and the total runout is no more than 1 micrometer. The sealing surface is further ground to achieve a surface roughness of 0.02 um with a mirror finish effect, having an extremely low friction coefficient, and being highly self-maintainable and wear-resistant, causing minimal wear to the sealing ring, achieving an extremely long service life and high sealing performance. This is one of the reasons why many of our customers maintain a negative pressure of -98 Kpa or above even after using our product for several years.

Sealing ring: Made of German Bayer company's super wear-resistant sealing ring, with a wear resistance capacity that can reach 40 M/S linear speed. The linear speed of our equipment is only 4 M/S at 2000 revolutions. It can withstand a pressure of 20 KG/c㎡. This is one of the reasons why many of our customers maintain a negative pressure of -98 Kpa or above even after using our product for several years.

Vacuum pump: A pump with international advanced technology, modified with forced oil circulation lubrication, featuring good lubrication, low wear, and long service life. This is one of the reasons why many of our customers maintain a negative pressure of -98 Kpa or above even after using our product for several years. This oil pump has obtained a national patent (Patent Number: ZL2012.2.0084434.0)

Gear: Adopting a car spiral bevel gear structure, running smoothly with low noise, and having a long service life.

Arm: Using an integral arm, all made from imported American aviation magnesium aluminum 7075 through overall processing, ensuring product accuracy and long-term stability, with a center error no greater than ±0.02. High interchangeability, and interchangeable arm pieces of the same model can be assembled arbitrarily, making maintenance convenient.

Optional：

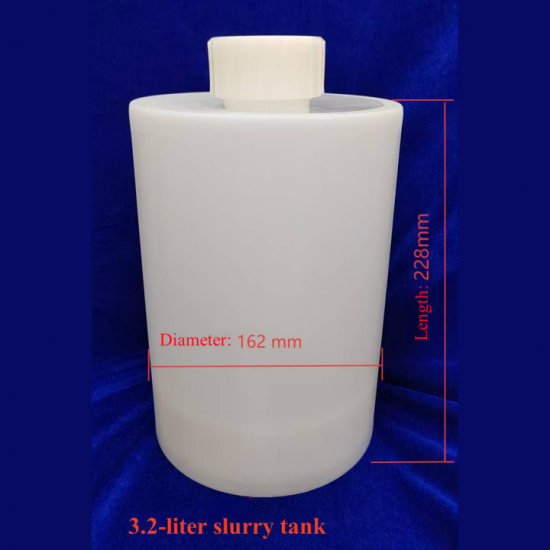

1. 3.2-liter slurry tank

Two 3.2 L slurry tank clamps are provided

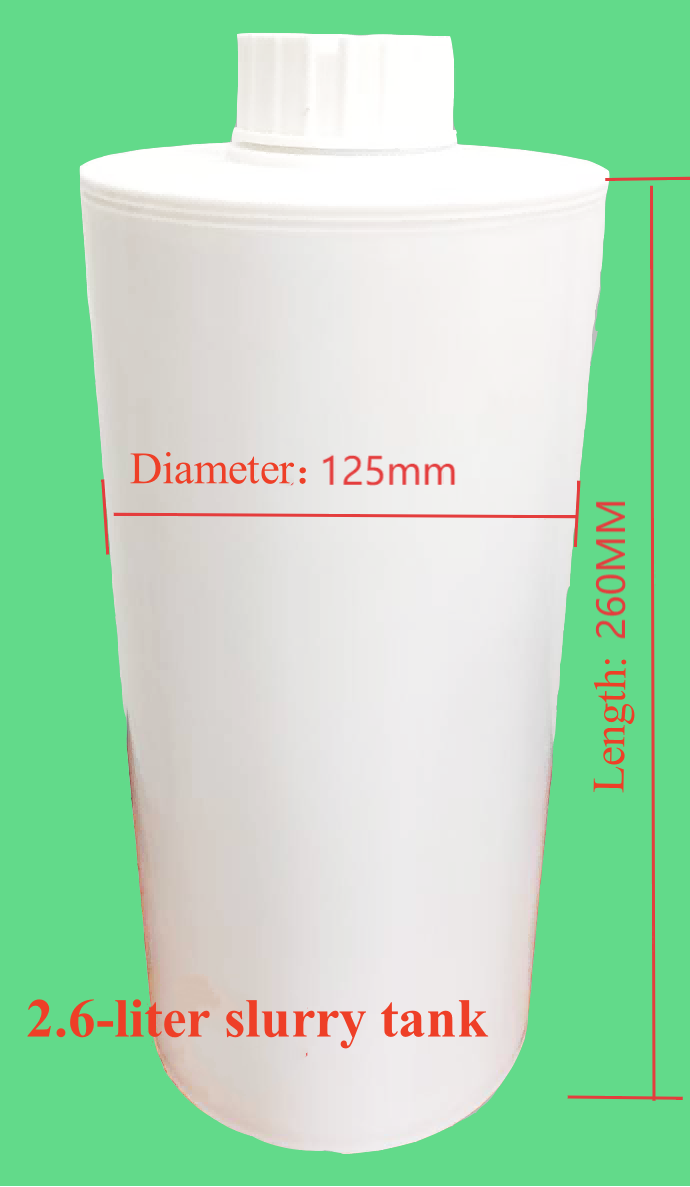

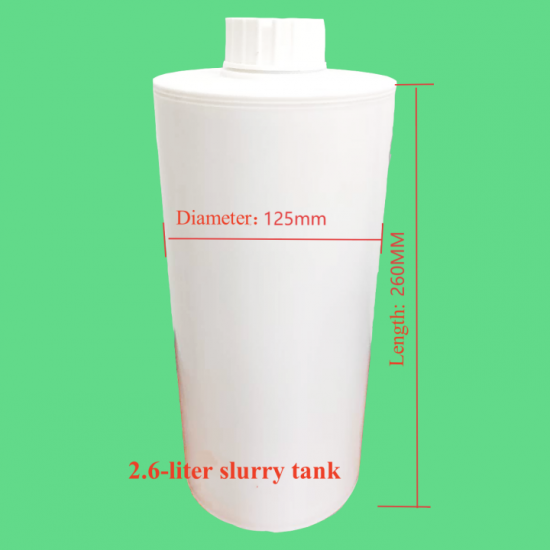

2. 2.6-liter slurry tank

Two 2.6 L slurry tank clamps are provided

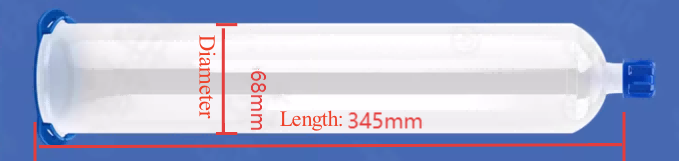

3. 960ML(32-ounce) material drum

Two 960 ML material bucket clamps are provided

(Note: The above options only provide bucket clamps of matching materials. The material bucket is not included.)
