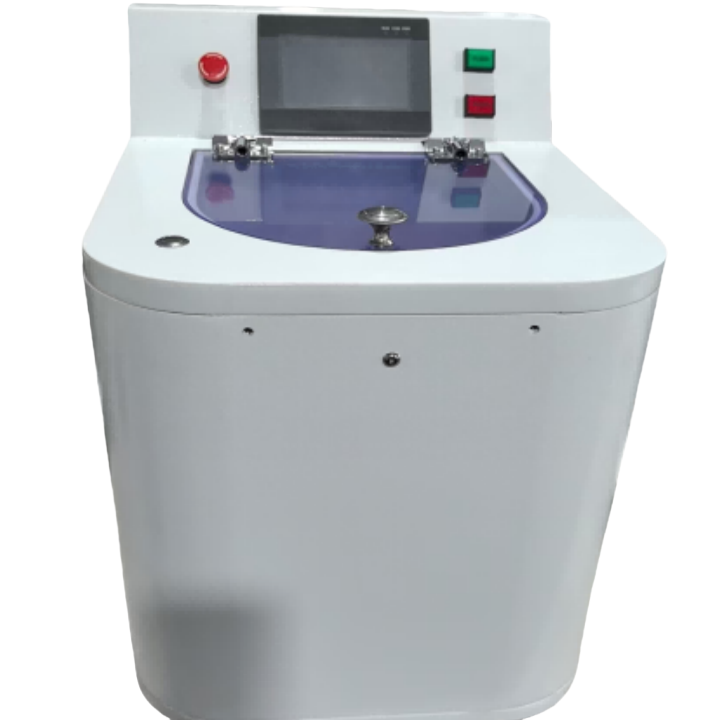

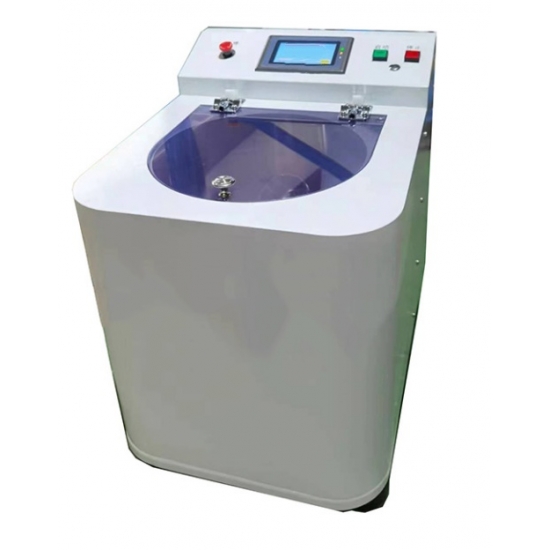

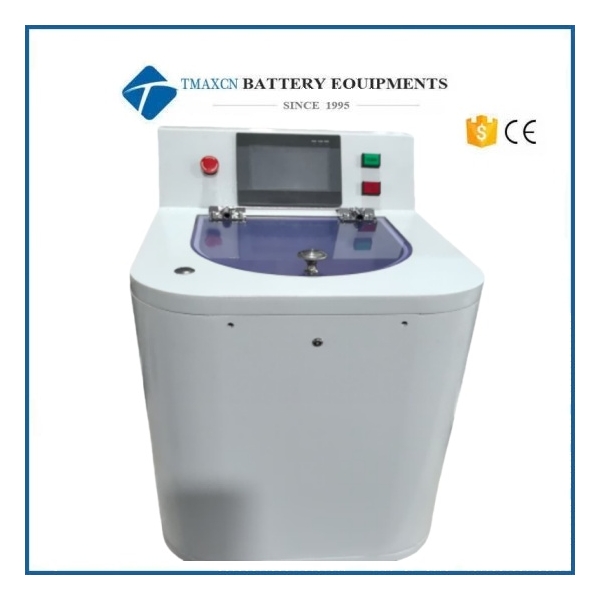

300ml Laboratory Double Cup Planetary Gravity Stepless Speed Adjustment Mixer

300ml Laboratory Double Cup Planetary Gravity Stepless Speed Adjustment Mixer

Model:  TMAX-XXH-300S

Usage: Suitable for the dispersion, mixing and defoaming of multi-component materials (such as silicone, multi-component epoxy resin, etc.).

Standard containers: 300ML (HDPE φ78×90) or 150ml (HDPE φ60*72);

Maximum processing capacity: 50g - 400g * 2; ≤ 150mL * 2;

Rotation: 100 - 2500rpm stepless speed adjustment, adjustable by user's actual needs, with an increment of 1rpm;

Self-rotation: Fixed speed ratio 0.65;

Set time: 0 - 3000S * 5 (a total of five steps), with an accuracy of 1s;

Parameter storage capacity: 5 groups;

Shaft bearings: Japanese NSK bearings;

Control system: Human-machine interaction, Chinese interface, touchscreen operation;

Balance adjustment: Adjust the position of the moving counterweight block on the rotor;

Transmission method: Gear transmission;

Working principle: Self-rotation and planetary rotation without wings, using centrifugal gravity method;

Alarm device: Detection of the cover not being closed during operation;

Safety protection: Locking of the cover during operation, stopping the work when the cover is opened;

Applicable temperature and humidity: 10 - 40 ℃; 20 - 80%RH (without dense foggy moisture, it is acceptable);

Voltage: AC220V ± 5%; 1-Phase; 50 - 60Hz;

Power: Rated power of the main unit 500w, standby power around 15W

Overall dimensions: L410×W528×H520mm;

Main unit weight: 35Kg.

Equipment features:

The highest centrifugal gravity generated by self-rotation and planetary rotation is nearly 400G, achieving strong dispersion and defoaming and without spiral blades.

It realizes stirring and dispersion within the container and no need for cleaning.

It would not contaminate the materials or damage the properties of the materials (especially fiber materials).

Human-machine interaction, convenient operation; optimized design of ultra-small, ultra-light, and ultra-quiet.
