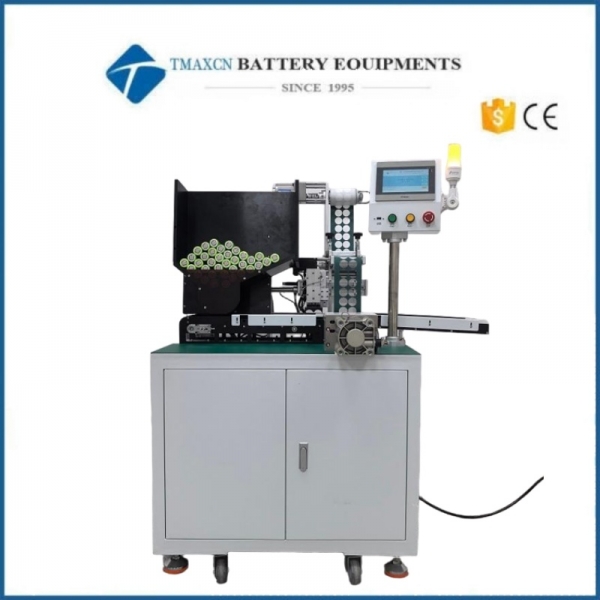

32140/33140 Cylindrical Cell lithium Battery Labling Insulation Paper Sticking/Pasting Machine
Model Number:
TMAX-MMBType:
AutomaticDimension(L*W*H):
L1050*W710*H1580mmCompliance:
CE CertifiedWarranty:
One year limited with lifetime supportPlace of Origin:
ChinaShipping Port:
Xiamen portPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 18659217588
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Nickel Strip Laser Removal Machine for Battery PackNext:
10 Channels Automatic Cylindrical Cell Sorting Machine for 32140 33140 38121 40135 With PC
32140/33140 Cylindrical Cell Lithium Battery Labling Insulation Paper Sticking/Pasting Machine
Function Description：
Paste insulation paper on the positive pole to prevent the short circuit.
One machine is compatible for cell size 32140/33140.
Speed is about 4000 pcs per hour.
Feature：
Equipment with fault alarm.
The equipment is easy to debug, operate and easy to replace molds.
High efficiency and low cost.
Note：
The machine can be shared, one standard machine can be used for 32140/33140 by changing the replacement parts.
Technical Parameters：
Input gas source |
0.4-0.8Mpa |
Function Style |
Stepper drive with pneumatic |
Input voltage |
AC220V, 50HZ |
Sticker matrials |
Barley paper or PVC material |
Sticker matrials size |
Suitable for Barley paper size 100mm |
Cushioning power |
0.75KW frequency conversion motor debugging, equipped with buffer power to ensure that the bat |
Power |
Electric power or pneumatic |
Control instrument |
7.5feet contact screen,PLC programming machine and step motor |
Applicable Cell size |
32140/33140 cells |
Producivity |
4000pcs/h; 2pcs per punch |
External dimensions |
L1050*W710*H1580mm |
Weight |
220kg |
Product Details：
It can connect with 5/11 channels sorting machine for 18650-32700 cells：
It can also connect with 5/10 channels sorting machine for 32140/33140 cells：
