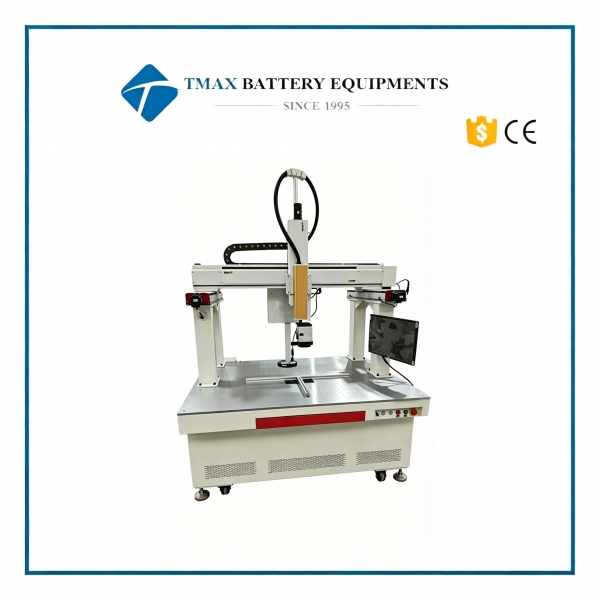

Nickel Strip Laser Removal Machine

Nickel Strip Laser Removal Machine for Battery Pack

  • Model Number:

    TMAX-XR-FB-100W

  • Dimension(L*W*H):

    1320x880x1450mm

  • Net Weight:

    300kg

  • Compliance:

    CE Certified

  • Warranty:

    One years limited warranty with lifetime technical support

  • Place of Origin:

    China

  • MOQ:

    1

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

Nickel Strip Laser Removal Machine for Battery Pack



1. Application Scope

▷ Applied for nickel tab cutting of 1860 and other cylindrical battery packs.



Details:

l Incoming Material: Regularly arranged cylindrical battery packs

l Welding Material: Nickel or nickel-plated steel (≤ 0.15 mm)

l Cutting Method: Module motion cutting

 Note: If the nickel strip thickness exceeds 0.15 mm, the battery pack needs to pass through the machine twice until the nickel strip can be peeled off.



2.Equipment Welding Process Flow

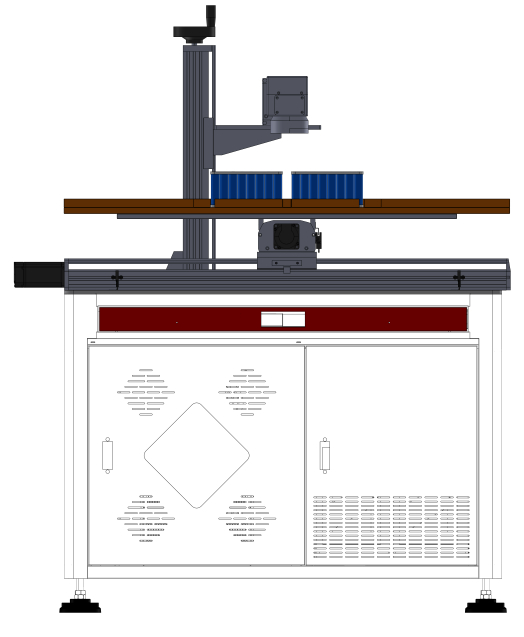

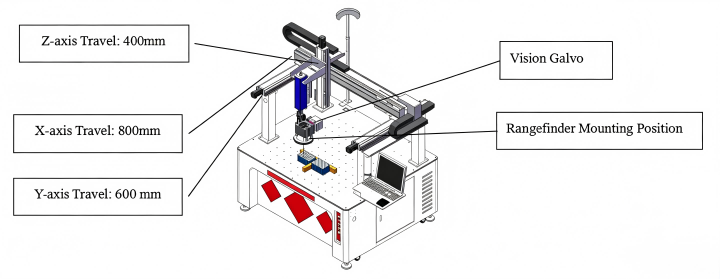

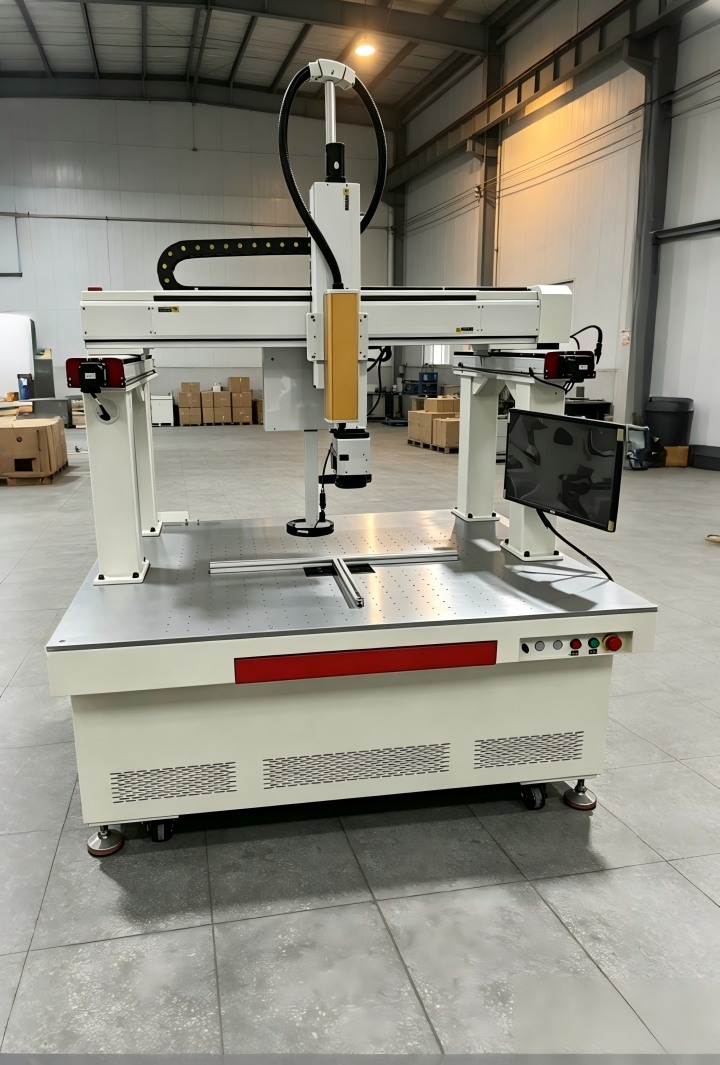

2.1 Equipment Axis View

2.2 Equipment Dimension Overview



2.3 Main Configuration List

Component Name

Specification / Model

Remarks

Laser

Chuangxin 100W

1 set

Galvo

10-spot high-speed digital scanning

1 set

Vision System

XR-CCD6.0

1 set

Positioning System

Vision Positioning

1 set

Focusing Lens

F=160mm, 1064nm

1 pc

Computer

Industrial PC with 19" LCD

1 set

XYZ Axis Travel

800×600×400 mm (effective)

1 set

Precision Sheet Metal Cabinet

1600×1300×1650 mm

1 set

Vision Camera

Hikvision 12MP

1 set

Rangefinder

Panasonic HGC-1100

1 set



2.4 Equipment Technical Parameters

Parameter

Specification

Model

XR-FB-100W

Laser Power

100W

Laser Wavelength

1064 nm

Beam Quality

M² < 1.5

Laser Output Power

1%–100%, continuously adjustable

Laser Output Frequency

1%–50 kHz

Cutting Range

1000 × 250 × 200 mm

Repeatability

±0.01 mm

System Operating Environment

Windows XP

Operating Temperature

10℃–38℃

Power Requirement

220V / Single Phase / 50Hz / 60A

Machine Weight

≈200 kg



3. Equipment Operating Environment

l Ambient temperature: 15℃ – 40℃

l Humidity: 40% – 80%, non-condensing

l Power network: AC 380V / 50Hz, voltage fluctuation within ±5%, with compliant grounding

l Areas with voltage fluctuation exceeding 5% should be equipped with voltage stabilizers

l Avoid strong electromagnetic interference; no radio transmission stations nearby

l Foundation vibration amplitude: <50 μm, acceleration <0.05g

l Environment should be clean, free of smoke, and without metal grinding dust

l In some environments, anti-static flooring and additional shielding are recommended





Nickel Strip Laser Removal Machine

Nickel Strip Laser Removal Machine
