4-Position Angle Adjustable Dip Coater Machine

Model Number:
TMAX-KJ04A
Compliance:
CE Certified
Warranty:
One Year limited warranty with lifetime support
Shipping Port:
Xiamen
MOQ:
1
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
5 days

WhatsApp : +86 18659217588
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Product Details

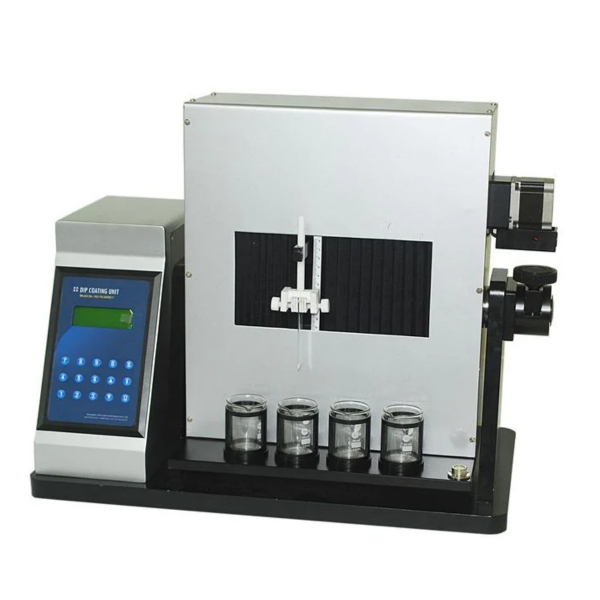

4-Position Angle Adjustable Dip Coater Machine

Product Description

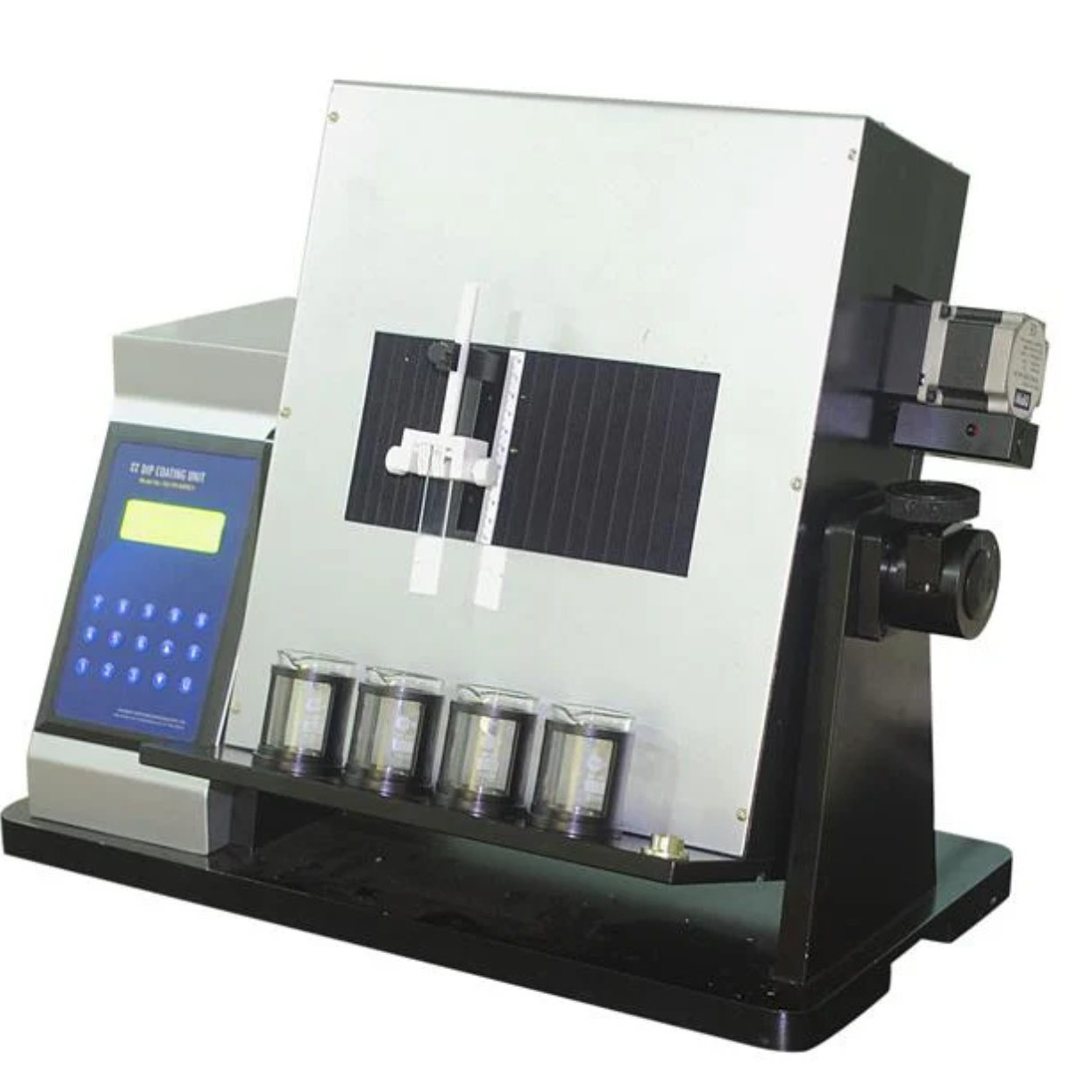

The TMAX-KJ04A is an Angle Dependent Dip Coating unit designed for nanolayer deposition on substrates by controlled immersion in coating solutions. The system allows angular variation from 0° to 45° with independent parameter control for each of the four beaker stations.

Operating Principle
The substrate is withdrawn from coating solution at a precisely controlled angle, simultaneously coating both surfaces with differential film thickness. This method reduces required coating steps to achieve desired thin film properties.

Technical Specifications

Category	Specification
Model Number	Lith-KJ04A
Coating Stations	4 independent
Angle Adjustment	0° - 45°
Actuator Type	Servo motor
Drive Mechanism	Lead screw
Dip Duration	0-99 s/min/h
Withdrawal Speed	2-9000 micron/sec (max)
Number of Dips	1-999 programmable
Sample Holder	Standard included
Beakers	Four 150ml glass beakers included
Power Requirements	208-240VAC,50/60Hz (110V available)
Max Power Consumption	800W (with heater)
Max Stroke Length	75mm
Control System	• LED display with speed control • 5 programmable memory slots • RS232 port for PC connection • Included operation software (Windows 8 compatible)
Certification	CE Certified

Application Guidelines
• For optimal film quality, substrates should be pretreated with plasma cleaning
• Ultrasonic dispersion of nanomaterials or solution homogenization is recommended
• Compact design allows operation within gloveboxes for controlled atmosphere processing
