Heat Press Machine

400mm Roller Heat Press Machine For Battery Anode Material

  • Model Number:

    TMAX-HC-HRP

  • Input Power:

    10KW

  • Dimension(L*W*H):

    900 * 1110 * 1350 mm

  • Compliance:

    CE Certified

  • Warranty:

    One years limited warranty with lifetime technical support

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

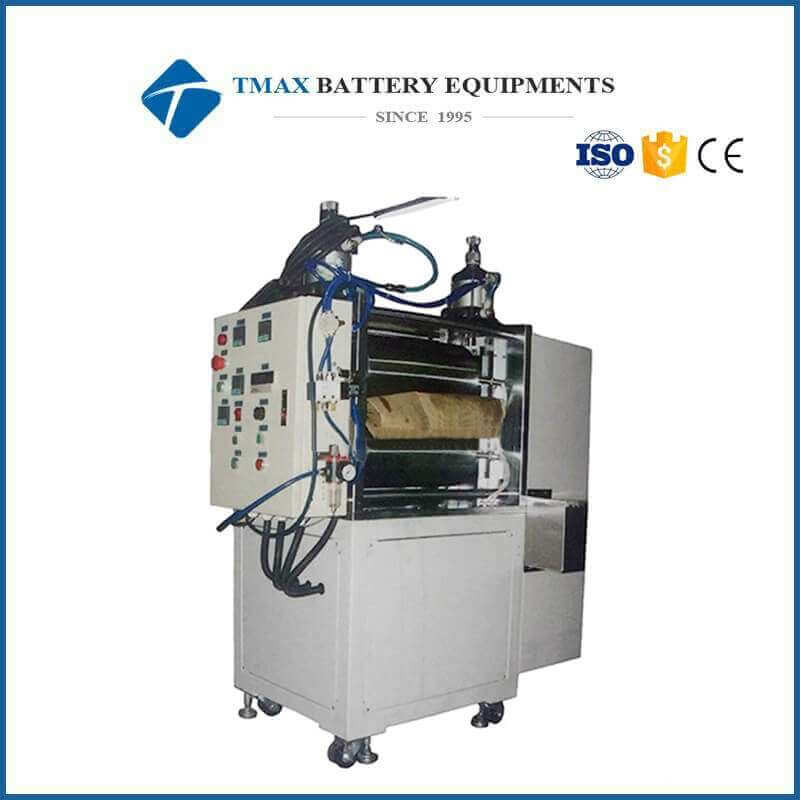

400mm Roller Heat Press Machine For Battery Anode Material


Function:
The machine is used for battery anode material and Cu or AL mesh substrate temperature composite.

The machine is used for battery anode material and Cu or AL mesh substrate temperature composite.
Basic configuration:
1. Imported Gear Motor
2.AirTAC cylinder and solenoid valve.
3.Composite roll: φ200x400
4.Imports of non-contact temperature sensing

5.Iimport temperature Controller.


Features:
1.Compound main roller surface roughness :0.2
2.Compound main roller concentricity: ± 0.007mm.

3.Compound main roller cylindricality: ± 0.007mm.


Power

Three-phase AC380V, 50HZ;

 Button light and electromagnetic valves AC 220V;

 Motors 380V;

 Switchboard power of about 10KW;

Size

900 (L) * 1110 (W) * 1350 (H)

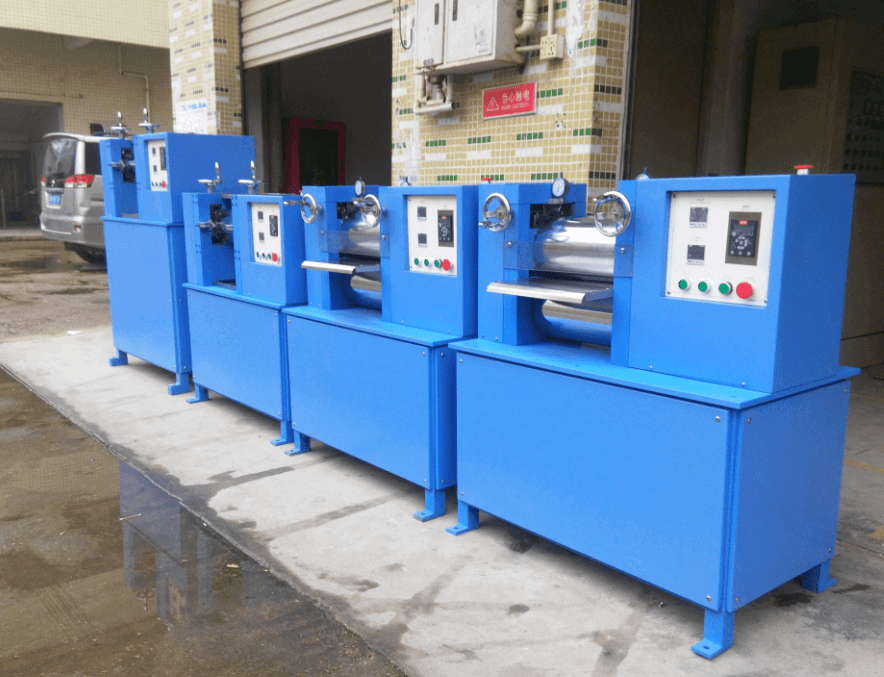

Roller Heat Press Machine

heat roll press

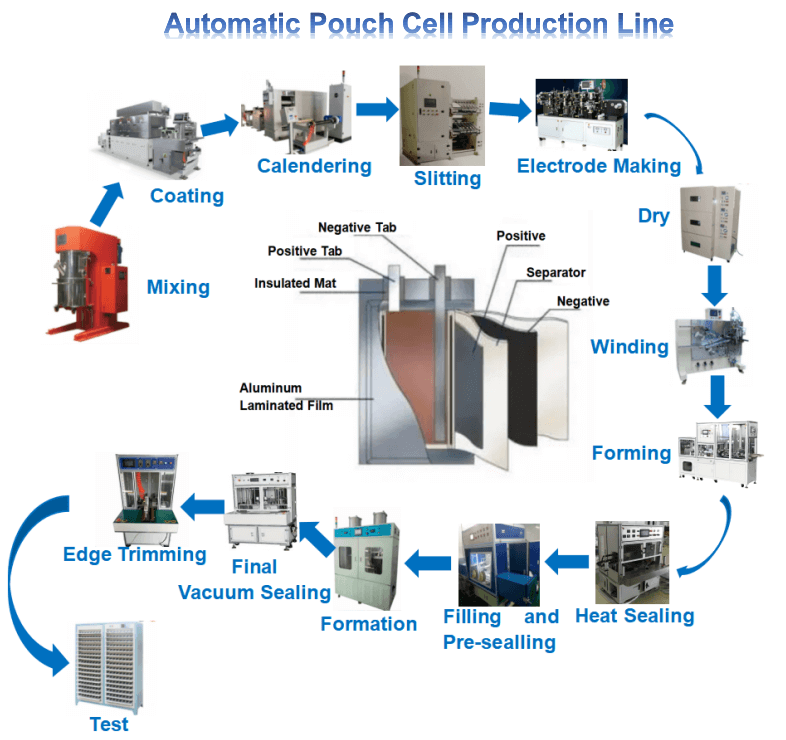

Pouch Cell Production Line
