Automatic Coating Machine

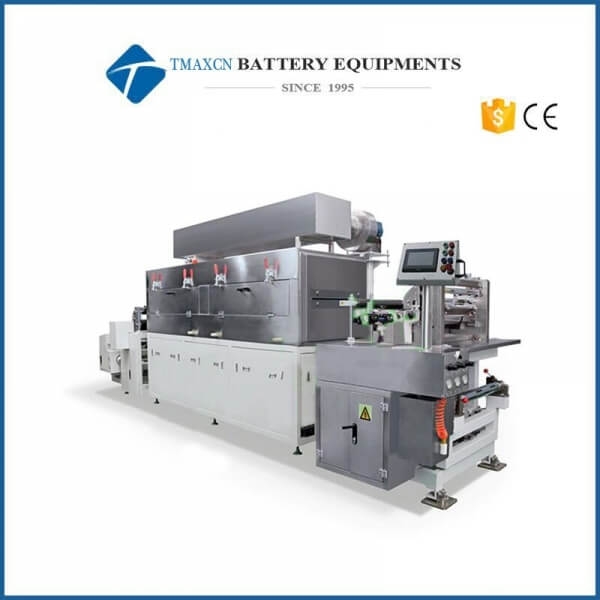

Lithium ion Battery Continuous Automatic Coating Machine

  • Model Number:

    TMAX-SY300J
  • Dimension(L*W*H):

    Max electrode width: 300-400mm
  • Compliance:

    CE Certified
  • Warranty:

    Two Years limited warranty with lifetime support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

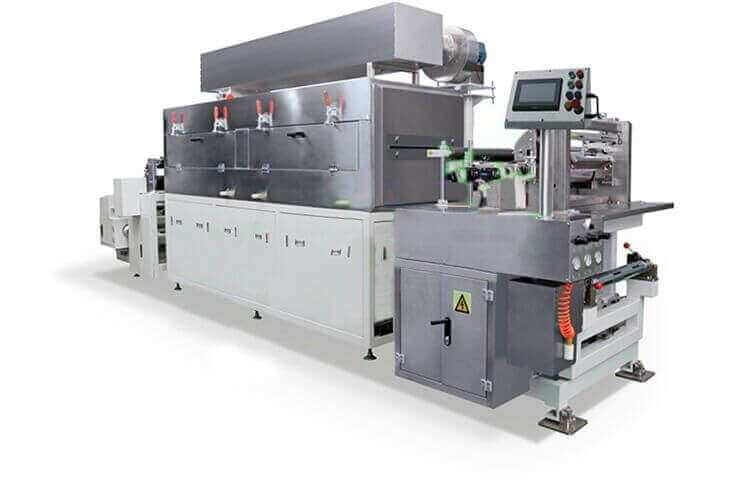

Lithium ion Battery Continuous Automatic Coating Machine


SPECIFICATION

TMAX-SY300J lithium battery coating machine  is a single face continuous coating machine mainly used for Slurry drying process of lithium battery electrode coating. The battery coating machine adopts continuous coating mode, is mainly used for lithium battery pilot scale production line.


Model

Lithium ion Battery Coating Machine TMAX-SY300J

Source voltage

AC 220V/110V, 50HZ/60HZ

Power

28000W

Warranty

One Year limited warranty with lifetime support

Max electrode width

300-400mm

Configuration

Put volume (with tension adjustment), coating, drying box 6m, main drive,

winding (with tension, rectifying);

Winding rectifying control precision

≤± 0.2mm

Baking oven

Stainless steel, 2M/section,

Dry temperature : RT-150, adjustable, With accuracy ±3

Coating speed

0-5m/min, adjustable

Coating accuracy

≤±0.003mm

Control pressure

0-25N, adjustable

Air compression

0.5-0.7MPa

Coating mode

Single face continuous coating

Application foil

Aluminum foil, Copper foil

Advantage

1 This machine is single surface continuous coating machine,

2 Drying oven is heated hot air circulation structure

3 Equipped with tension control, winding rectifying automatic control

4 All parts contacted with electrode with chrome plated or stainless steel corrosion resistance



Coating Machine

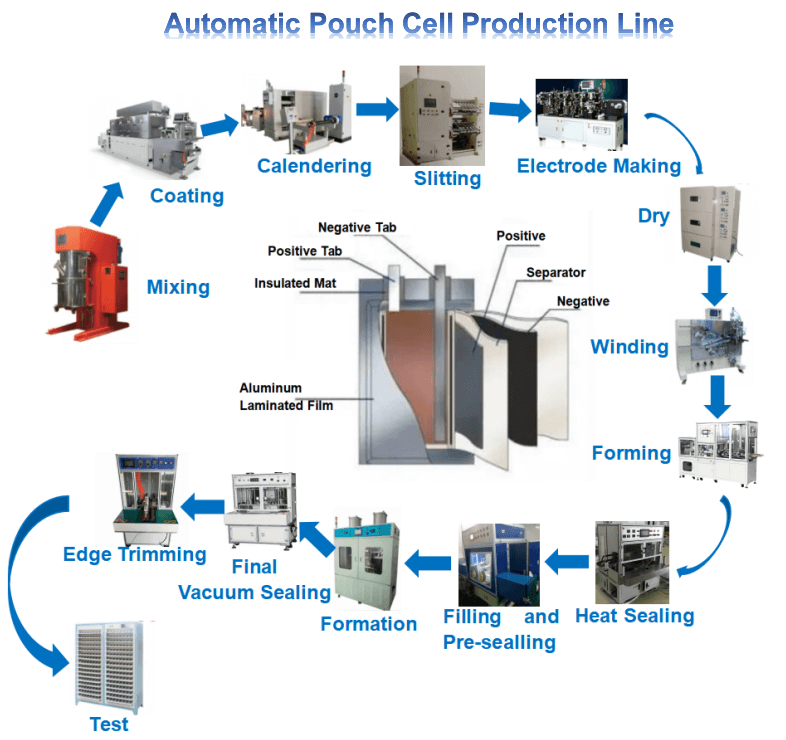

 pouch cell making machine
